8.7.16 CAN Trigger
This series oscilloscope can trigger on the start of a frame, end of a frame, frame of
the specified type (e.g. Remote, Overload, Data), or error frame of the specified type
(e.g. Answer Error, Check Error, Format Error) of the CAN signal.

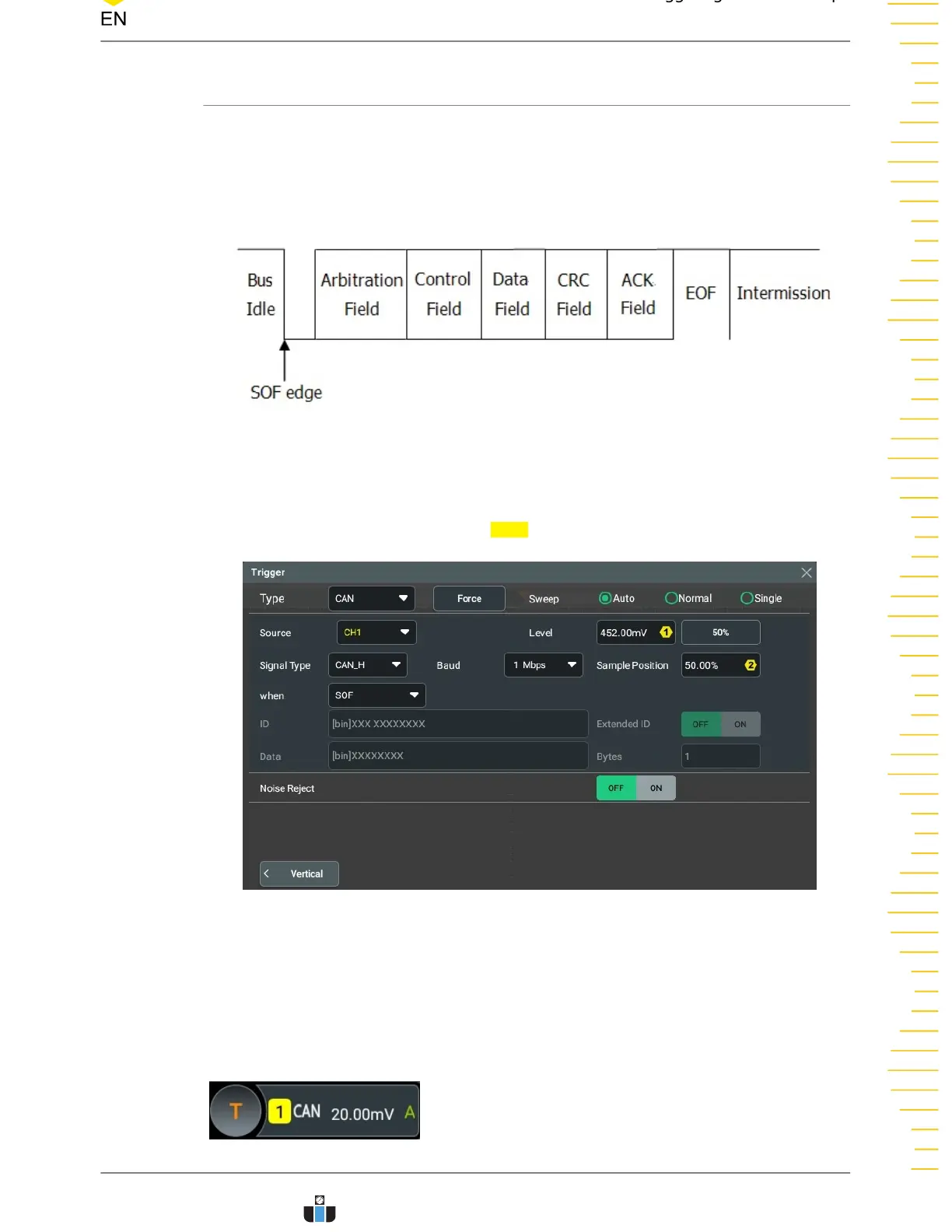

The data frame format of the CAN bus is as shown in the figure below.
Figure 8.32 Data Frame Format of the CAN Bus
Trigger Type
Click or tap the drop-down button of Type to select "CAN".
Figure 8.33 CAN Trigger Setting Menu
After a trigger type is selected, the current trigger setting information (including
trigger type, trigger source, and trigger level) is displayed in the trigger information
label at the top of the screen, as shown in the figure below. The information will
change based on the trigger settings.
Triggering the Oscilloscope
Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved. DHO900 User Guide
105
