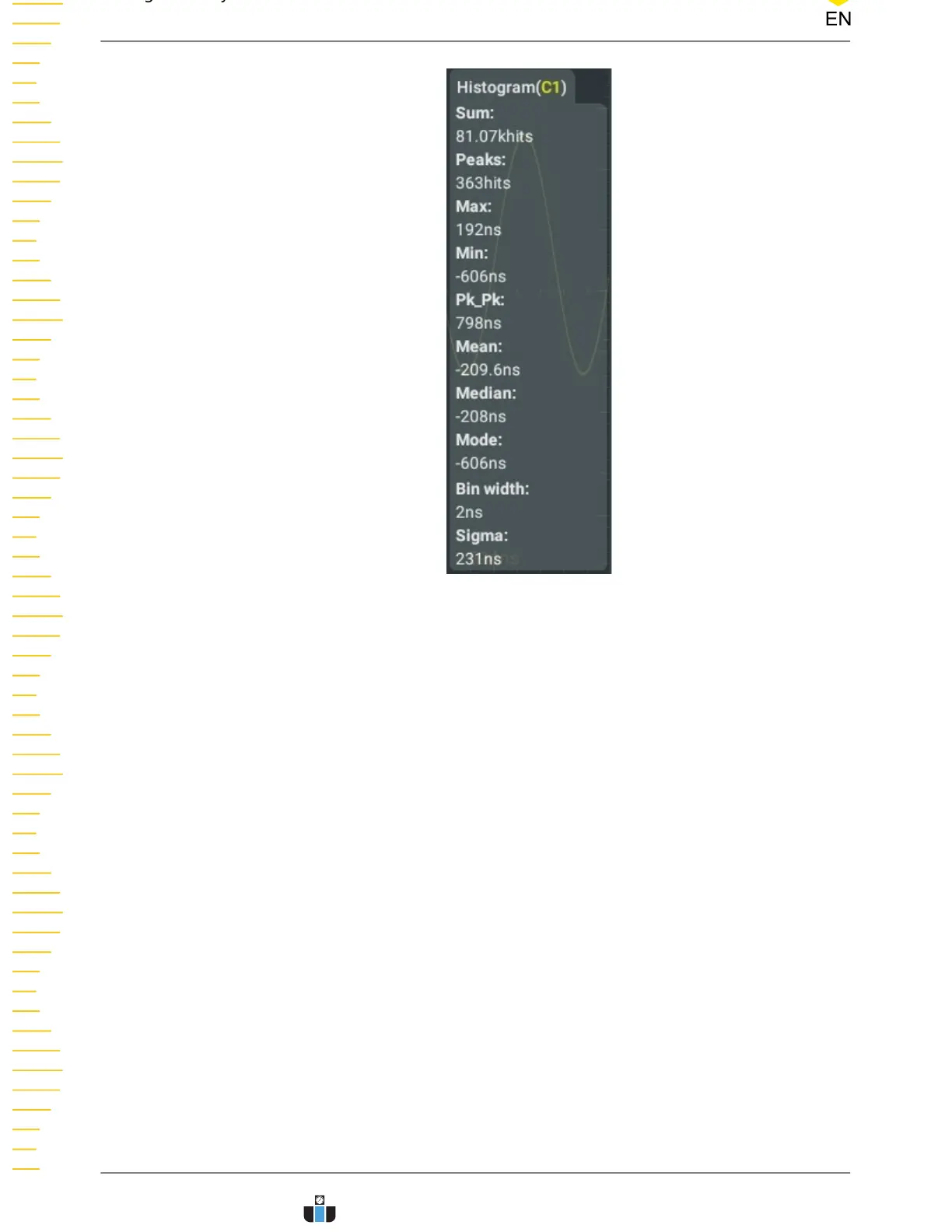

Figure 13.3 Histogram Analysis Results

• Sum: indicates the sum of all bins (buckets) in the histogram.

• Peaks: indicates the maximum number of hits in any single bin.

• Max: indicates the maximum value.

• Min: indicates the minimum value.

• Pk_Pk: indicates the Delta (Max-Min) between the max. value and the min. value.

• Mean: indicates the average value of the histogram.

• Median: indicates the median value of the histogram.

• Mode: indicates the mode value of the histogram.

• Bin width: indicates the width of each bin (bucket) in the histogram.

• Sigma: indicates the standard deviation of the histogram.

• XScale: indicates the horizontal scale of the histogram. It is 100 times the value

of Bin width.

Histogram Analysis

DHO900 User Guide

168
