8
Triggering the Oscilloscope
The trigger system allows you to set specific trigger conditions as required. The
oscilloscope captures a waveform as well as its neighboring part and displays them
on the screen once a particular trigger condition is met. For a digital oscilloscope, it
samples waveform continuously no matter whether it is stably triggered. Rather, only
stable triggering can produce stable display. The trigger module ensures that every
time base sweep or acquisition starts from the user-defined trigger condition, namely
every sweep is synchronous with the acquisition and the waveforms acquired are
overlapped so as to display the stable waveforms.
You should set the triggers based on the features of the input signal. To quickly
capture your desired waveforms, you need to understand the signal under test. This
oscilloscope provides a variety of trigger types that help you focus on the desired
waveform details.
You can enter the
Trigger menu in the following ways.
• Press the front-panel key to enter the trigger menu.
• In
Figure 5.1
, click or tap the Trigger button to enter the trigger menu.

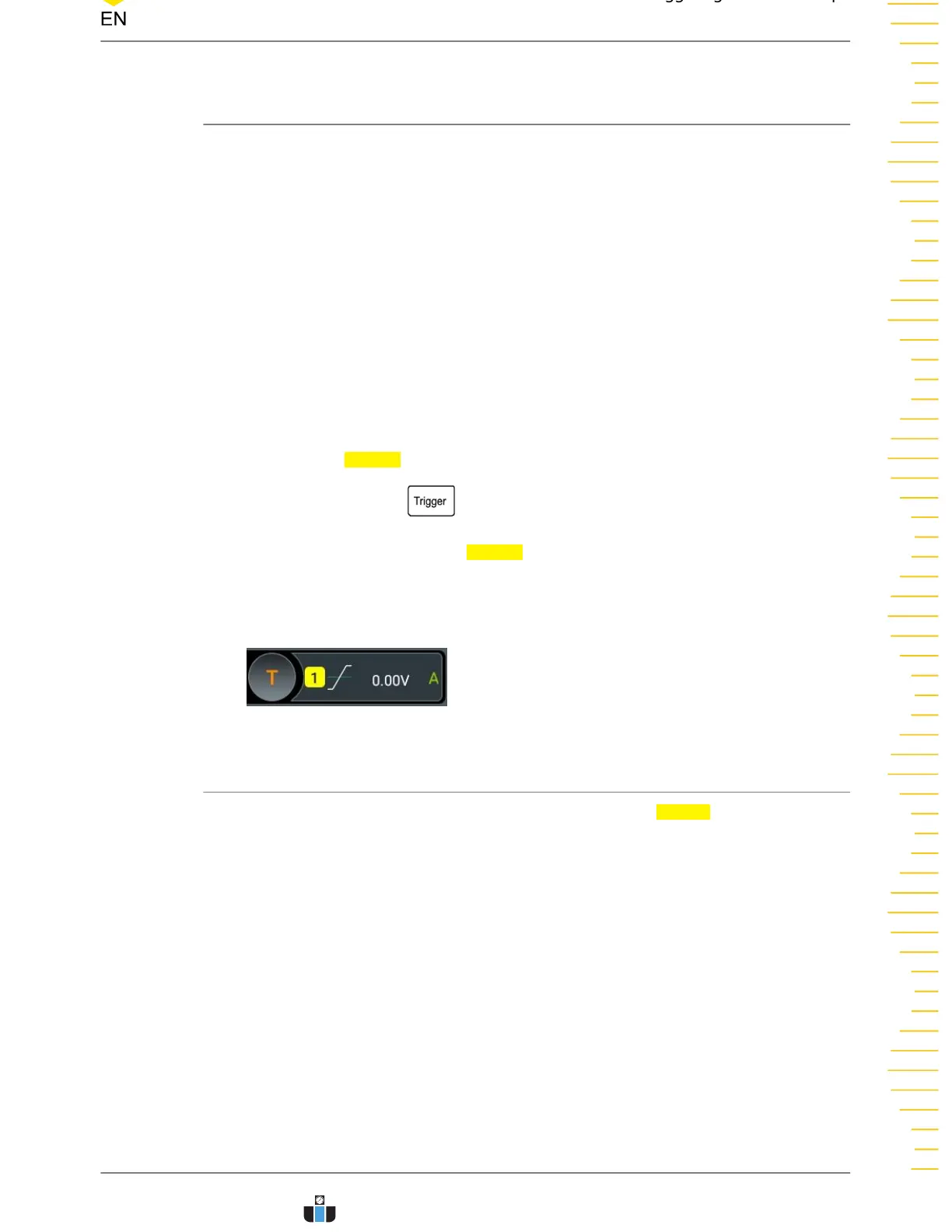

• Click or tap the trigger label (as shown in the figure below) at the top of the
screen to enter the trigger menu.
8.1 Trigger Source
In the "Trigger" menu, click or tap the drop-down button of Source to select the
desired source. Available sources include analog channels CH1-CH4 and digital
channels D0-D15 (available only when the digital channel probe is connected).
Analog Channel Input
Signals input from analog channels CH1-CH4 can all be used as trigger sources. No
matter whether the channel selected is enabled, the channel can work normally.
Digital Channel Input
When the digital channel probe is connected, signals input from digital channels D0-
D15 can all be used as trigger sources. No matter whether the channel selected is
enabled, the channel can work normally.
Triggering the Oscilloscope
Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved. DHO900 User Guide
61
