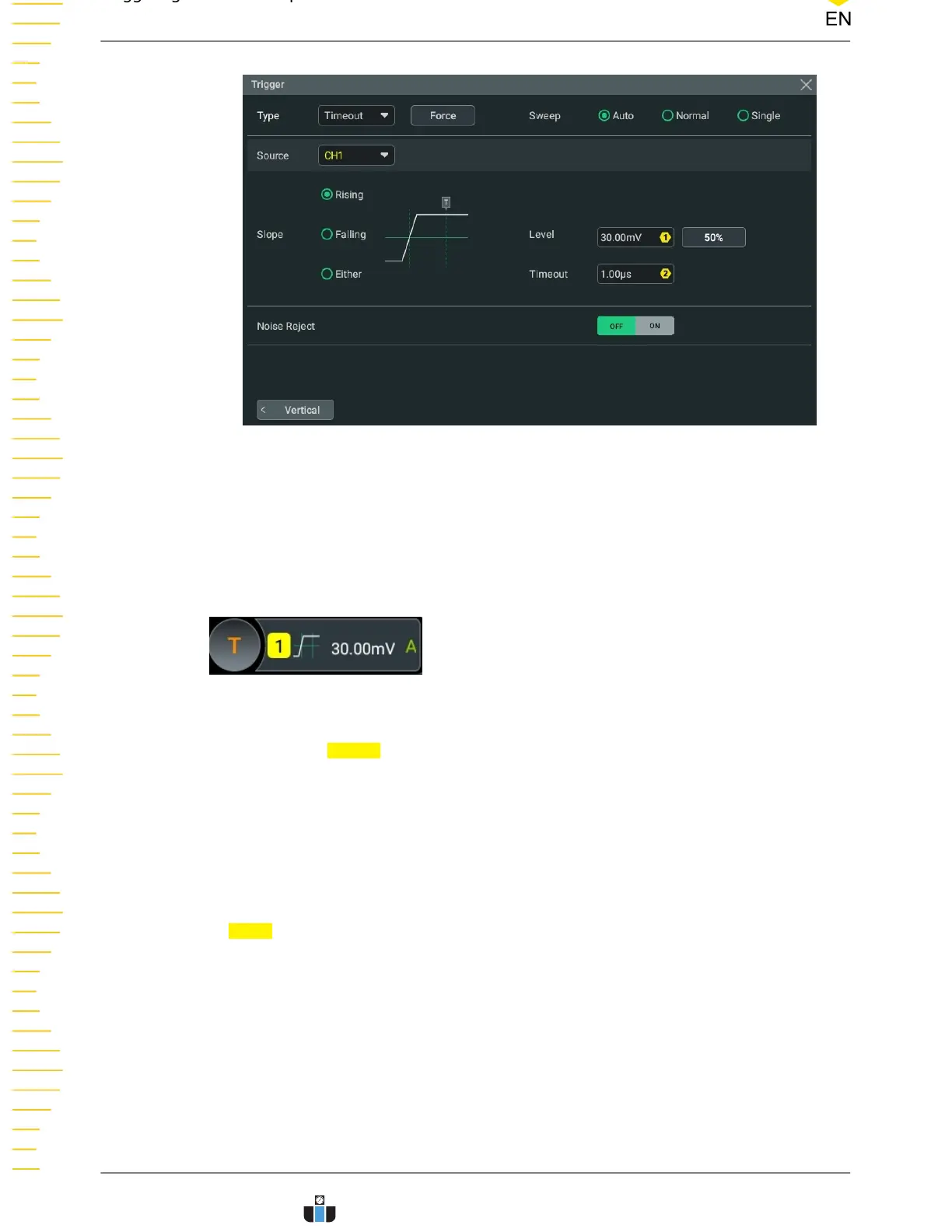

Figure 8.14 Timeout Trigger Menu

After a trigger type is selected, the current trigger setting information (including the

trigger type, source, and level) is displayed in the trigger information label at the top

of the screen, as shown in the figure below. The information will change based on the

trigger settings.

Source Selection

Click or tap the Source drop-down button to select CH1-CH4 or D0-D15. For details,

refer to

Trigger Source

. The selected trigger source is indicated in the trigger

information label at the top of the screen.

Only when you select the channel that has signal inputs as the trigger source, can you

obtain a stable trigger.

Edge Type

Slope item, select the edge type from which the input signal passes through the

trigger level.

• Rising: starts timing when the rising edge of the input signal passes through the

trigger level.

• Falling: starts timing when the falling edge of the input signal passes through

the trigger level.

• Either: starts timing when either edge of the input signal passes through the

trigger level.

Triggering the Oscilloscope
