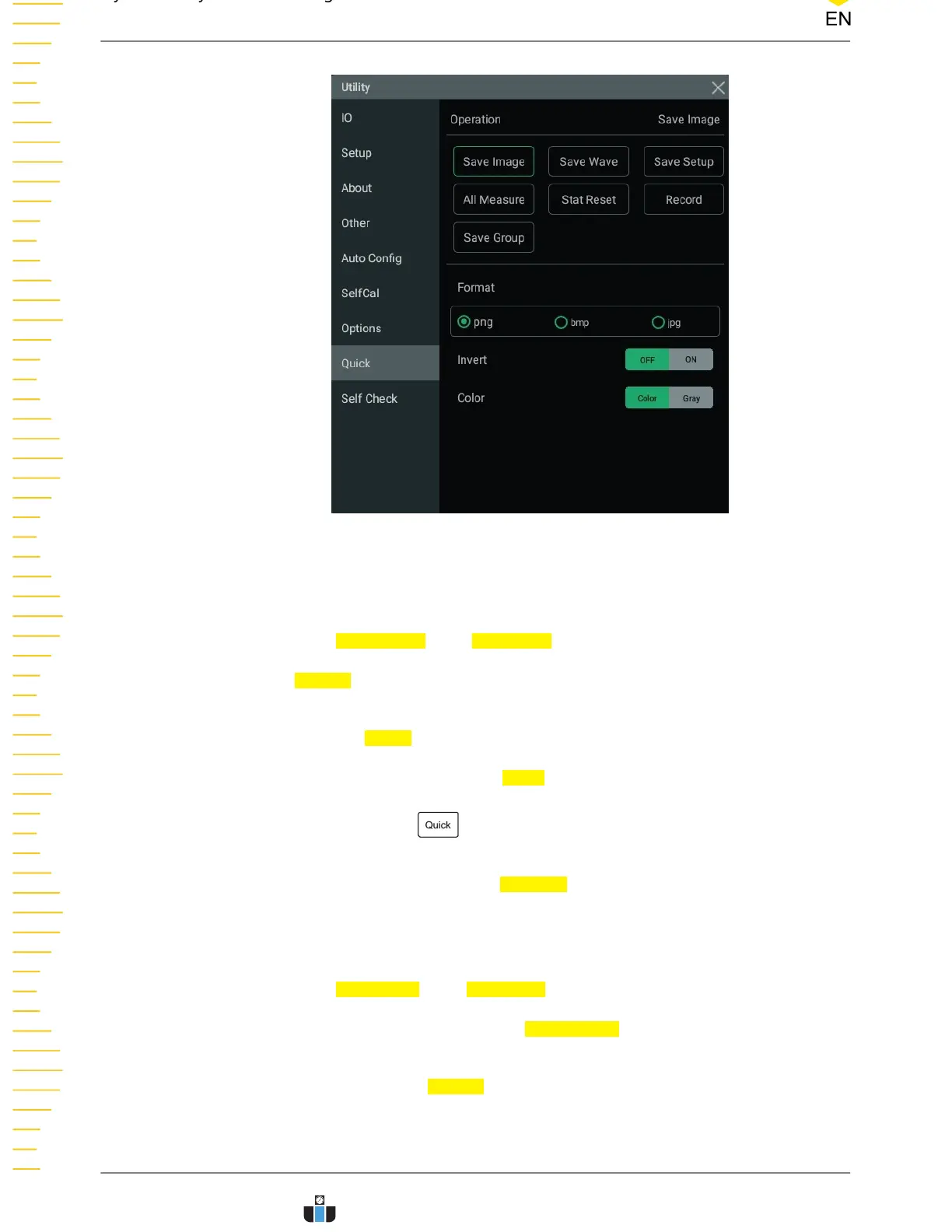

Figure 24.2 Quick Menu

Save Image

• Click or tap Save Image, then Operation is set to "Save Image".

• In the Format menu item, available image types include "png", "bmp", and

"jpg".

• Click or tap the

Invert on/off switch to turn on/off inverting image colors.

• Click or tap "Color" or "Gray" for Color to select the desired image color.

After setup, click or tap the key at the upper-right corner of the front panel to

capture the current screen and save the image with the specified format. The location

where the file is saved depends on the

File Path setting in Storage menu. For details,

please refer to

To Save a File

Save Wave

• Click or tap Save Wave, then Operation is set to "Save Wave".

• Select "Memory" or "Screen" under Data Source as the source of the saved

waveform.

• Available options under

Format include "bin" and "csv".

System Utility Function Setting

DHO900 User Guide

254
