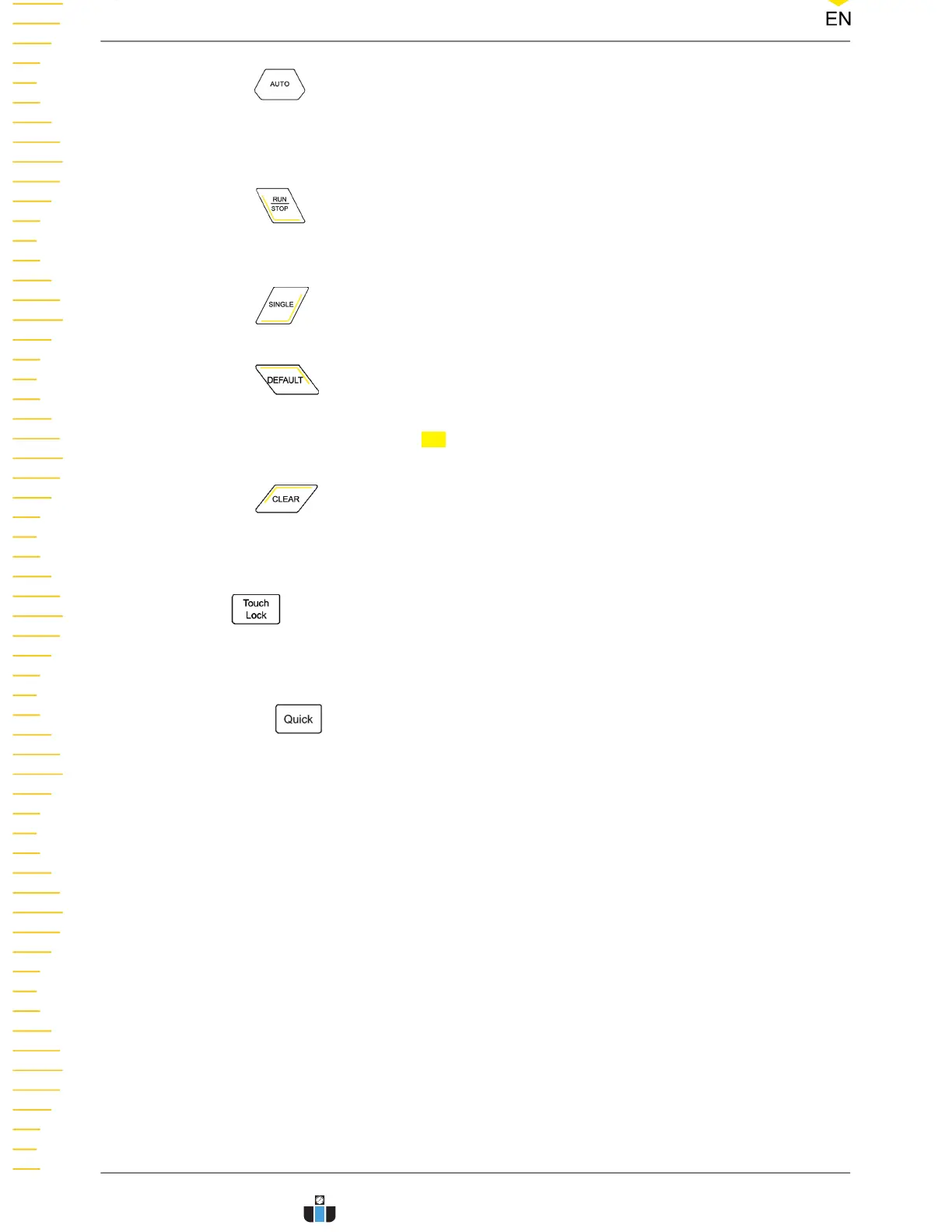

- is the auto scale key. Press this key to enable the auto scale function.

The oscilloscope is aut

omatically configured to best display the input signals by

adjusting the vertical scale, horizontal timebase, and trigger mode. To set up

the key, please refer to

Auto Config

is the RUN/STOP key. Press the key to set the oscilloscope's run state to

"RUN" or "ST

OP". In "RUN" state, this key is illuminated in green; in "STOP"

state, this key is illuminated in red.

is the key for a single acquisition. Press this key to set the oscilloscope's

trigger mode t

o "Single".

is the default setup key. Press this key twice to directly restore the

oscilloscope

's default settings. You can also press the key and a dialog box is

displayed. Click or tap

OK in the dialog t

o restore the oscilloscope's default

settings.

is the clear key. Press this key to clear all waveform on the display. If

the oscilloscope is in "RUN" mode, it continues t

o display new waveforms.

7. Touch Lock Key

is the touch lock key. Press this key once to disable the touch screen

function; pr

ess it again to enable the touch screen.

8. Quick Action Key

Press

to perform the selected quick action: print screen, save wave, save

setup, measur

e all, statistics reset, waveform record, or save group. To set up the

key, please refer to

Quick Action Settings

9. Trigger Controls
