Rigol DS1000Z Series User Manual

RIGOL Chapter 6 To Make Measurements
DS1000Z User’s Guide
6-32
BY-AY are in “%”. At this point, AY, BY and BY-AY will change to “0%”,
“100%” and “100%” when you press Set Range, no matter where cursor A
and B are currently located. At the same time, two cursor lines (unmovable)
appear on the screen as the reference positions.
5. Measurement Example

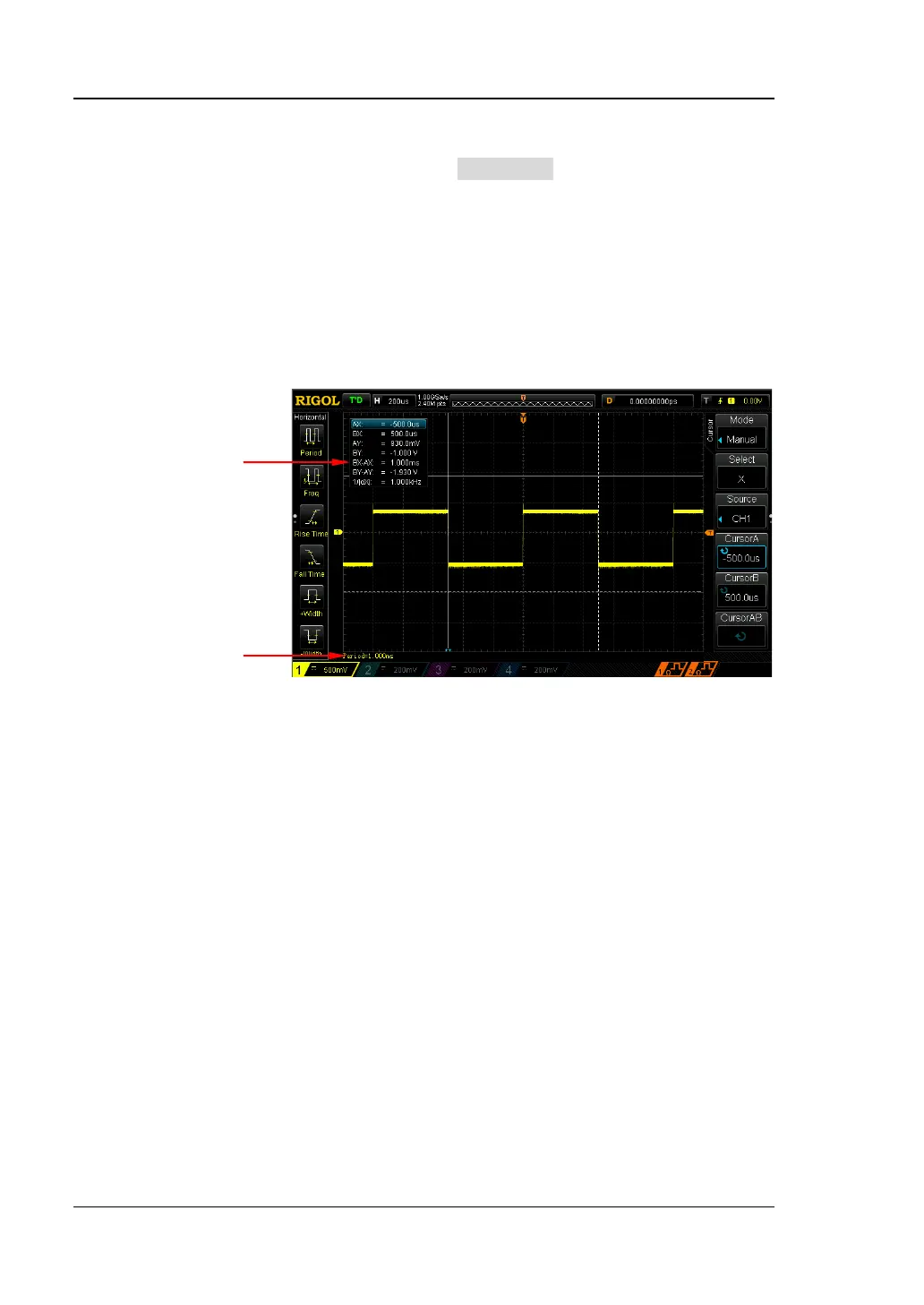

Use manual cursor measurement to measure the period (BX-AX) of a square
waveform and the result is 1 ms equaling the result from auto measurement.
Cursor
Measurement
Auto
