Rigol DS1102/4B User Manual

RIGOL
© 2008 RIGOL Technologies, Inc.
User’s Guide for DS1000B series
2-74

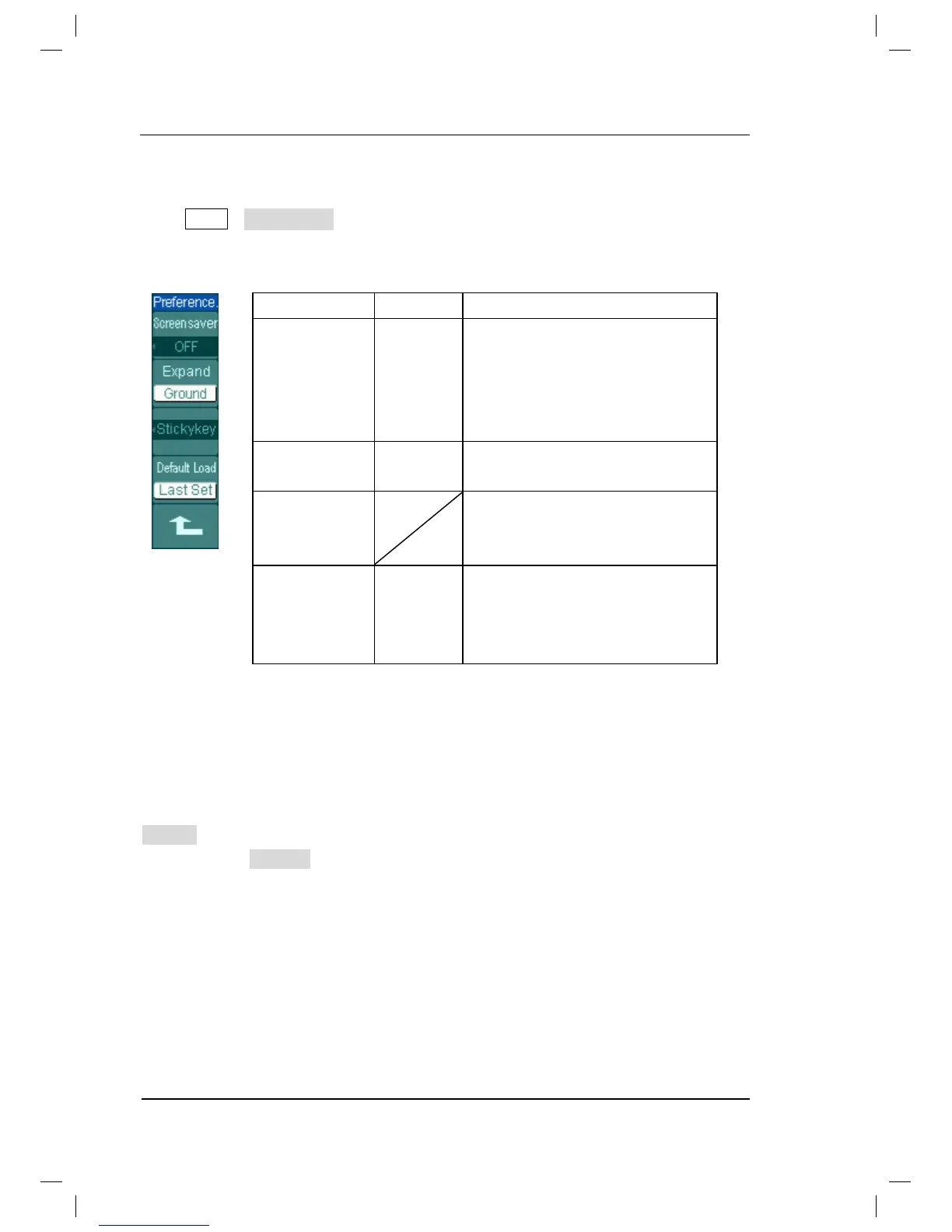

Preference
Press UtilityėPreference to go to the following menu
Figure 2-91 Table 2-57 The Preference menu
Menu
Display
Comments
Screen saver
5 hour
.
.
1 min
OFF
Set up screen sa
ver timer.
Expand
Ground
Center
Set up waveform vertical expand
reference.
Stickykey
Turn the sticky status of CH1,
CH2,
CH3, CH4, Math, and REF
on or off.
Default load
Last set
Default
Use the last setup in the next
power on.
Use the default setup of
the
system in the next power on.
Screen saver: This function extends the life of LCD backlighting system.
Expand reference: When changing the volts/div. for channels, the signal expands
or compresses around the signal ground level, or the center of the screen. When
Center is selected, the waveform will expand or compress around the center of the
display. When Ground is selected, the channel ground level will remain the same
position on the display and waveform will zoom about the ground level.
Sticky key: If sticky feature is turned ON, when adjusting positions (CH1, CH2ˈ
CH3ˈCH4, Math, Ref, Trigger level and Trigger offset), the waveform will stop at zero
position until next adjustment, for the ease of getting back to initial positions.

Rigol DS1102/4B Specifications

General

Bandwidth	100 MHz
Vertical Sensitivity	2 mV/div to 10 V/div
Trigger Modes	Edge, Pulse, Video, Slope, Alternate
Timebase Range	5 ns/div to 50 s/div
Display Resolution	800 x 480
Vertical Resolution	8 bits
Input Coupling	DC, AC, GND
Sample Rate	1 GSa/s
Display	7 inch TFT LCD
Input Impedance	1 MΩ ± 2%
Interfaces	USB
Power Supply	100-240 VAC, 50/60 Hz
