User’s Guide for DS1000B Series
2-77

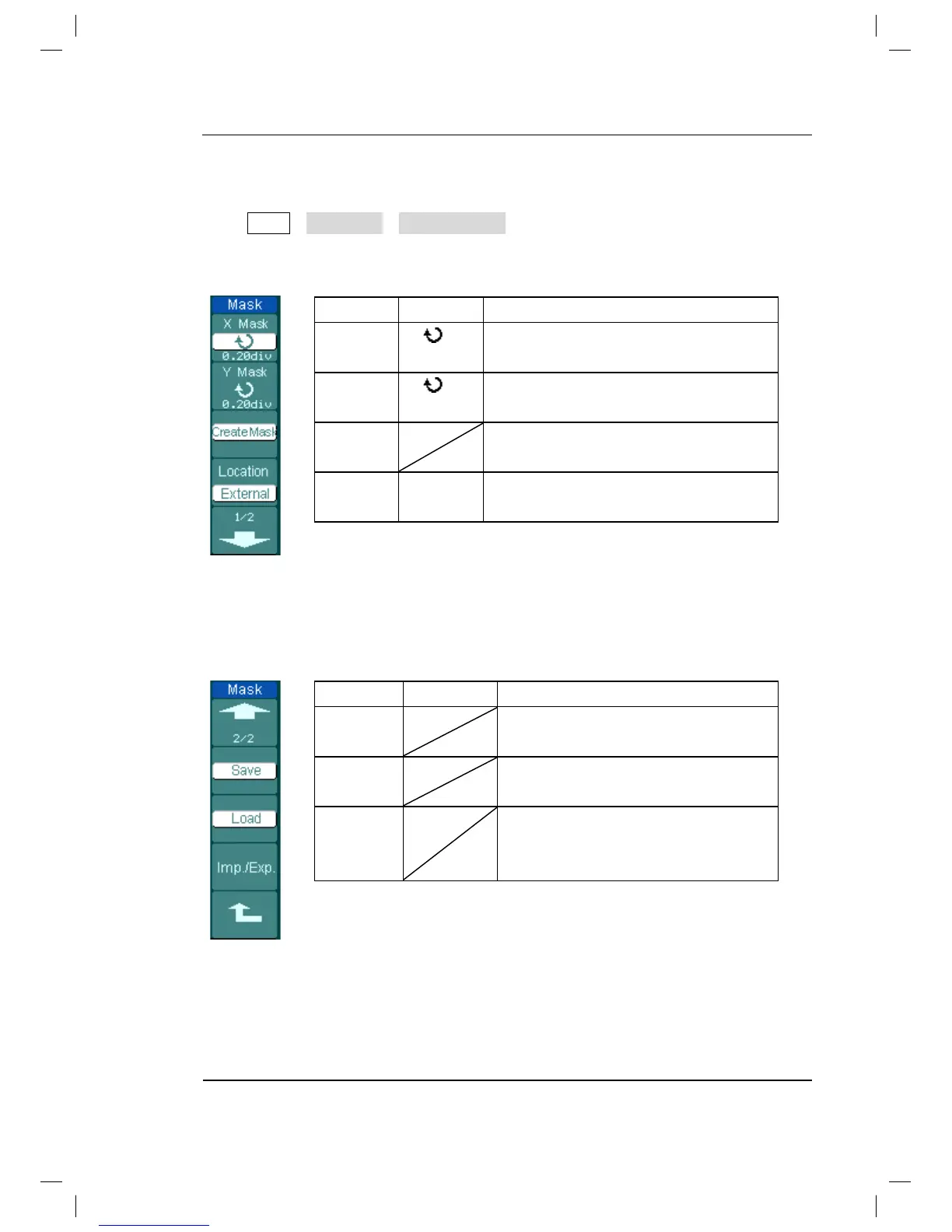

Mask setting
Press UtilityėPass/FailėMask Setting to go to the following menu.
Figure 2-95 Table 2-60 The Mask setting menu (Page 1/2)
Menu
Settings
Comments
X Mask
<x div>
Set horizontal clearance to the
waveform (0.04div-4.00div).
Y Mask
<y div>
Set vertical clearance to the waveform
(0.04div-4.00div).
Create
Mask
Create a test mask according to the
above clearance.
Location
Internal
External
Set the memory location of the mask
files.
When using the internal memory to save, the operation menu is shown below.
Figure 2-96 Table 2-61 The Mask setting menu (Page 2/2)
Menu
Settings
Comments
Save
Store created test mask into internal
memory
˄
see table 2-10
˅
.
Load
Recall mask setting file from internal
memory (see table 2-57).
Imp./Exp.
Go to import/export menu (same as
REF import/export menu.
see t
able
2-12).
