To Measure Automatically
The Measure button in the menu area activates the automatic measurement function.
The instruction below shows the powerful measurement function of DS1000B series
oscilloscopes.

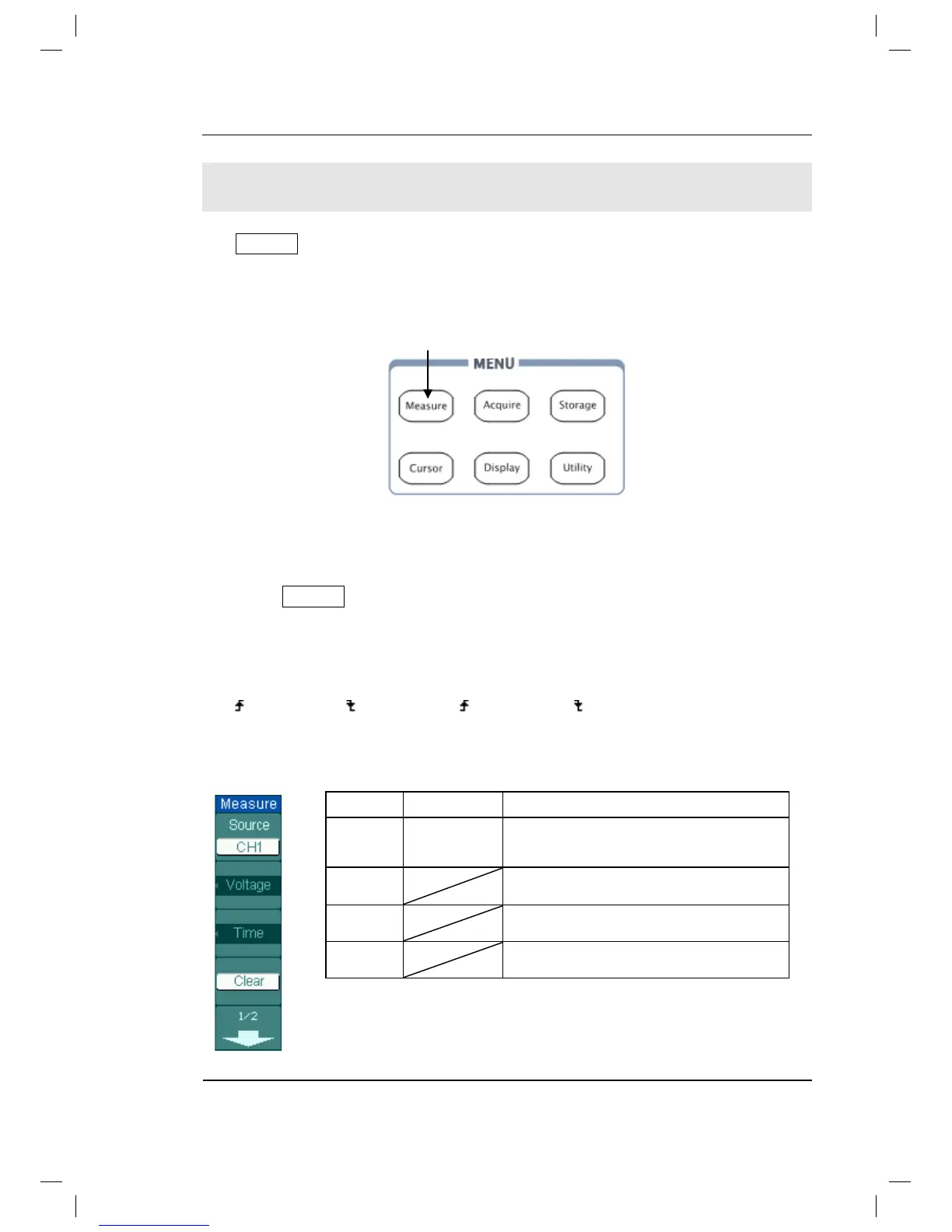

Figure 2-115
The Measure setup button
Menu explanation:
Press the Measure button to display the menu of the Automatic Measurements
settings.
The oscilloscopes provide 22 auto measurements: Vpp, Vmax, Vmin, Vtop, Vbase,
Vamp, Vavg, Vrms, Overshoot, Preshoot, Freq, Period, Rise Time, Fall Time,Delay A
Æ B
, Delay A Æ B , Phase A Æ B , Phase A Æ B , +Width, -Width, +Duty, -Duty
(10 voltage and 12 timing measurements).
Figure 2-116 Table 2-77 The Measure menu (Page 1/2)
Menu
Settings
Comments
Source
CH1, CH2,
CH3, CH4
Select CH1 or CH2 as source channel
for measurement.
Voltage
Select
measure voltage parameter.
Time
Select
measure time parameter.
Clear
Clear measurement result on screen.
Auto
Measurement
