RIGOL
© 2008 RIGOL Technologies, Inc.
User’s Guide for DS1000B series
To Set up the Vertical System
To Set the Channels
Each channel of DS1000B series digital oscilloscope has an independent operation
menu and it will pop-up after pressing any button among CH1, CH2, CH3, CH4. The
settings of all items in the menu are shown in the table below.

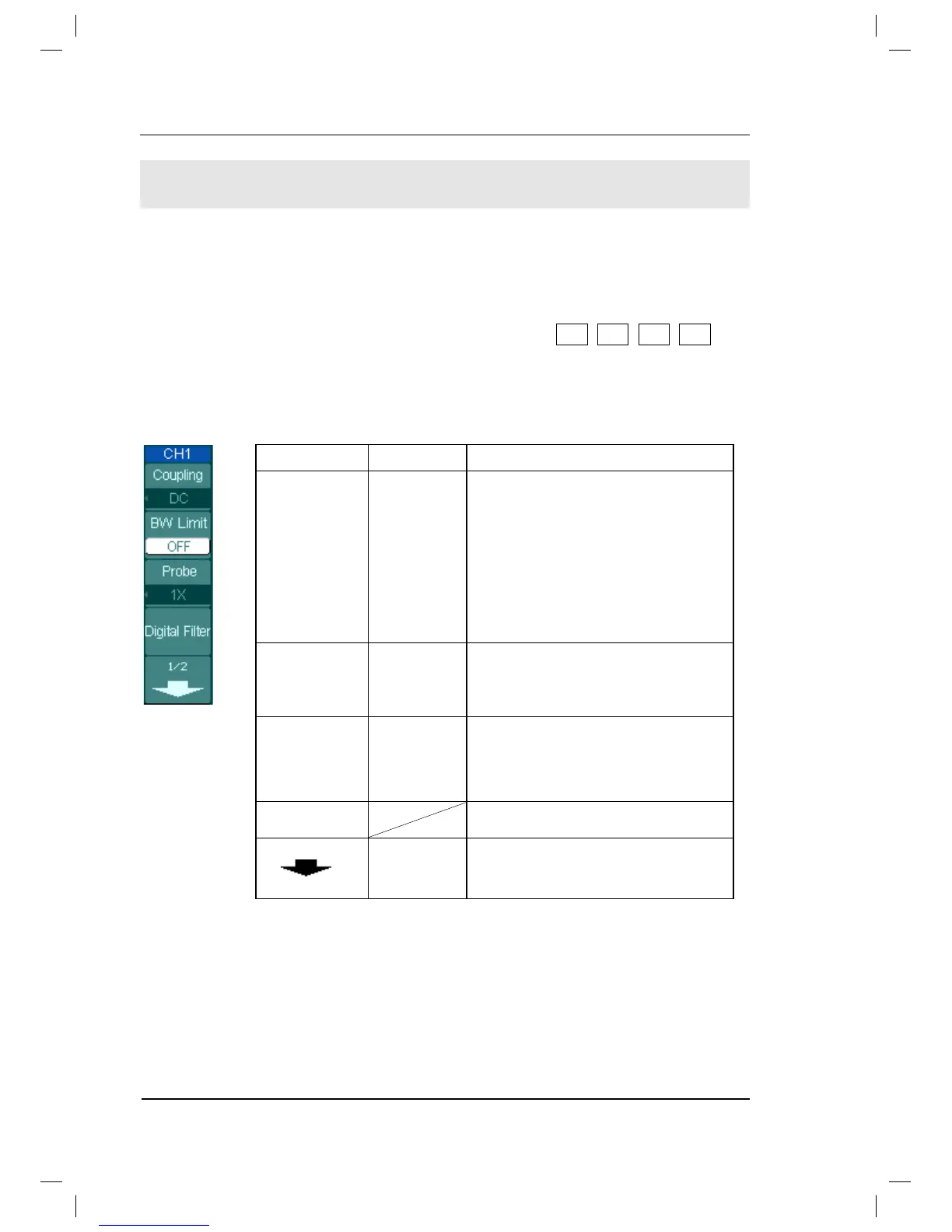

Figure 2-1 Table 2-1 The Channel menu (Page 1/2)
Restraint the DC component of the
input signal and passes the AC
c
omponent with frequency higher
than 5Hz.
Passes both AC and DC
components
of the input signal
Disconnect the input signal.
Limit the channel’s bandwidth to
20MHz to reduce display noise.
the oscilloscope’s probe
attenuation factor to make the
vertical scale rea
Set up digital filter (See table 2
Go to the next menu page (The
followings are the same, no more
explanation).
To Next Page
