User’s Guide for DS1000B Series
2-3

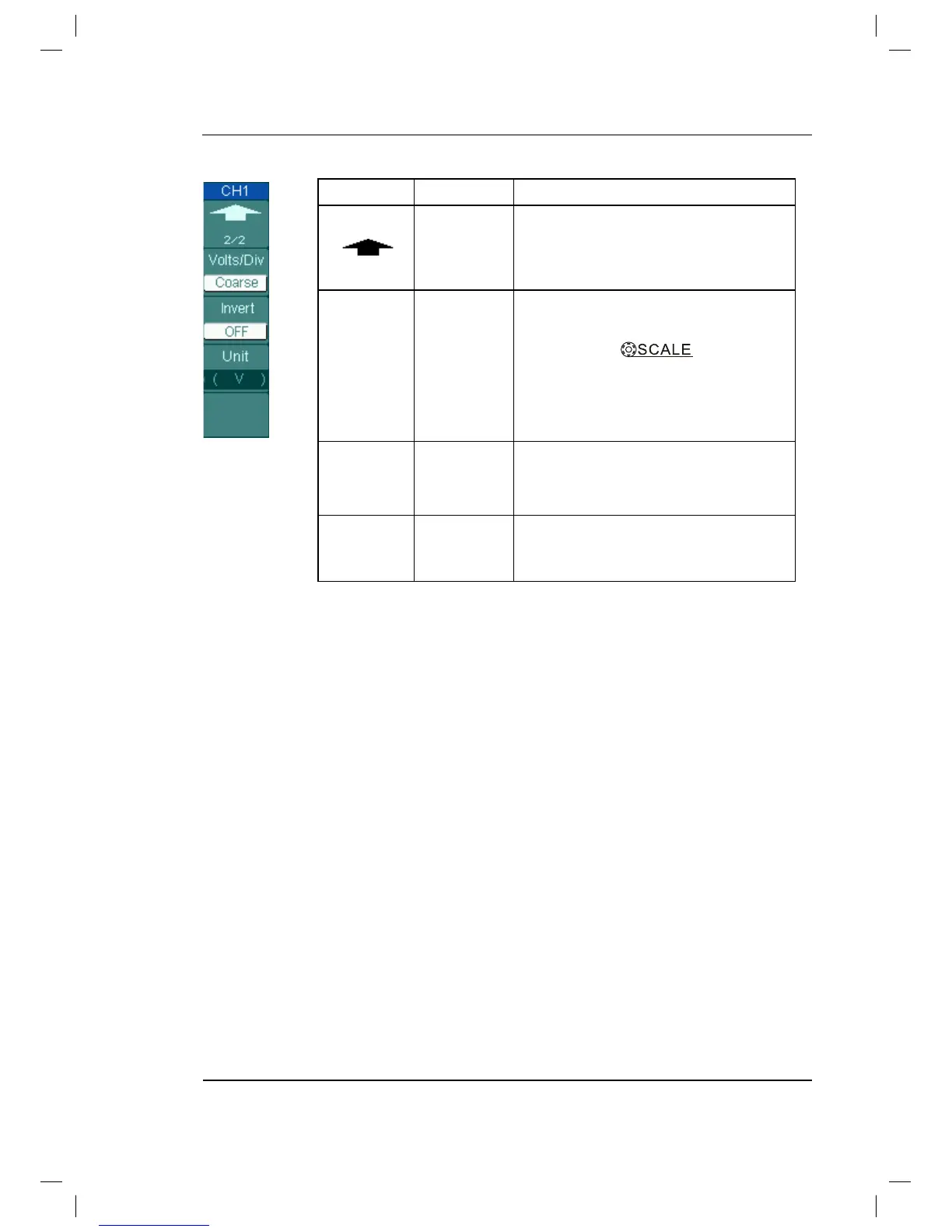

Figure 2-2 Table 2-2 The Channel menu (Page 2/2)
Menu
Settings
Comments
2/2
Back to the previous menu page
(The followings are the same, no
more explanation).
Volts/Div
Coarse
Fine
To change the Volts/Dive settings in
a 1
-2-5 sequence from 2mv/div to
10v/div with
knob.
To change the Volts/Dive settings in
small steps between the coarse
settings.
Invert
ON
OFF
Turn on the invert function.
Restore to original display of the
waveform.
Unit
V/ A/ W/ U
Set “V”, “A”,
“W” or “U” as the unit of
vertical channel.
