Rigol DS1102/4B - Setting Up the Sampling System

RIGOL
© 2008 RIGOL Technologies, Inc.
User’s Guide for DS1000B series
2-52

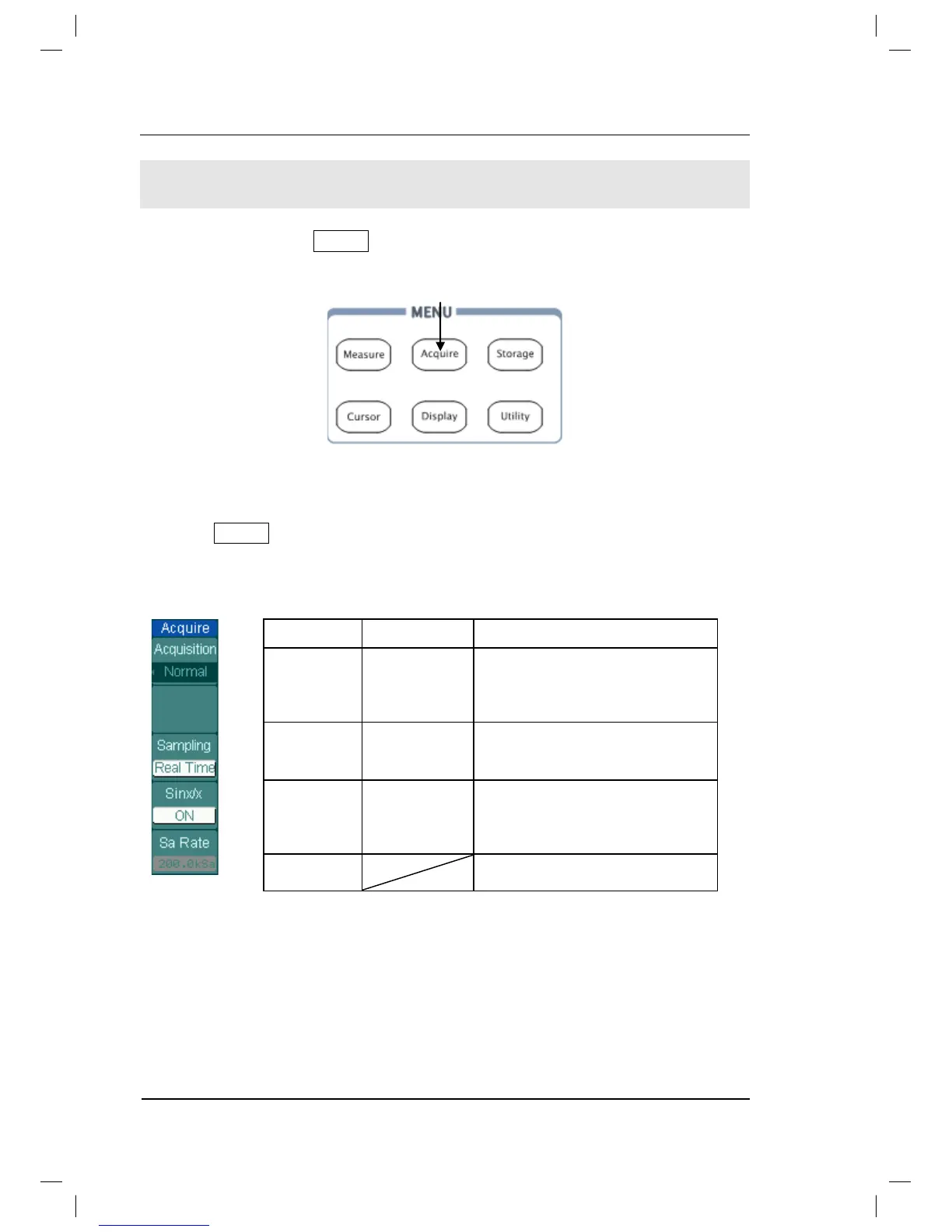

To Set up the Sampling System
Figure 2-60 shows, the Acquire button at the MENU of the front panel.
Figure 2-60
The Acquire setup button
Press the Acquire button, the interface menu shows as follows:
Figure 2-61 Table 2-37 The Acquire menu
Menu
Settings
Comments
Acquisition
Normal
Average
Peak Detect
Normal Acquisition mode.
Average Acquisition mode
.
Peak Detect Acquisition mode.
Sampling
Real
-Time
Equ
-Time
Real
-time sampling mode.
Equivalent sampling mode.
Sin
x/x
ON
OFF
Set the interpolation as Sinx/x.
Set the interpolation as
linearity.
Sa Rate
Display sampling rate
.
Acquire setup button
