Print Setting
DS1000B series oscilloscopes support external printers. Press Utilityė Print set to
enter to the following menu.
Normal mode
Press PrintMod buttonˈchoose the print mode as Normal ˈand navigate into the
following menu.

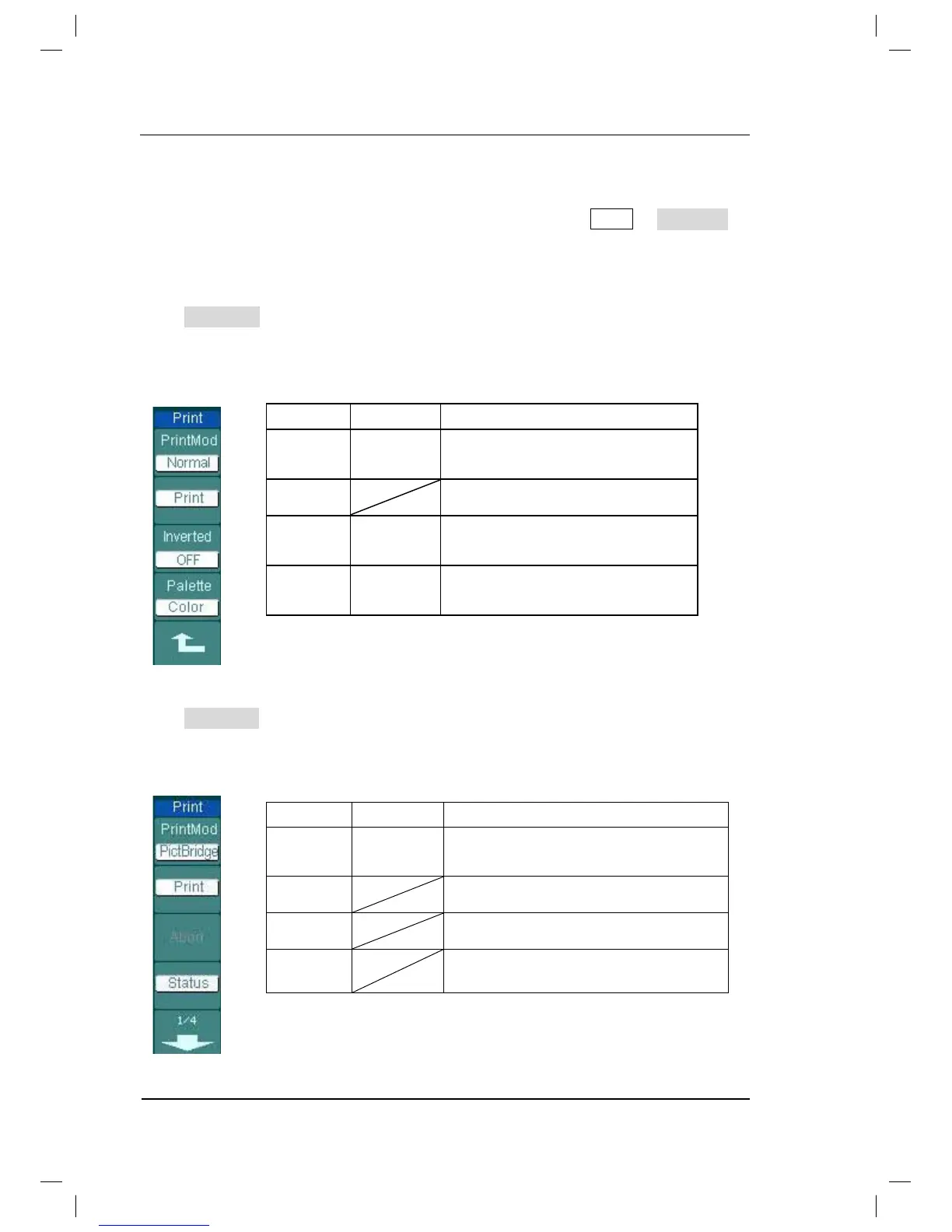

Figure 2-99 Table 2-64 The Print Set menu
PictBridge print mode
Press PrintMod buttonˈchoose the print mode as PictBridge, and navigate into the
following menu.
Figure 2-100 Table 2-65 The print Set menu (Page 1/4)
Menu
Settings
Comments
PrintMod
Normal
PictBridge
Set the print mode as normal.
Set the print mode as PictBridge.
Print
Execute the print operation.
Inverted
ON
OFF
Invert the color for print.
Print original color.
Palette
Gray scale
Color
Set up the print
color.
Menu
Settings
Comments
PrintMod
Normal
PictBridge
Set the print mode as normal.
Set the print mode as PictBridge.
print
Execute the print operation.
Abort
Abort the printing.
Status
Inquire about the current status of
the printer.
