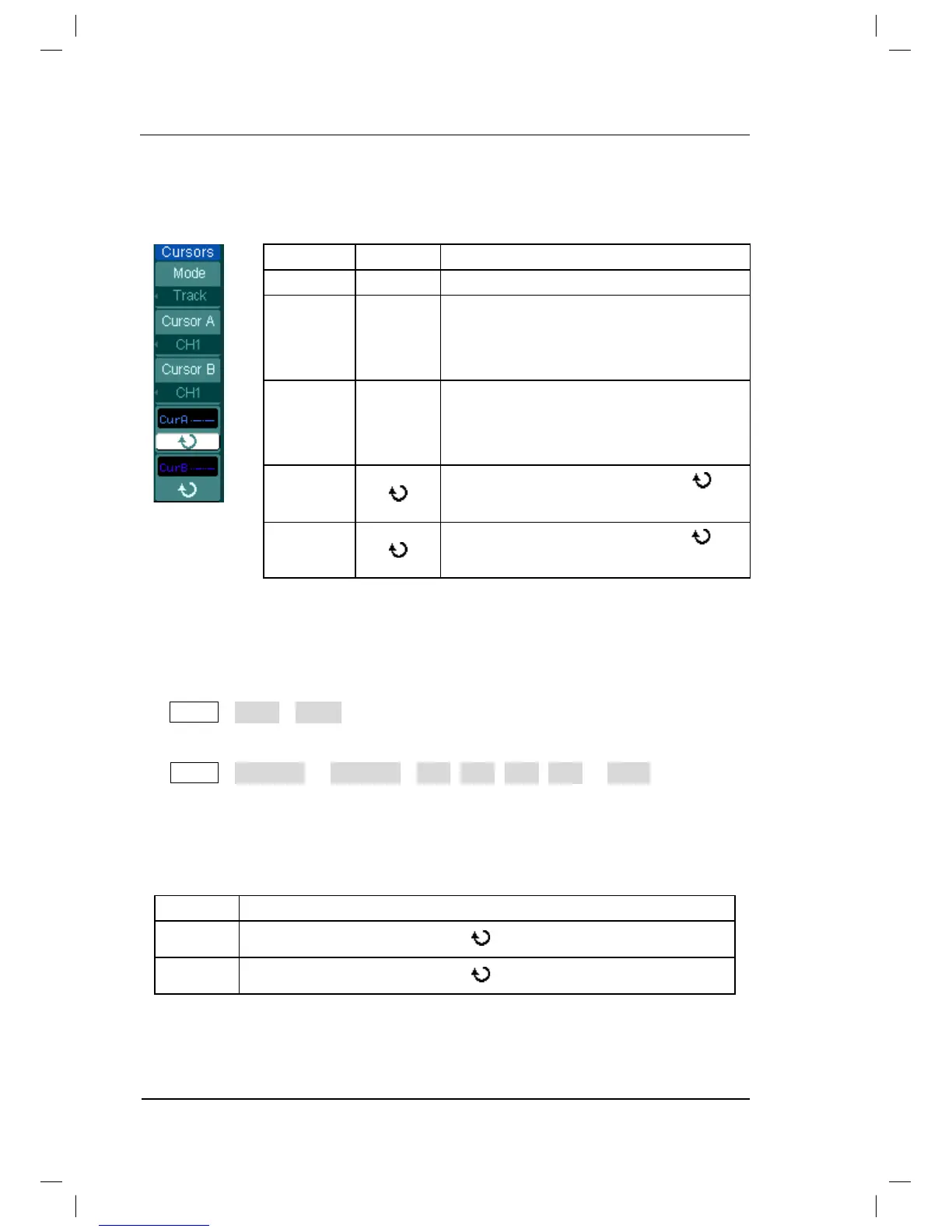

Track Mode
Figure 2-131 Table 2-89 Cursor descriptions
Set Track mode in cursor measurement.
Set Cursor A in conjunction with CH1,
CH2 or turn off Cursor A
Set Cursor B in conjunction with CH1,
CH2 or turn off Cursor B
.
the multifunctional Knob ( )
the multifunctional knob ( )
horizontally.
In cursor track mode, the cursors move together with the selected waveform.
To do Track mode Cursor Measurements, follow these steps:
1. Select the Track mode for cursor measurement by pressing soft button as:
CursorėModeėTrack.
2. Select channel Source for Cursor A and Cursor B by pressing soft button as:
CursorėCursor A or Cursor BėCH1, CH2, CH3, CH4 or None.
3. Move the cursors to adjust the horizontal positions of the cursors: (Details in the
following Table )
Table 2-90 The Cursor usage
the multifunctional knob ( ) to move cursor A horizontally
the multifunctional knob ( ) to move Cursor B horizontally
