User’s Guide for DS1000B Series
The waveform displayed on the screen will change in conjunction with the setting of
Acquire menu.

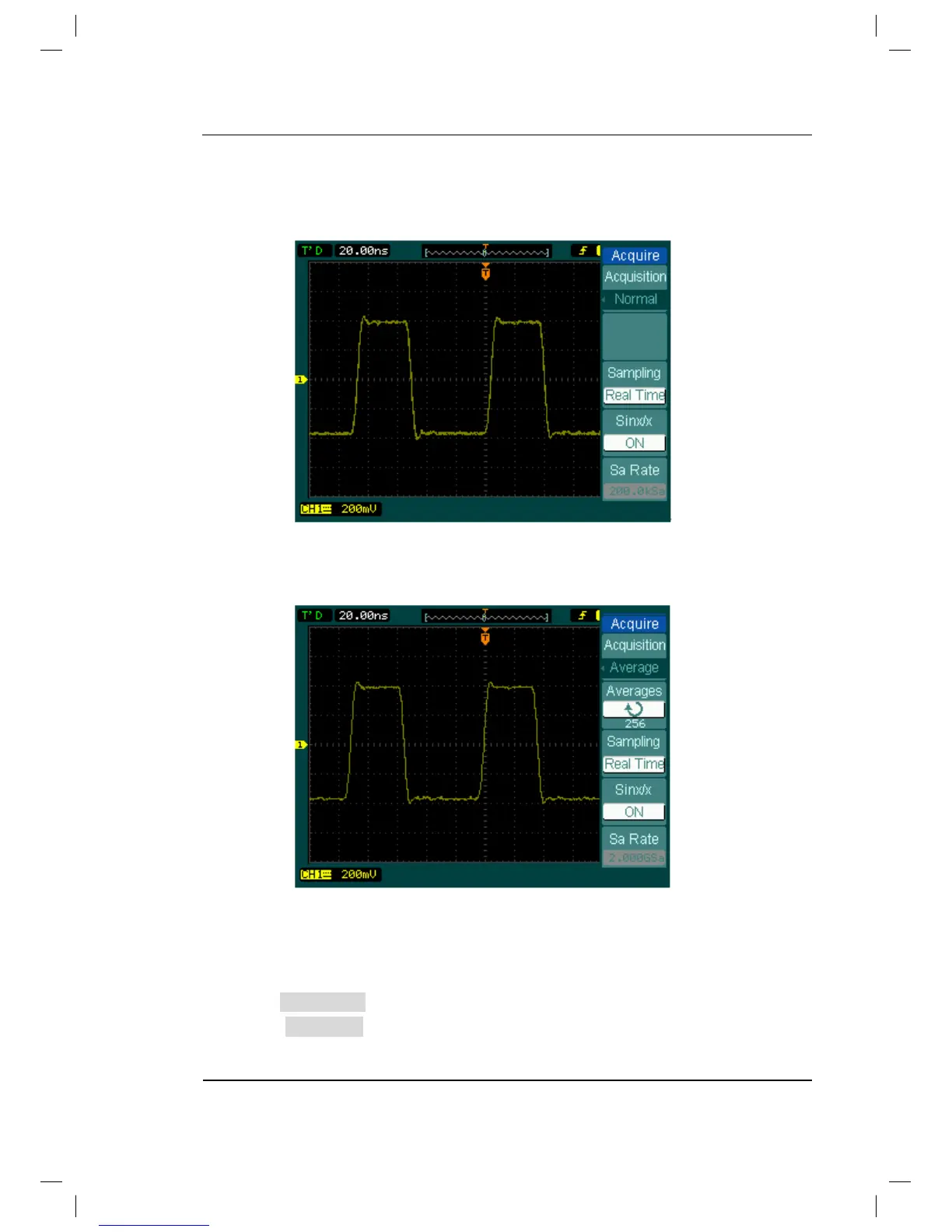

Figure 2-62
Signal that contains noise, and without average sampling
Figure 2-63
Display signal after average 256 times sampling
Note:
z Select Real-time acquisition to observe the single-shot or pulse signals.
z Select Equ-Time to observe high frequency repetitive signals.
