User’s Guide for DS1000B series
Using Automatic Measurement as the following steps demonstration:
1. Select the signal channel for measuring. CH1, CH2, CH3, CH4 according to the
interest.
Press soft buttons as follows: MeasureėSourceėCH1, CH2, CH3 , CH4.
2. To see all measurement values, Press No.2 button to set the Display All to ON.
18 measurement parameters will be displayed on the screen.
3. Select parameters page for measuring; press No.2 or No.3 button to select
voltage or time parameters pages by pressing soft button as follows: Measure
ėVoltage or time ėVmax, Vmin……
4. To get the measured value on the screen; select the parameters of interest by
pressing the soft button on the right of the menu, and read the data on the
bottom of the screen.
If the data is displayed as “*****”, it means the parameter cannot be measured
in current condition.
5. Clear the measure values: press No.4 button Clear to clear away all of the auto
measure values would disappear from the screen.

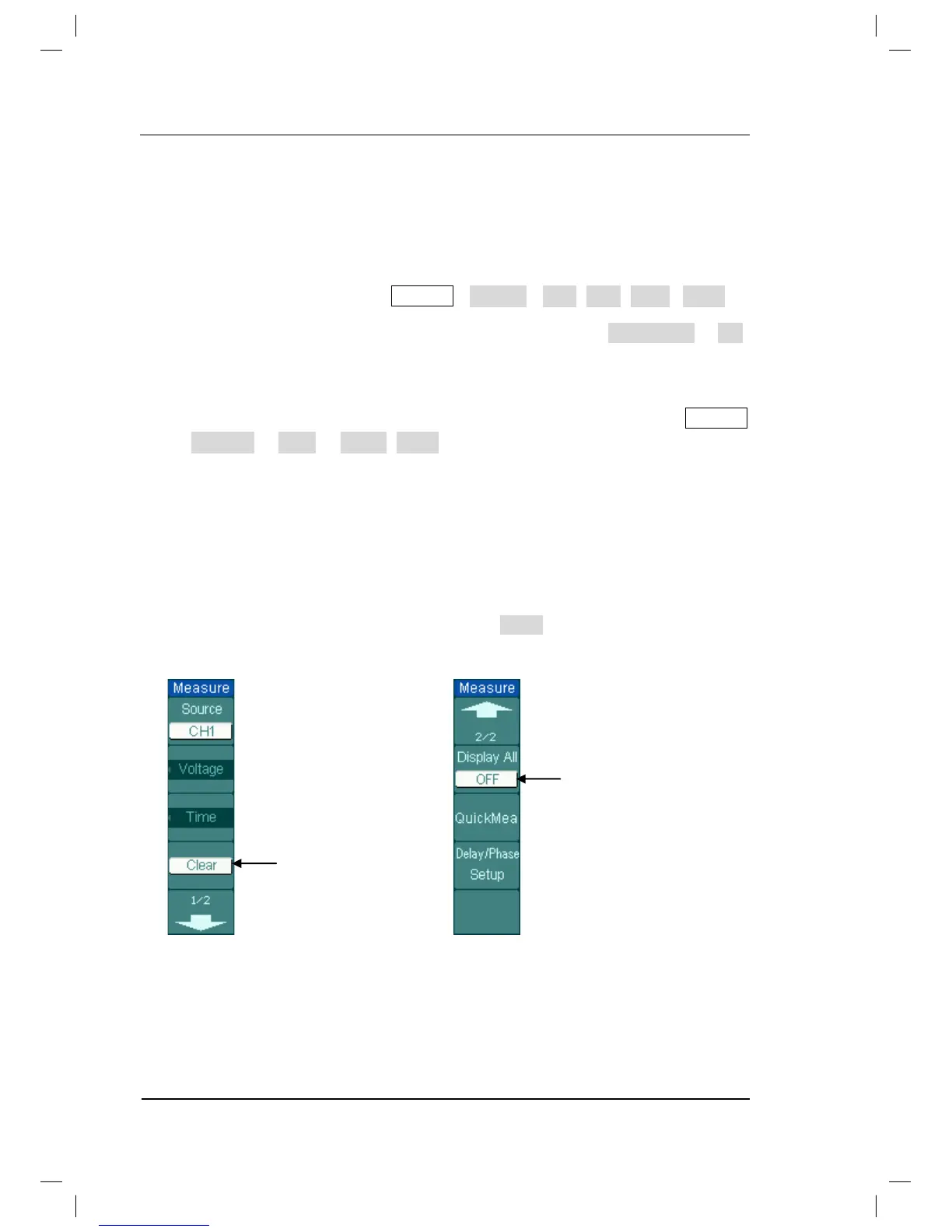

Figure 2-128 The explanation of the menu
