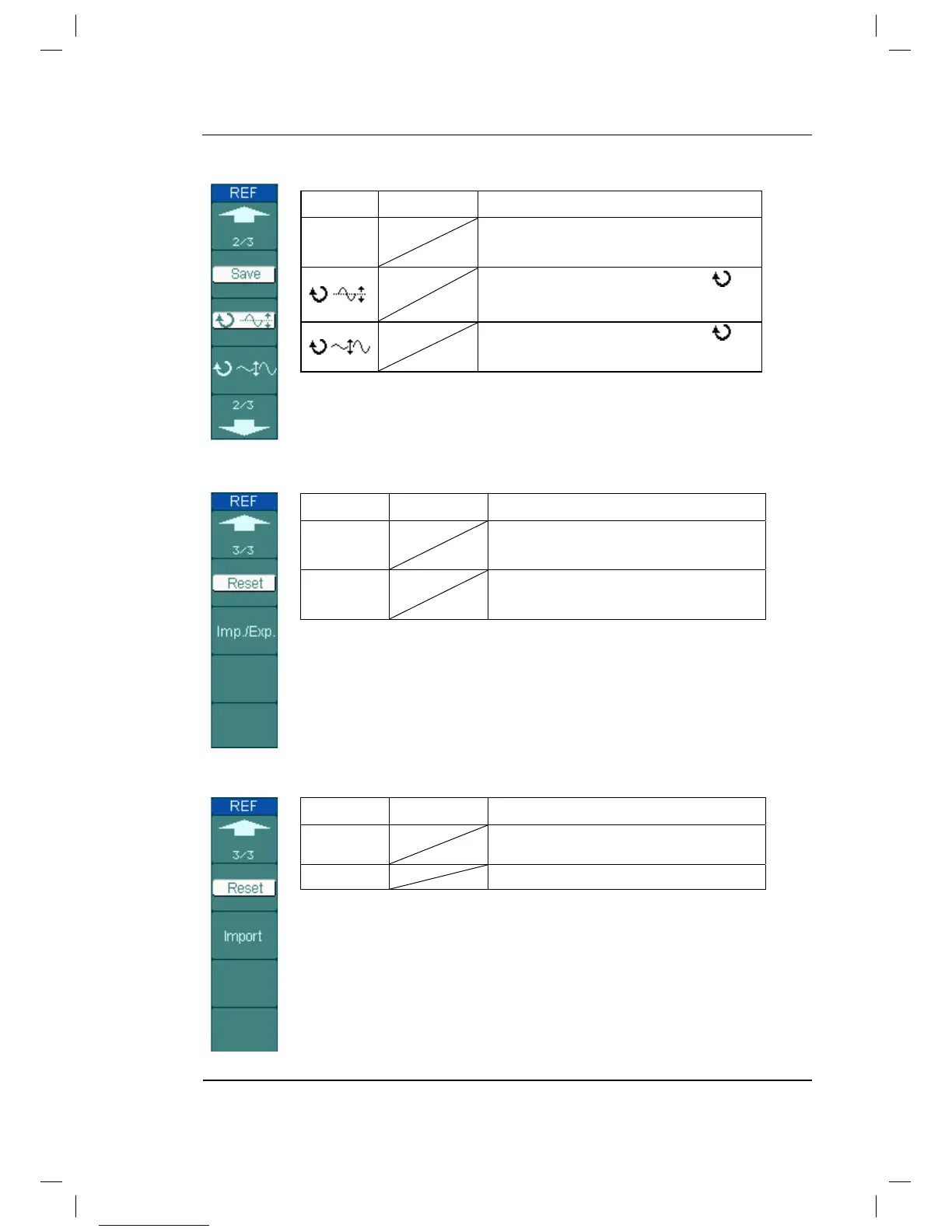

Figure 2-21 Table 2-11 REF menu when using internal/external memory (Page 2/3)
Figure 2-22 Table 2-12 REF menu when using internal memory (Page 3/3)
Figure 2-23 Table 2-13 REF menu when using external memory (Page 3/3)
Menu
Settings
Comments
Save
Save REF waveform to outer memory
location.
The multifunctional knob
˄ ˅
adjusts the vertical position of REF
The multifunctional knob
˄ ˅
adjusts the vertical amplitude of REF
Menu
settings
comments
Reset
Reset REF waveform.
Imp./Exp.
Go to import menu (see table 2
-
14).
Menu
settings
comments
Reset
Reset REF waveform.
Import
Go to import menu (see table 2-18).
