RIGOL
© 2008 RIGOL T
echnologies, Inc.

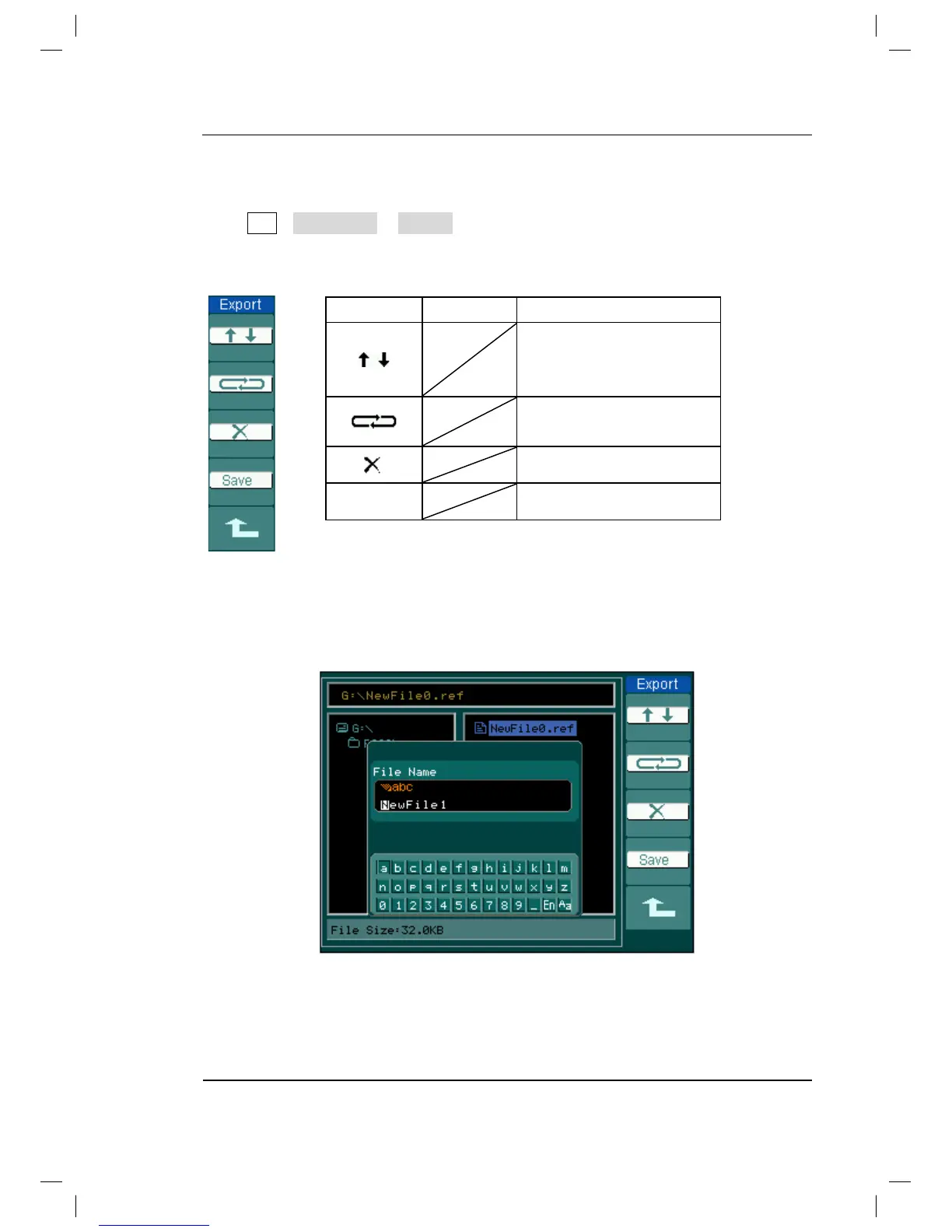

User’s Guide for DS1000B Seri
es
2-21
Export
Press REF
ė
Imp./Exp
.
ė
Export
and go to the following menu.
Figure
2-26 T
able
2-15
The
Export
menu
Menu
Settings
Comments
Move the input focus
point of f
iles’ name up
and down.
Move the focus point to
next location.
T
o delete chosen letter
.
Save
Execute the oper
ation.
The screen of Export is as follows.
Figure 2-27
Figure export
48
50
Table of Contents
Default Chapter
4
Safety Notices
4
Safety Terms and Symbols
6
Table of Contents
8
Chapter 1 : Getting Started
11
The Front Panel and User Interface
12
To Inspect the Instrument
15
To Perform a Functional Check
16
To Compensate the Probes
18
To Display a Signal Automatically
19
To Understand the Vertical System
20
To Understand the Horizontal System
22
To Trigger the Oscilloscope
24
To Understand the Quick Function
27
Chapter 2 : Operating Your Oscilloscope
29
To Set up the Vertical System
30
To Set the Channels
30
To Use Math Functions
41
To Use REF Function
46
Turn on or off Channels
54
To Apply the Vertical Knobs
55
To Set up the Horizontal System
56
To Set up the Trigger System
62
Trigger Modes
63
Edge Trigger
64
Pulse Width Trigger
65
Video Trigger
66
Pattern Trigger
69
Alternative Trigger
71
Trigger Settings
74
Trigger Holdoff
76
To Set up the Sampling System
80
To Set up the Display System
84
To Store and Recall
87
Disk Management
94
To Set up the Utility
97
The I/O Setup
99
Preference
102
Self-Calibration
103
Pass/Fail
104
Mask Setting
105
Print Setting
108
Waveform Recorder
110
System Information
114
Language
115
Date and Time
116
To Measure Automatically
117
Quick Measurement Setup
119
Delay/Phase Setup
120
Voltage Measurements
121
Time Measurements
123
To Measure with Cursors
127
Manual Mode
128
Track Mode
130
Auto Mode
132
To Use Run Control Buttons
133
Chapter 3 : Application & Examples
135
Example 1: Taking Simple Measurements
135
Example 2: View a Signal Delay Caused by a Circuit
136
Example 3: Capture a Single-Shot Signal
137
Example 4: to Reduce the Random Noise on a Signal
138
Example 5: Making Cursor Measurements
140
Example 6: the Application of the X-Y Operation
142
Example 7: Triggering on a Video Signal
144
Example 8: FFT Cursor Measurement
146
Example 9: Pass/Fail Test
148
Chapter 4 : Troubleshooting
149
Chapter 5 : Specifications
151
Specifications
152
General Specifications
156
Chapter 6 : Appendixes
159
Appendix A: Accessories
159
Appendix B: Warranty
160
Appendix C: Maintenance
161
Appendix D: Contact RIGOL
162
Index
163
