Rigol DS1102/4B User Manual

RIGOL
© 2008 RIGOL Technologies, Inc.
User’s Guide for DS1000B Series
2-45

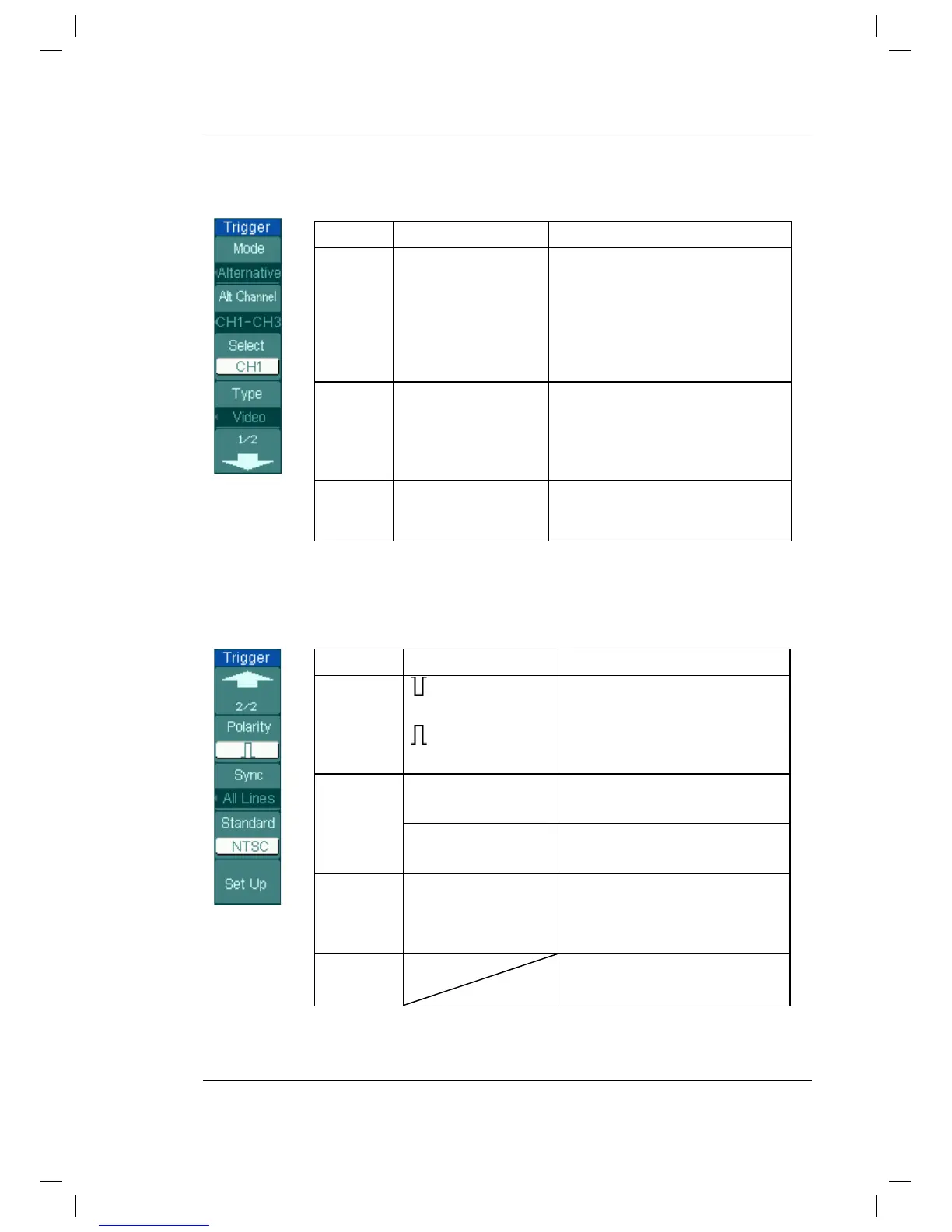

Figure 2-54 Table 2-32 The Alternative trigger menu
(Page 1/2 Trigger Type: Video)
Menu
Settings
Comments
Alt
Channel
CH1-CH2
CH1
-CH3
CH1
-CH4
CH2
-CH3
CH2
-CH4
CH3-CH4
To specify the current
alternative trigger channels as
any two channels selected form
CH1,
CH2, CH3, CH4.
select
CH1
, CH2,
CH3
, CH4
To select vertical channel
among CH1,
CH2, CH3,
CH4 in
alternative trigger mode so as
to configure further settings.
T
ype
Edge trigger
Pulse trigger
Video trigger
To select trigger type for
current channel.
Figure 2-55 Table 2-33 The Alternative trigger menu
(Page 2/2 Trigger Mode: Video)
Menu
Settings
Comments
Polarity
Normal polarity
Inverted polarity
Trigger on negative going
sync pulses.
Trigger on positive going sync
pulses.
Sync
ALL lines
Line Num
Trigger on all lines.
Trigger on a specified line.
Odd field
Even field
Select to trigger on odd field
or even field.
Standard
PAL/SECM
NTSC
Select Video standard.
Set Up
To go to set up menu
, s
ee
T
able 2-36.
