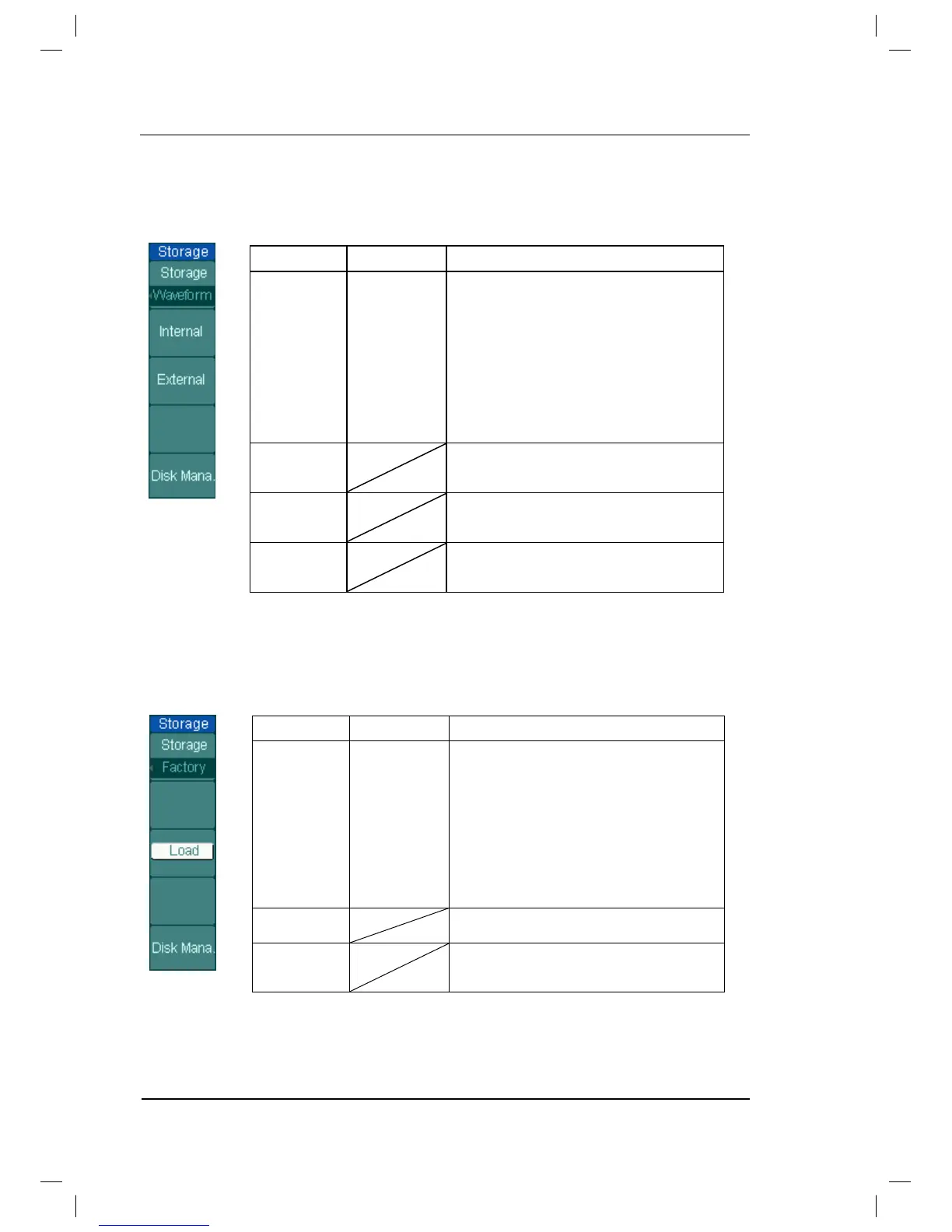

Waveform and setup menus are as follows:
Figure 2-70 Table 2-41 The Storage menu
For factory default setups, the menu is as follows:
Figure 2-71 Table 2-42 The Storage menu
Menu
Settings
Comments
Storage
Waveform
Setups
8
-Bitmap
24
-
Bitmap
PNG
CSV
Factory
Store or recall waveform.
Store or recall instrument setups.
Create or delete 8bits bitmap files.
Create or delete 24bits bitmap files.
Create or delete PNG format files.
Create or delete CSV files.
Recall factory setups.
Load
Recall factory setups or files
.
Disk Mana.
Go to disk manage menu (see Table
2
-48).
Menu
Settings
Comments
Storage
Waveform
Setups
8
-Bitmap
24
-
Bitmap
PNG
CSV
Factory
Store or recall waveform.
Store or recall instr
ument setups.
Create or delete 8bits bitmap files.
Create or delete 24bits bitmap files.
Create or delete PNG format files.
Create or delete CSV files.
Recall factory setups.
Internal
Go to menu for internal memory
operation (see Table 2-46).
External
Go to menu for external memory
operation (see Table 2-47).
Disk Mana.
Go to disk manage menu (see Table
2-48).
