For PNG, the menu is as follows.

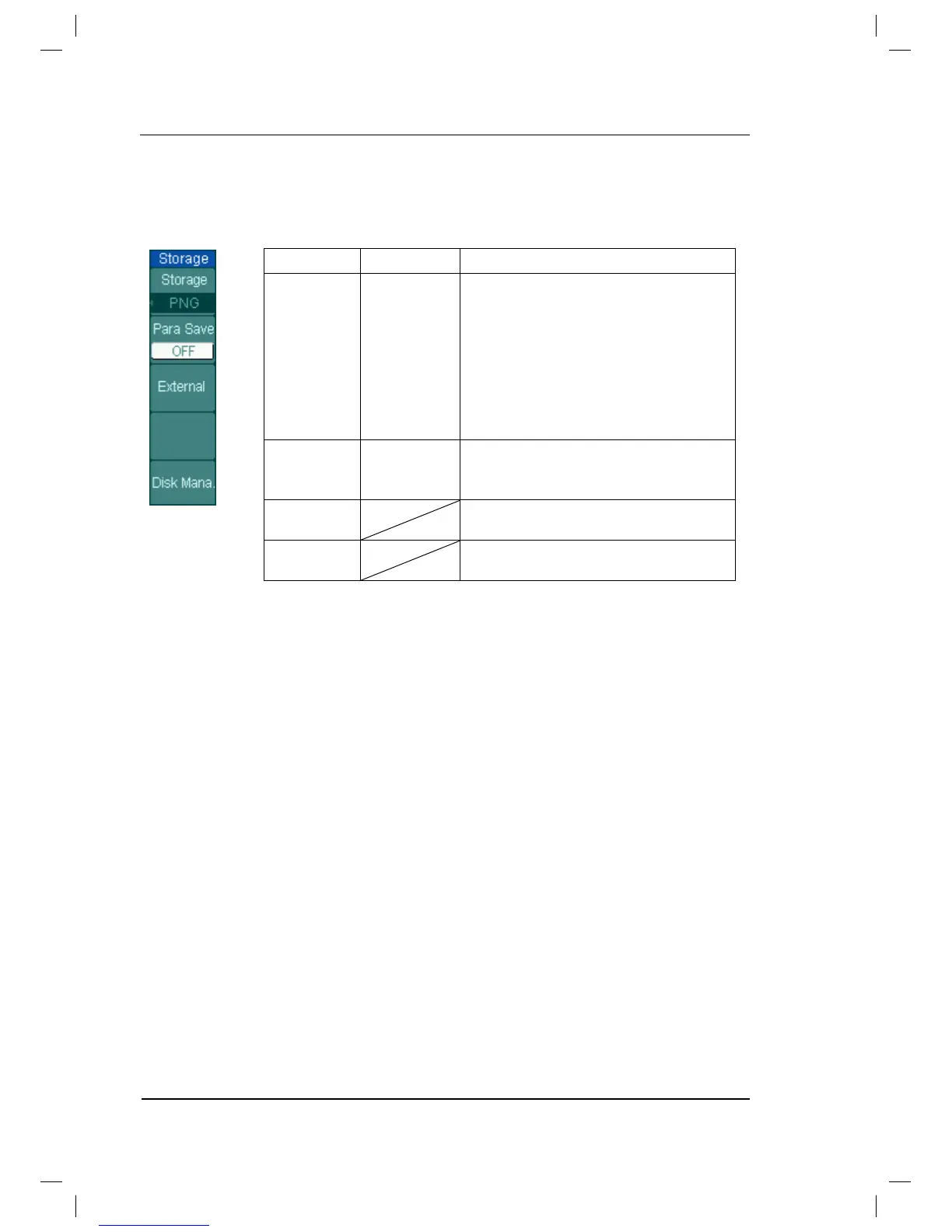

Figure 2-74 Table 2-45 The Storage menu
Menu
Settings
Comments
Storage
Waveform
Setups
8-Bitmap
24
-Bitmap
PNG
CSV
Factory
Store or recall waveform.
Store
or recall instrument setups.
Create or delete 8bits bitmap files.
Create or delete 24bits bitmap files.
Create or delete PNG format files.
Create or delete CSV files.
Recall factory setups.
Para Save
On
Off
Save the current oscilloscope
settings in different format with the
same file name.
External
Go to menu for external memory
operation (see Table 2-47).
Disk Mana.
Go to disk manage menu (see Table
2-48).
