RIGOL
© 2008 RIGOL T
echnologies, Inc.
User’s Guide for DS1000B Seri
es
2-65

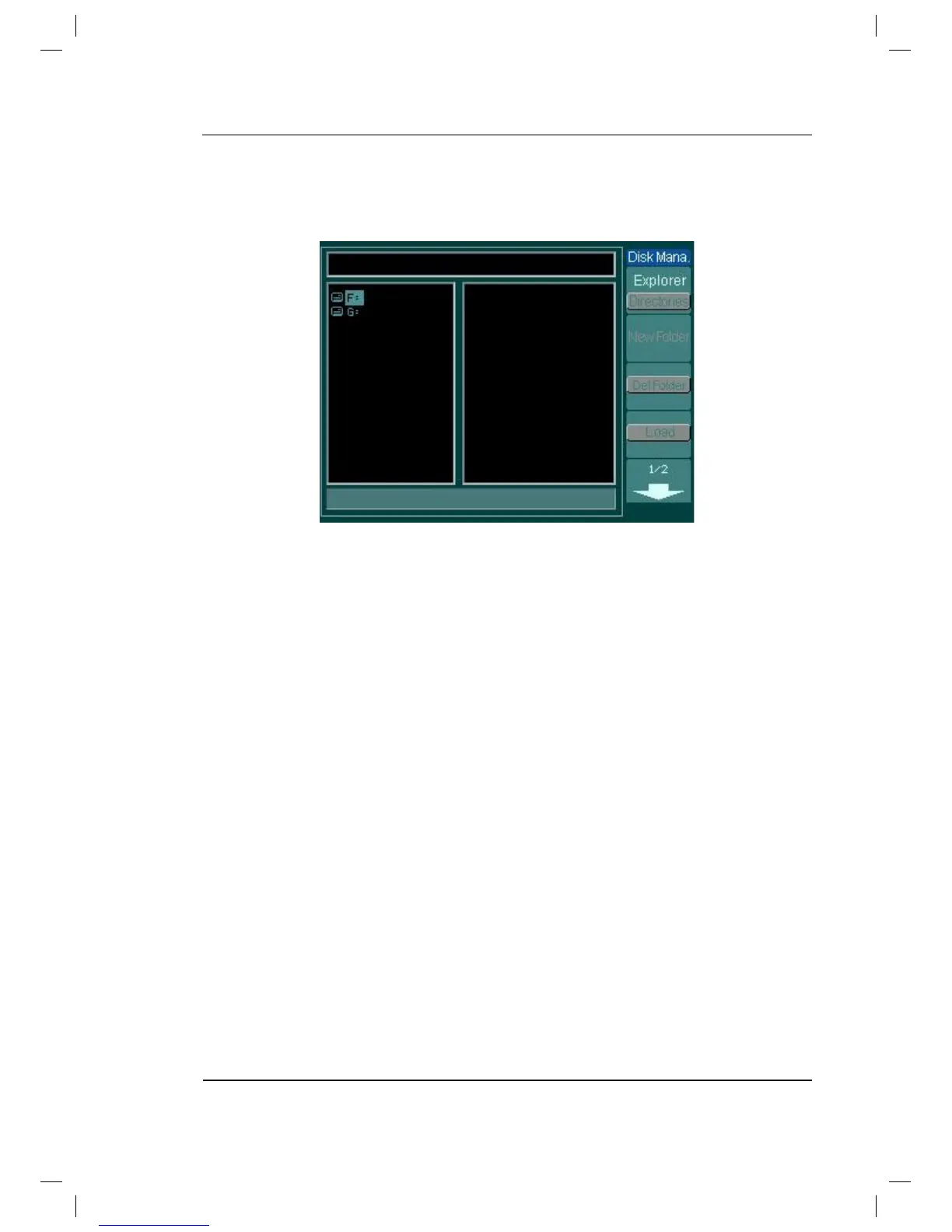

U-disk Selection:
Figure 2-78
U-disk selection
DS1000B series have two USB Host ports on the
front and r
ear panel. When both
ports were inserted USB flash drive, the screen will appear
a U-disk selection
interface as Figure 2-78.
T
urn the multifunction knob to choose the
driver
. The front one marked “F
:”
, the rear
one “G:”
.
92
