RIGOL Chapter 6 Operations and Measurements
6-28 MSO5000-E User Guide
➢ Press Peak to Peak to enable or disable the peak-peak priority setting.
This function is intended for the shifted signal. If there is a large deviation,
you can view the signal waveform in priority when you enable the function.
➢ Press CH to select "All" or "Open".
If you select "All", press AUTO and the system will test the two analog
channels (CH1 and CH2) in sequence. If no signal is found on the channel,
then the channel is disabled; if a signal is found on the channel, adjust the
channel to an optimal scale to display the signal.
If you select "Open", press AUTO and the system will only test the enabled
channels.
➢ Press Overlay to enable or disable the waveform overlay display function.
If enabled, waveforms of different channels will be displayed in the same
position of the screen; if disabled, waveforms of different channels will be
displayed on the screen from top to bottom in sequence.
➢ Press Coupling to enable or disable the coupling hold function. If enabled,
after you press AUTO, the settings for the channel coupling remain
unchanged; if disabled, then the channel coupling is, by default, set to
"DC".

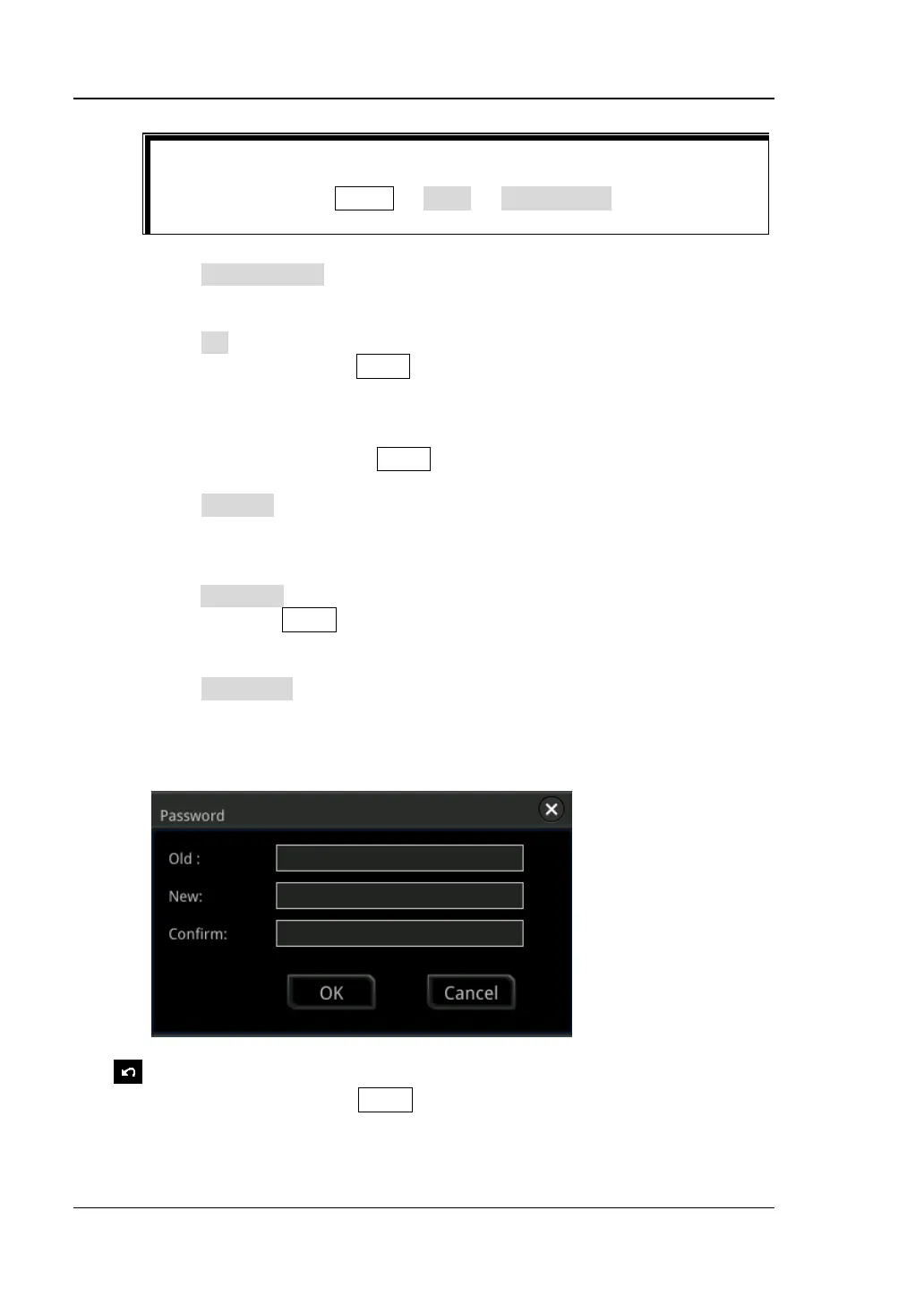

➢ Press Password, and then the password reset dialog box is displayed, as
shown in the figure below. You can reset the password. The initial password
is empty. You do not need to input the old password when you reset the
password for the first time.
âš« : Press this key to cancel the auto setting and recovers to the parameter
settings prior to pressing the AUTO key.
Note: The waveform auto setting function requires that the frequency of the signal
