RIGOL Chapter 15 Search and Navigation Function
15-4 MSO5000-E User Guide
numeric keypad to set the event No. to navigate the event. You can also use the
navigation combination keys to make navigations at a step of 1. For details, refer
to descriptions in "Navigation Function".
6. Save
You can save the event mark data to the internal memory or external USB
storage device in "*.csv" format.
Press More → Save to enter the file saving interface. Please refer to
descriptions in "Store and Load" to save the event mark data to the internal or
external memory.
Note: MSO5000-E series only supports the flash memory USB storage device of
FAT32 format.
Navigation Function
The navigation function includes the recording & playing navigation, time navigation,
and event navigation. In the horizontal control area (Horizontal) on the front panel,

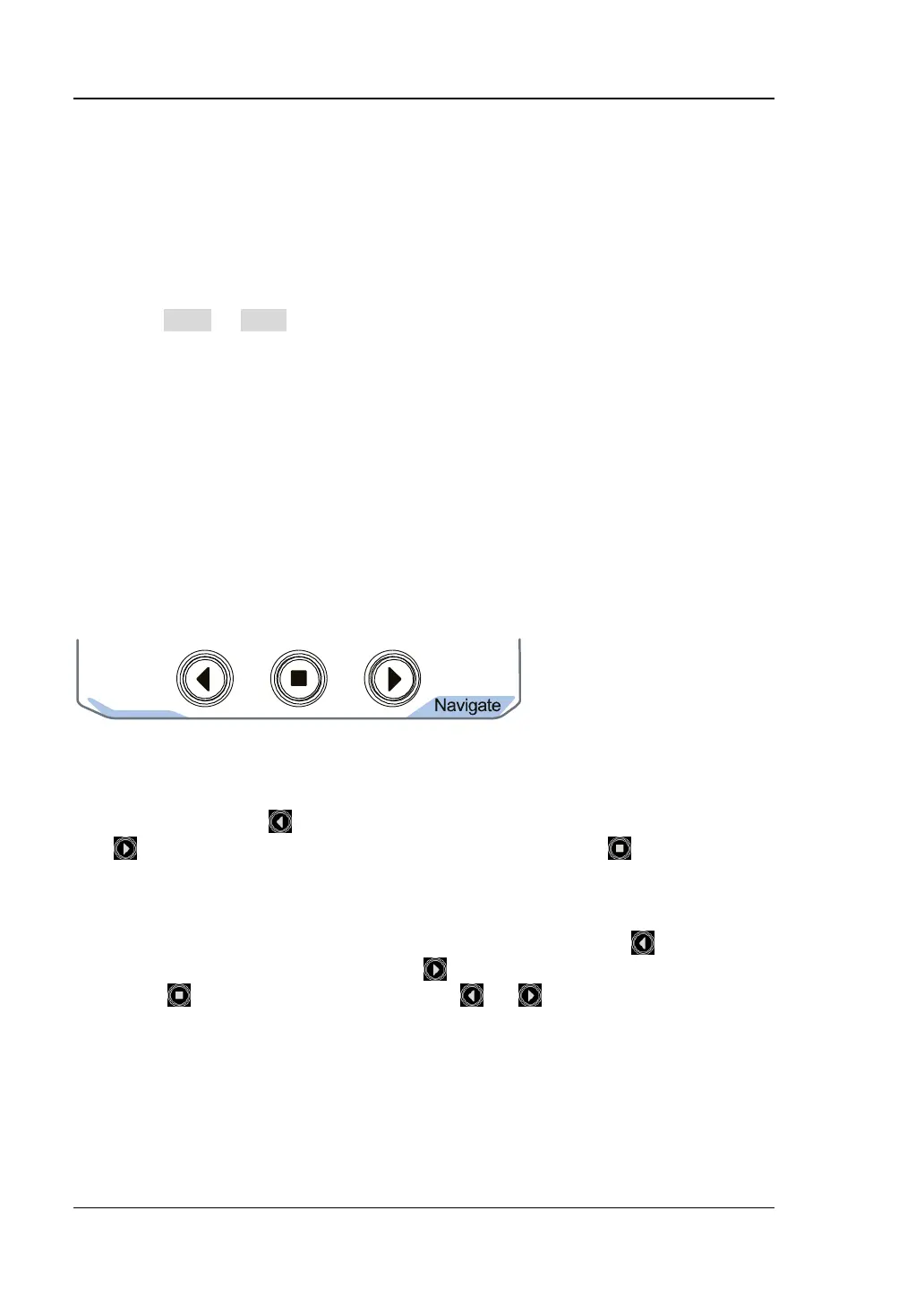

the navigation combination keys are shown as follows:
âš« Recoding & Playing Navigation
When you enable the waveform recording function and complete the waveform
recording operation, press the navigation combination keys to play the recorded
waveforms. Press to play the recorded waveforms in reverse order; press
to play the recorded waveforms in normal order; press to stop playing.
âš« Time Navigation
After the data acquisition stops, use the navigation combination keys to play the
captured data waveforms in a fast and continuous way. Press to play the
previous recorded waveforms; press to play the next recorded waveforms;
press to stop playing. Besides, press or repeatedly can accelerate
the playing of the waveforms, so that you can quickly locate the acquired data
waveforms.
Note: The time navigation function is only available when the timebase mode is
"YT" and the instrument stays in "STOP" status.
âš« Event Navigation
To Next Page
