Chapter 19 Bode Plot RIGOL
MSO5000-E User Guide 19-3
Parameter Setting

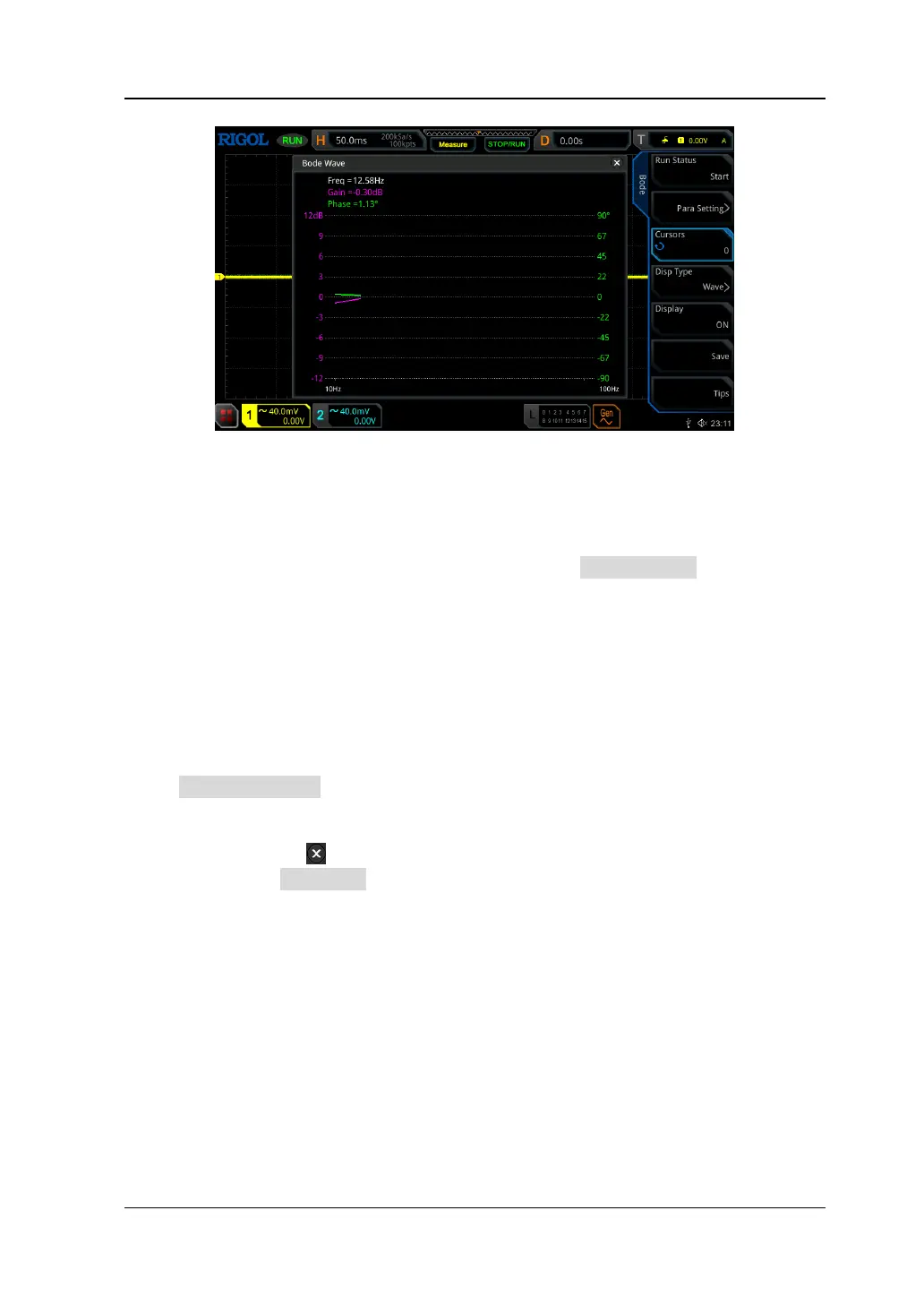

The oscilloscope will perform a test on the loop based on the parameter settings in
the current bode menu and draw the Bode plot. Press Para Setting to set the
following parameters.
Source
Outputs the sweep signal. The default source is Source1 and users cannot set it.
Amp/Freq Set.
Press Amp/Freq Set. to enter the amplitude/frequency setting menu. Then the
"Bode Set" window is displayed. You can tap the input field of various parameters on
the touch screen to set the parameters by inputting values with the pop-up numeric
keypad. Tap the icon at the upper-right corner of the "Bode Set" window to close
the window. Press Var.Amp. continuously to enable or disable the voltage amplitude
of the sweep signal in the different frequency ranges.
