Rigol MSO5000-E Series User Manual

Chapter 17 Function/Arbitrary Waveform Generator (Option) RIGOL
MSO5000-E User Guide 17-7
Exp.Fall
Press Wave, rotate the multifunction knob to select "Exp.Fall". Press down the
knob to select it. You can also press Wave continuously or enable the touch screen
to select it. At this time, you can set the parameters for the Exp.Fall waveform (as
shown in the figure below). For setting methods, refer to descriptions in "To Output
Sine".

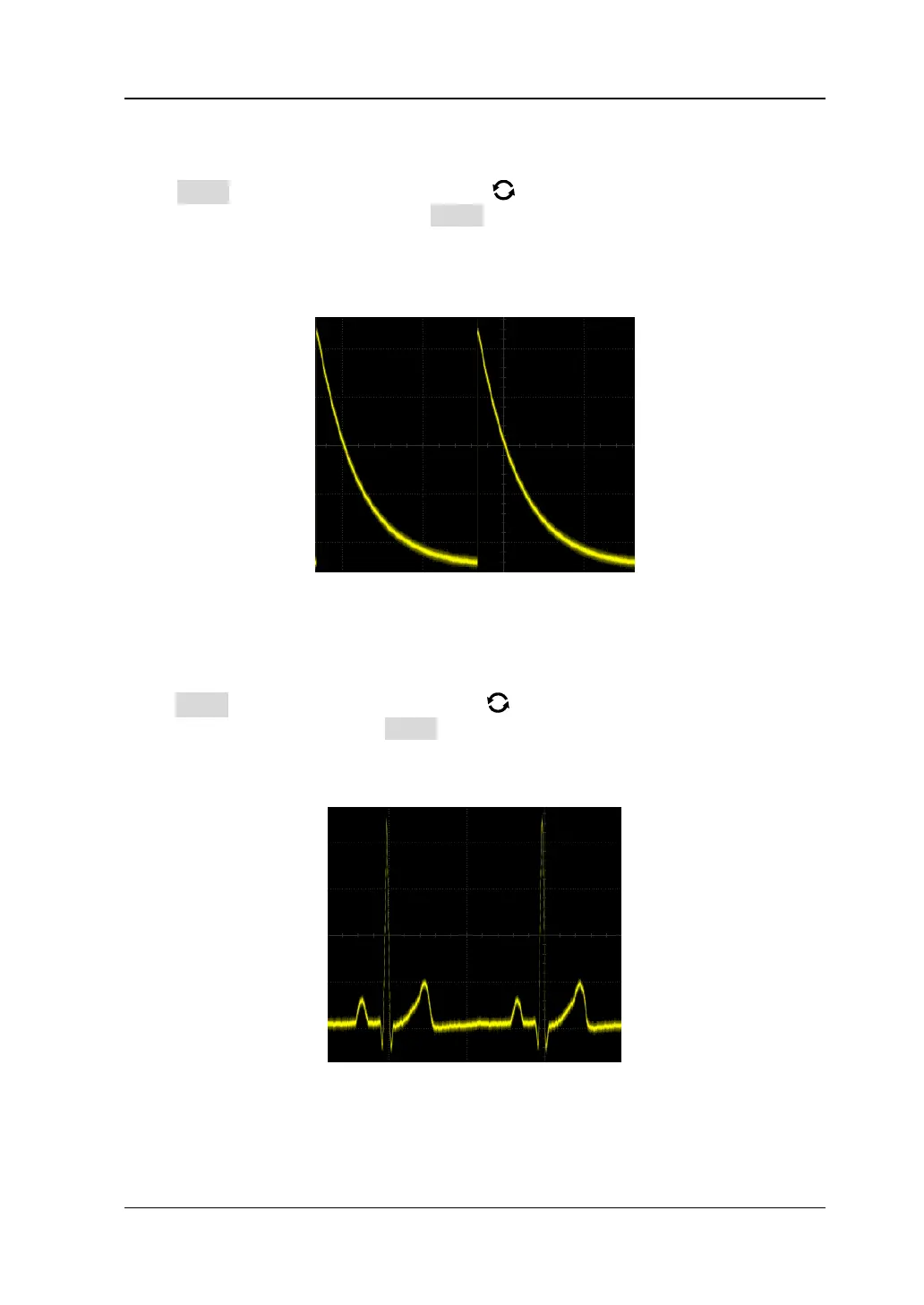

Figure 17-5 Exp.Fall
ECG
Press Wave, rotate the multifunction knob to select "ECG". Press down the knob
to select it. You can also press Wave continuously or enable the touch screen to
select it. At this time, you can set the parameters for the ECG waveform (as shown in
the figure below). For setting methods, refer to descriptions in "To Output Sine".
Figure 17-6 ECG
