RIGOL Chapter 6 Operations and Measurements
6-34 MSO5000-E User Guide
Note:
âš« Source A and Source B can be any channel among CH1-CH2, Math1-Math4, or
D0-D15. You can press Measure → Add to enter the sub-menu to set the
parameters.
⚫ The default threshold middle value is 50%. You can press Measure → Setting
to enter the sub-menu to set the parameters.
Voltage Parameters

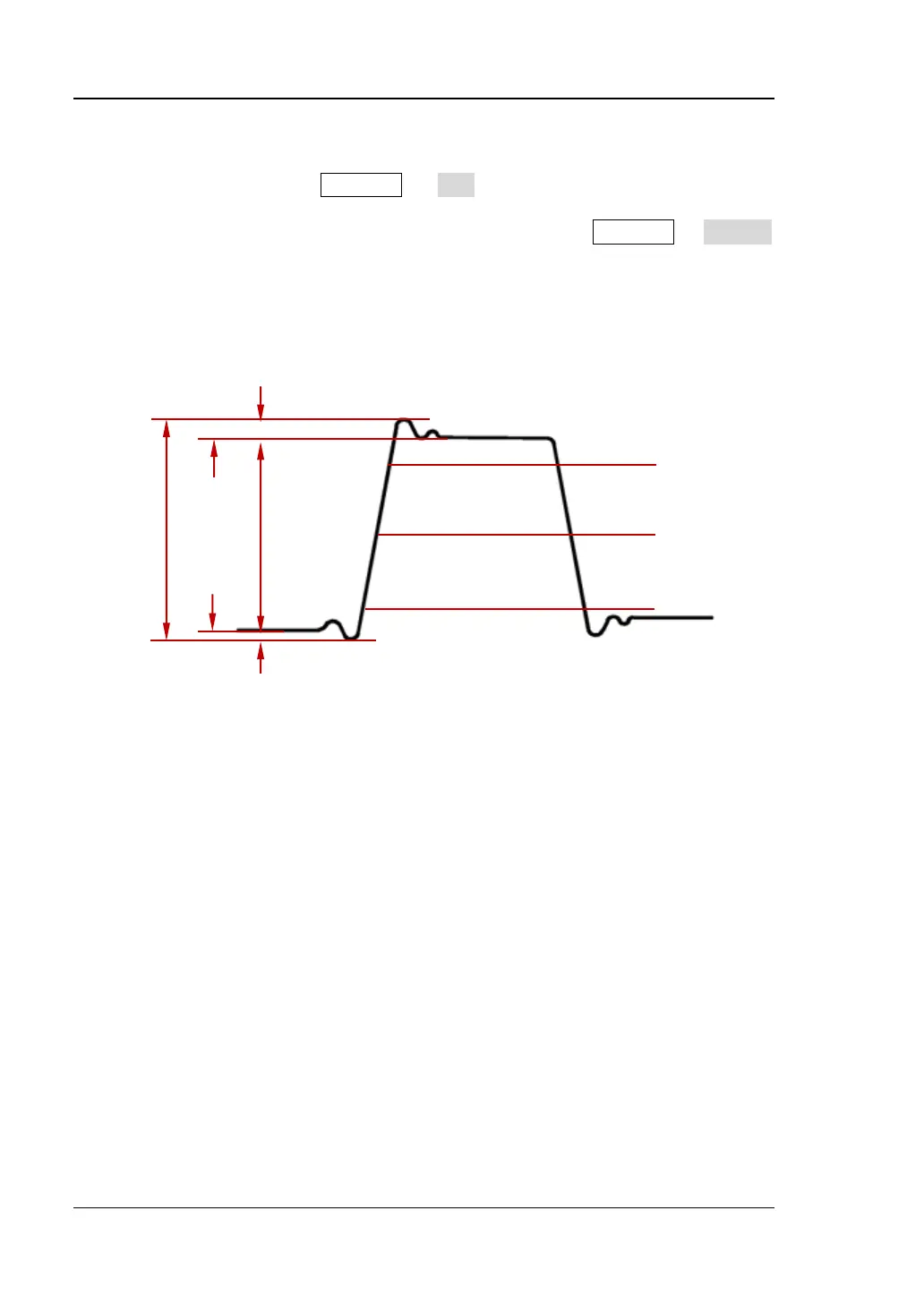

Figure 6-2 Voltage Parameters
1． Vmax: indicates the voltage value from the highest point of the waveform to
the GND.
2． Vmin: indicates the voltage value from the lowest point of the waveform to the
GND.
3． Vpp: the voltage value from the highest point to the lowest point of the
waveform.
4． Vtop: indicates the voltage value from the flat top of the waveform to the GND.
5． Vbase: indicates the voltage value from the flat base of the waveform to the
GND.
6． Vamp: indicates the voltage value from the top of the waveform to the base of
the waveform.
7． Vupper: indicates the actual voltage value that corresponds to the threshold
maximum value.
8． Vmid: indicates the actual voltage value that corresponds to the threshold
middle value.
9． Vlower: indicates the actual voltage value that corresponds to the threshold
minimum value.
10. Vavg: indicates the arithmetic average value on the whole waveform or in the
To Next Page
