Chapter 11 Protocol Decoding RIGOL

MSO5000-E User Guide 11-27

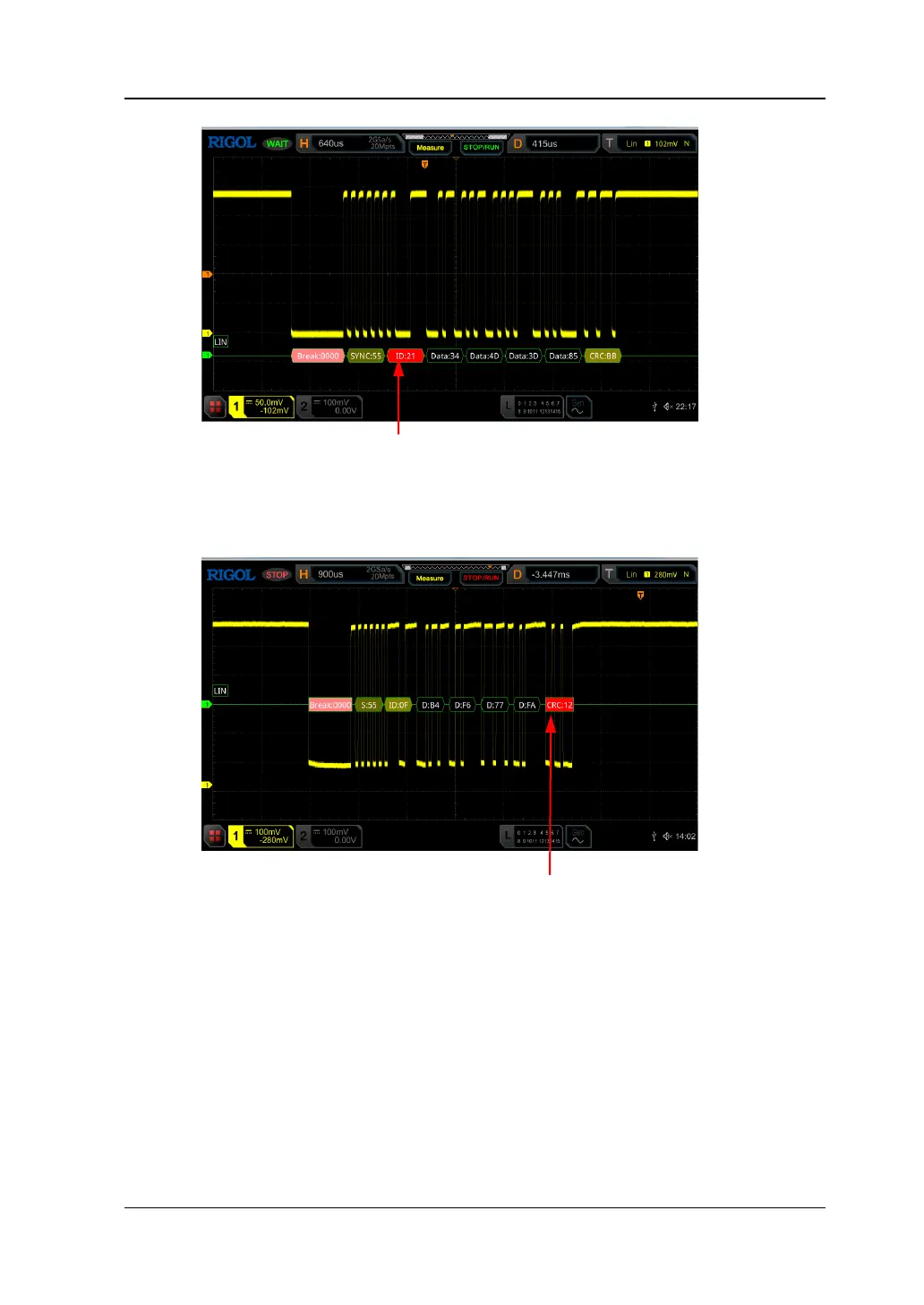

⚫ Checksum Error

If the checksum error is detected, CRC is displayed in red, as shown in the

figure below.

⚫ Sync Error

If the sync error is detected, SYNC is displayed in red, as shown in the

figure below.

Parity Error

Checksum Error
