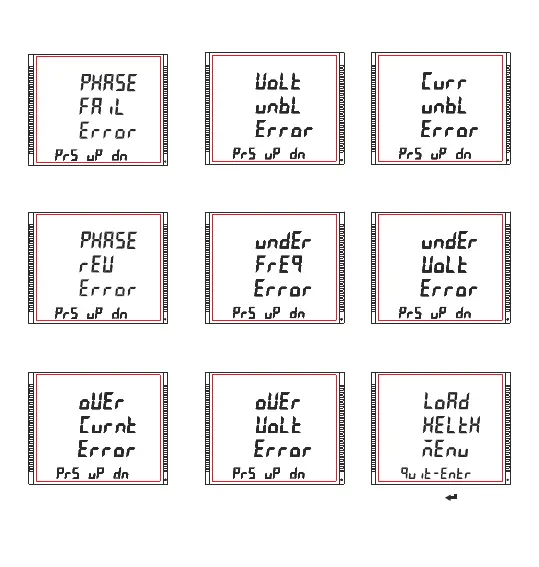

This screen indicates that phase
fail fault is present.
This screen indicates that voltage
unbalanced fault is present.
This screen indicates that current
unbalanced fault is present.
XXXXXXXXXXXXXXXX XXXXXXXXXXXXXXXX
XXXXXXXXXXXXXXXX XXXXXXXXXXXXXXXX
XXXXXXXXXXXXXXXX
XXXXXXXXXXXXXXXX
This screen indicates that phase
reverse fault is present.
This screen indicates that under
frequency fault is present.
This screen indicates that under
voltage fault is present.
This screen indicates that over
current fault is present.
This screen indicates that over
voltage fault is present.
XXXX
By pressing the “ ” key at the
quit screen takes the user out
of the Load Health Monitor
Menu Screen.
XXXX
XXXX
2.5.1. Health Monitor Fault Screens
