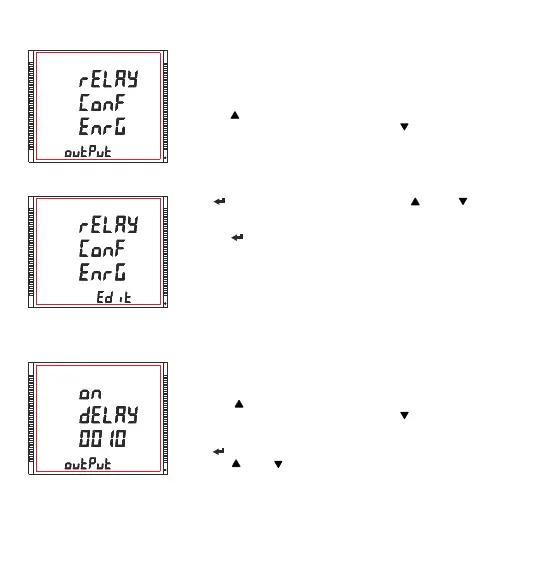

3.2.5.1.1.3.2 Timer Configuration
The option decides the relay configuration for timer output. Two options are
available:
1. EnrG : Energize on start
2. d-Enr : De-energize on start.
Pressing “ ” key confirms the selection and advances to the “On Delay”
menu (See section 3.2.5.1.1.3.3) and pressing “ ” key advances to the
“Number of Cycles” menu (See section 3.2.5.1.1.3.1).
Press “ ” key to enter the edit mode and press “ ” and “ ” keys to
navigate between the options.
Pressing “ ” key sets the selected config. and advances to the Timer
Configuration menu (see Section 3.2.5.1.1.3.2).
Note : The default setting is ‘EnrG’.
3.2.5.1.1.3.3 Timer On Delay
The value decides the time in seconds taken by the relay in timer
configuration before tripping after it is started.
Pressing “ ” key confirms the value and advances to the “Off Delay”
menu (See section 3.2.5.1.1.3.4) and pressing “ ” key advances to the
“Timer Configuration” menu (See section 3.2.5.1.1.3.2).
Press “ ” key, prompt for the first digit.
Press the “ ” and “ ” keys to scroll the values of the first digit.
XXXXXXXX
XXXXXXXX
XXXXXXXX
Relay Configuration Edit Mode
57
