Press the “ ” key to advance to next digit.
Similarly, enter second, third and fourth digits also.
After the fourth digit is entered, pressing “ ” key sets the value and
advances to “On Delay” screen (see Section 3.2.5.1.1.3.3).
The value for this parameter can range from 0001 to 9999 seconds.
Note : The default value is ‘10’ seconds.
3.2.5.1.1.3.4 Timer Off Delay
The value decides the time in seconds taken by the relay in timer
configuration before coming out of the trip state after it has tripped.
Pressing “ ” key confirms the value and advances to the “Quit Timer
Output” menu (See section 3.2.5.1.1.3.5) and pressing “ ” key advances
to the “On Delay” menu (See section 3.2.5.1.1.3.3).
Press “ ” key, prompt for the first digit.
Press the “ ” and “ ” keys to scroll the values of the first digit.
Press the “ ” key to advance to next digit.
Similarly, enter second, third and fourth digits also.
After the fourth digit has been entered, pressing “ ” key sets the value
and advances to Off Delay screen (see Section 3.2.5.1.1.3.4).
The value for this parameter can range from 0001 to 9999 seconds.
Note : The default value is ‘10' seconds.
XXXXXXXX
XXXXXXXX
XXXXXXXX

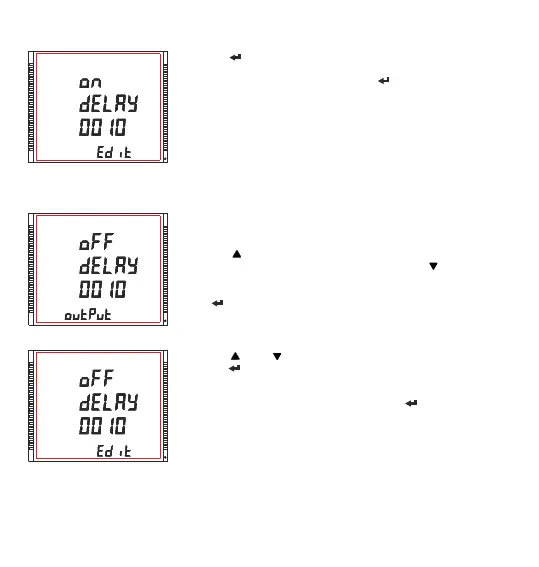

OFF Delay Edit Mode
ON Delay Edit Mode
