11 - AUXILIARY EQUIPMENT ON BOARD 304
11.2 ANCHOR WINCH
The yacht is equipped with two winches that moves the anchors housed in
the bow.
The anchor chains glides into the yacht through the chain guides and reach-
es the anchor winches, then winds around the wildcat and glides into the
chain pits.
The anchor winches are equipped with control for chain displacement in
both directions and with manual brake to lock the chain during mooring.
The winches are equipped with a clutch separating the drive shaft from the
wildcat; this allows using it as a warping winch for pulling a line.

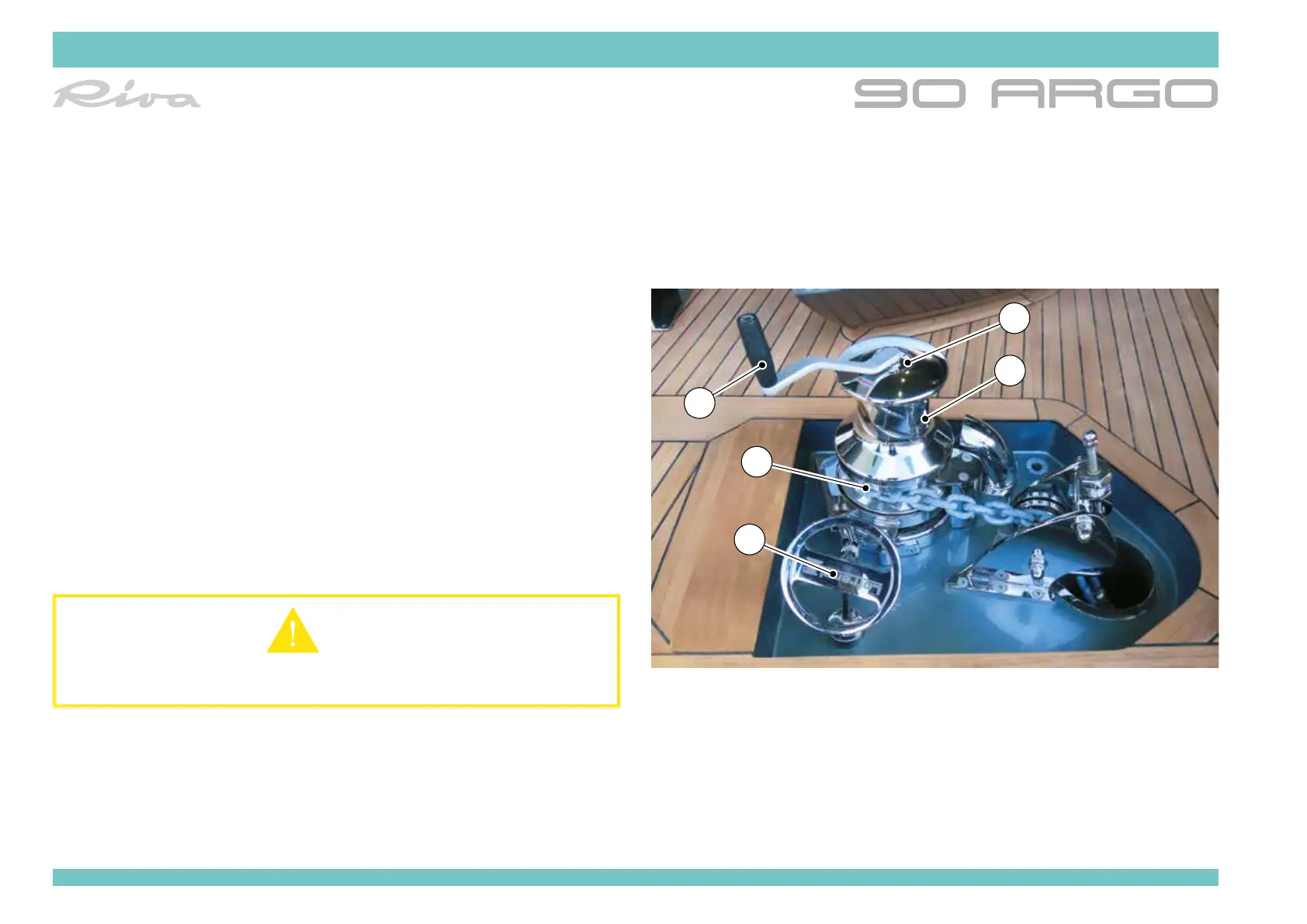

1. Bushing for lever engagement
This device allows lever engagement.
2. Barrel
This device allows pulling a line.
3. Wildcat
This device allows weighing and lowering the anchor.
4. Wildcat locking wheel
This device allows locking the wildcat rotation for the chain fastening.
5. Lever
Adjusts manually the clutch opening and closing, and releases the wildcat.
CAUTION
RIVA is exempted from any liability for any accidents or damage to per-
sons or property caused by incorrect use of the device.
