Installation site requirements
18 © robatherm
Width support
The positioning of the width supports
(C) depends on the AHU. A width
support (C) is required at each
separation point (D), for pan divisions,
for heavy components (e.g., fans) and
for long components l ≥ 1.5 m (e.g.,
silencers).

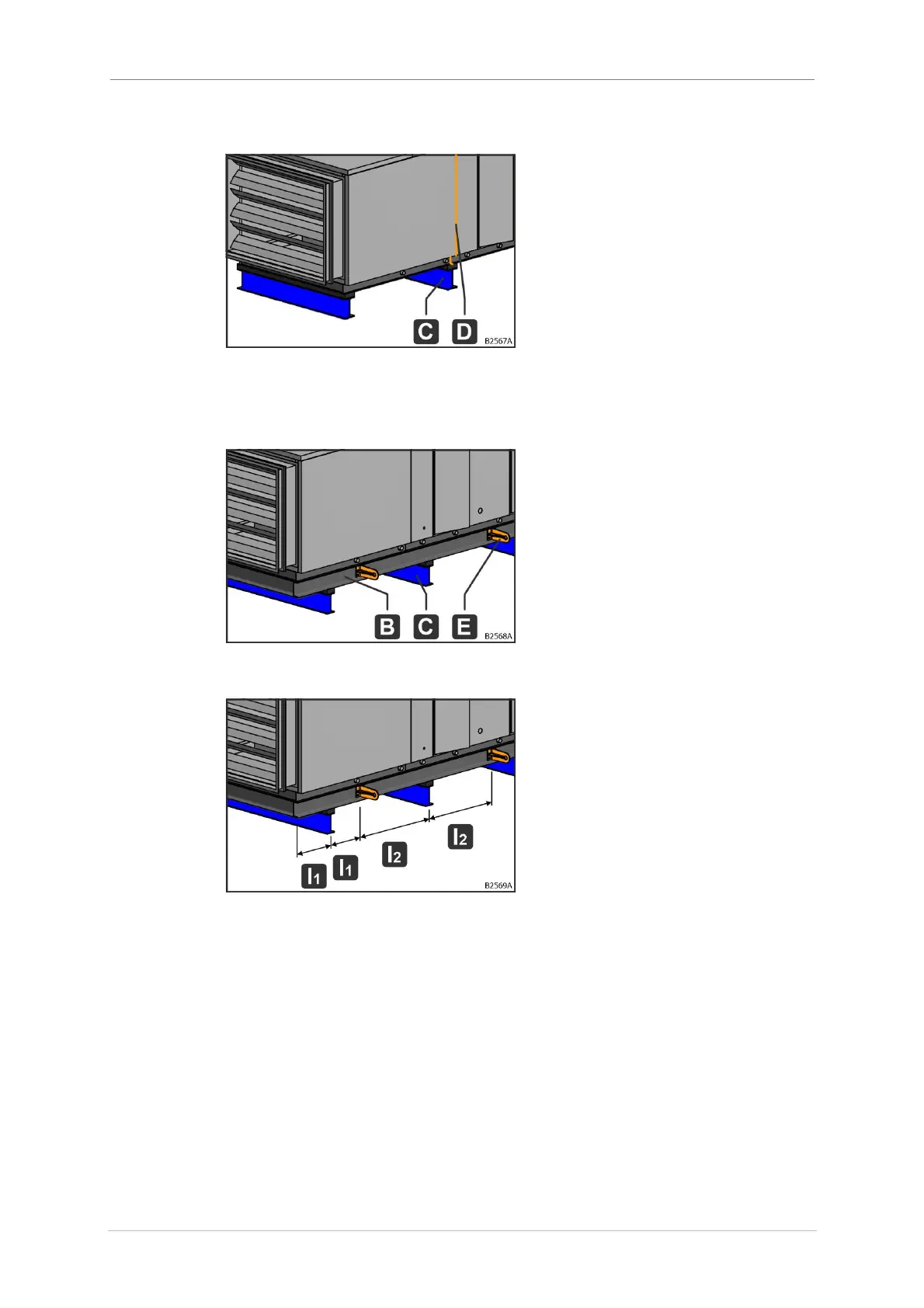

Fig. 10: Width support
Width support for units on DIN frames
The positioning of the width supports
(C) depends on the AHU and the DIN
frame (B). For units on DIN frame, a
width support (C) is required centrally
between the end of the unit and the
transport loop (E) (l1 - l1) and centrally
between two transport loops (E) (l2 -
l2).
Fig. 11: Width support for units on DIN
frames (identification)
Fig. 12: Width support for units on DIN
frames (dimensions)
