Installation site requirements
© robatherm 19
Foundation spots
A foundation spot is a localized support point for the installation of the AHU.
The positioning of the foundation spots
(F) depends on the AHU. A foundation
spot (F) is required at each separation
point (D), at pan divisions, for heavy
components (e.g., fans) and for long
components of l ≥ 1.5 m (e.g.,
silencers). The distance (T) of the on-
site foundation spots (F) in the width
direction must not exceed T ≤ 2.5 m.
The maximum load per foundation spot
(F) is 500 kg.

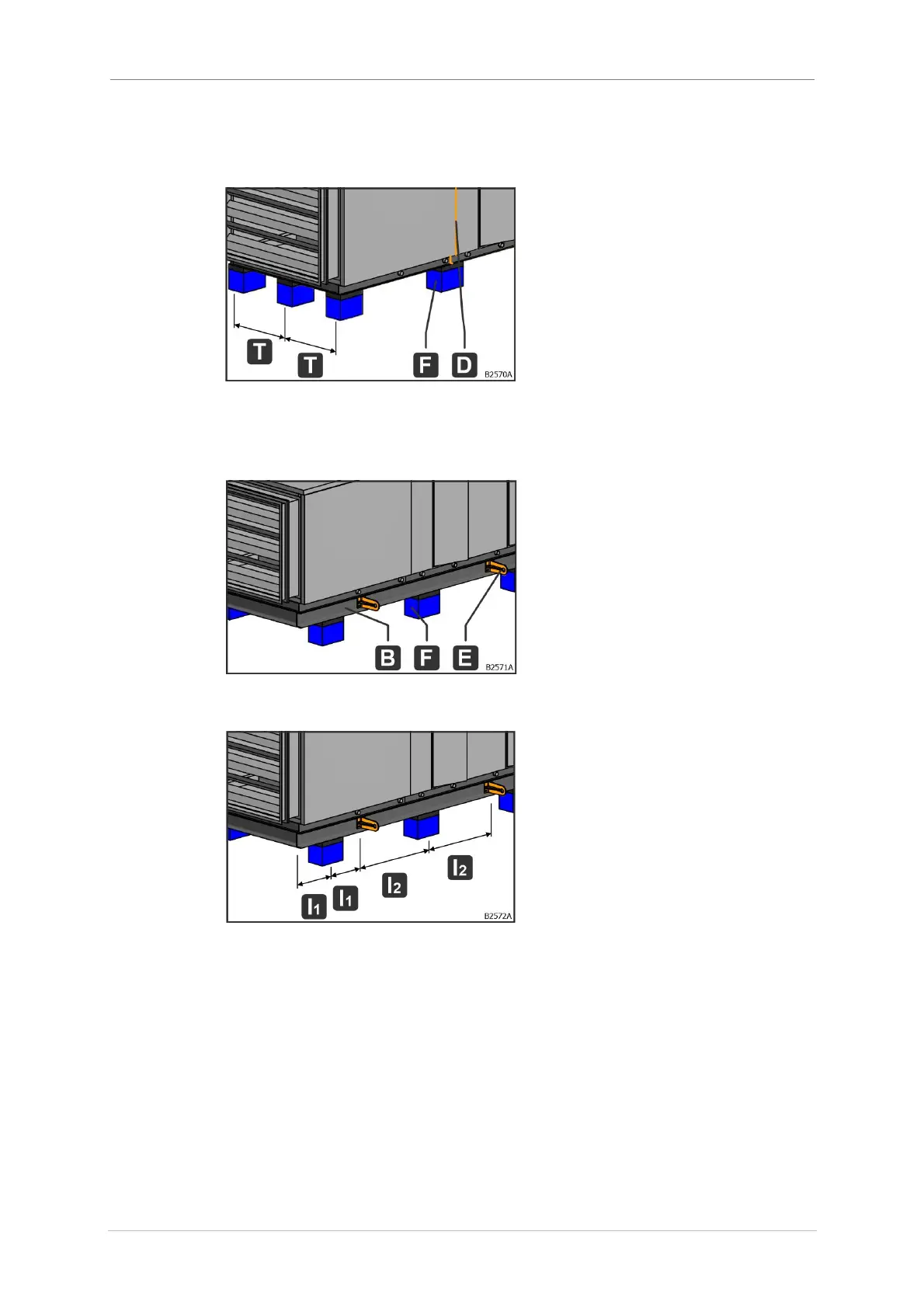

Fig. 13: Foundation spots
Foundation spot for units on DIN frame
The positioning of the foundation spots
(F) depends on the AHU and the DIN
frame (B). For units on DIN frame, a
foundation spot (F) is required centrally
between the end of the unit and the
transport loop (E) (l
1
– l
1
) and centrally
between two transport loops (E) (l
2
– l
2
).
Fig. 14: Foundation spot for units on
DIN frame (designations)
Fig. 15: Foundation spot for units on
DIN frame (dimensions)
