Unit assembly
© robatherm 51
3. Place the center (C) of the
additional frame between two
main frames (A) according to the
technical drawing.

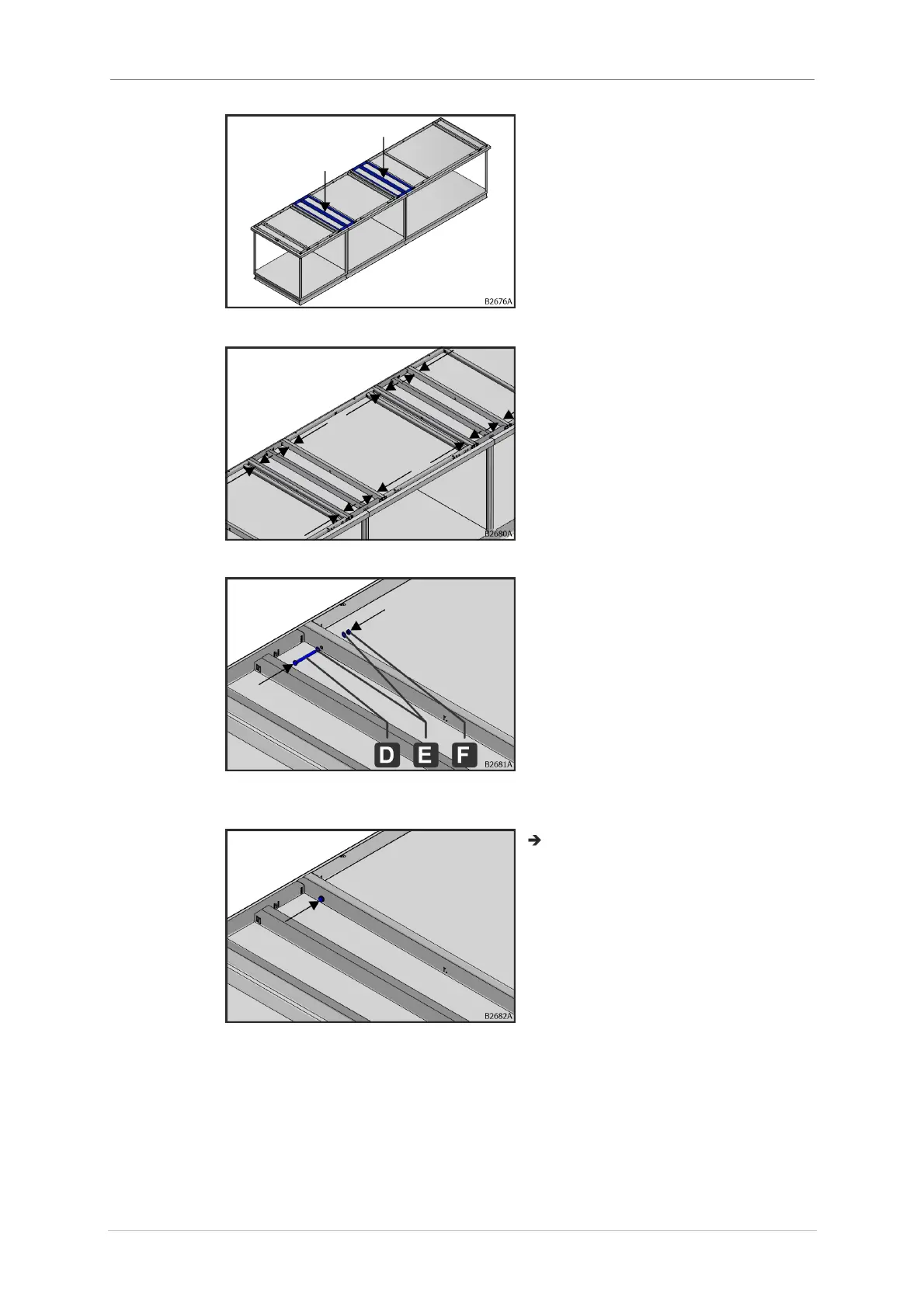

Fig. 88: Placing additional frame
4. Connect the main frame and the
additional frame with hexagonal
screw (D), washer (E) and
hexagon nut (F).
Fig. 89: Joining additional frame
Fig. 90: Detail of the additional frame
screw fitting
Additional frame in the center (C)
is mounted correctly.
Fig. 91: Mounted additional frame
Mount upper AHU (see chapter "Connection of AHUs with roof rack frame", page 26).
