Unit assembly
52 © robatherm
Protection roof
Weatherproof devices can be equipped with protection roofs.
The following install material is included in the delivery:
• Protection roof with mounted transport lugs
• Foam tape, 20x4 mm, PE foam, anthracite
• Self drilling screw with lens head DIN 7504, 6.3x80 mm, Torx, galvanized steel
• Plug 13.0x11.0x5.0 PE RAL 9010/pure white
A protection roof
B transport lug

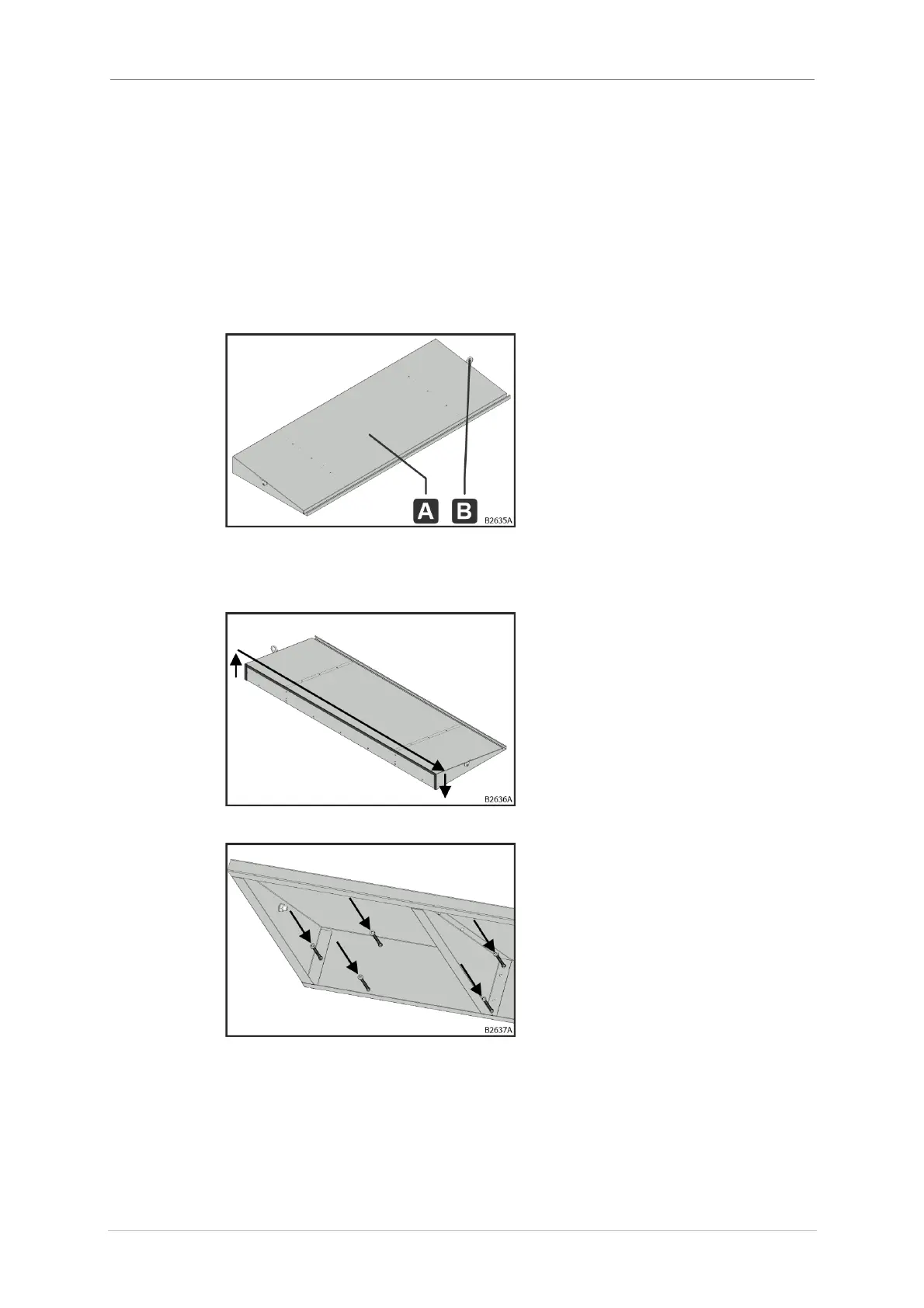

Fig. 92: Scope of delivery, protection
roof
1. Cover protection roof sides and
top with foam tape, 20x4 mm, PE
foam, anthracite.
Fig. 93: Taping
2. Insert the supplied self drilling
screw with lens head DIN 7504,
6.3x80 mm, Torx, galvanized
steel.
Fig. 94: Insert screws first
