Unit assembly
54 © robatherm
Self drilling screw with lens head
DIN 7504, 6.3x80 mm, Torx,
galvanized steel, mounted.

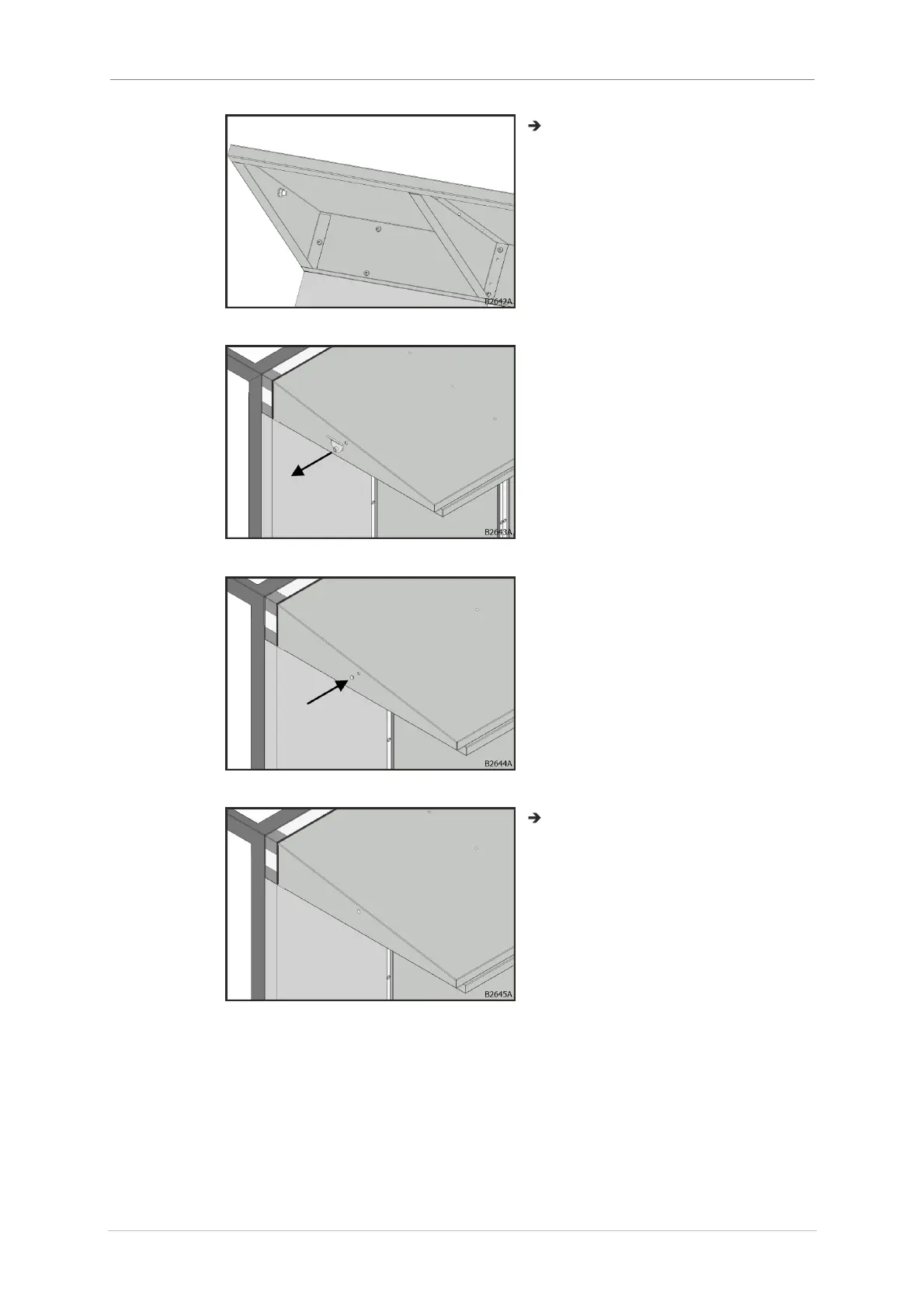

Fig. 99: Screws fitted
6. Disassemble transport lugs.
Fig. 100: Remove transport lugs
7. Seal holes with plugs
13.0x11.0x5.0 PE RAL 9010/pure
white.
Fig. 101: Sealing holes
The protection roof is mounted.
Fig. 102: The protection roof is mounted
