robatherm RM - Page 57

Filter component
© robatherm 57
2. Place the filter (A) between the
threaded bolts (E).

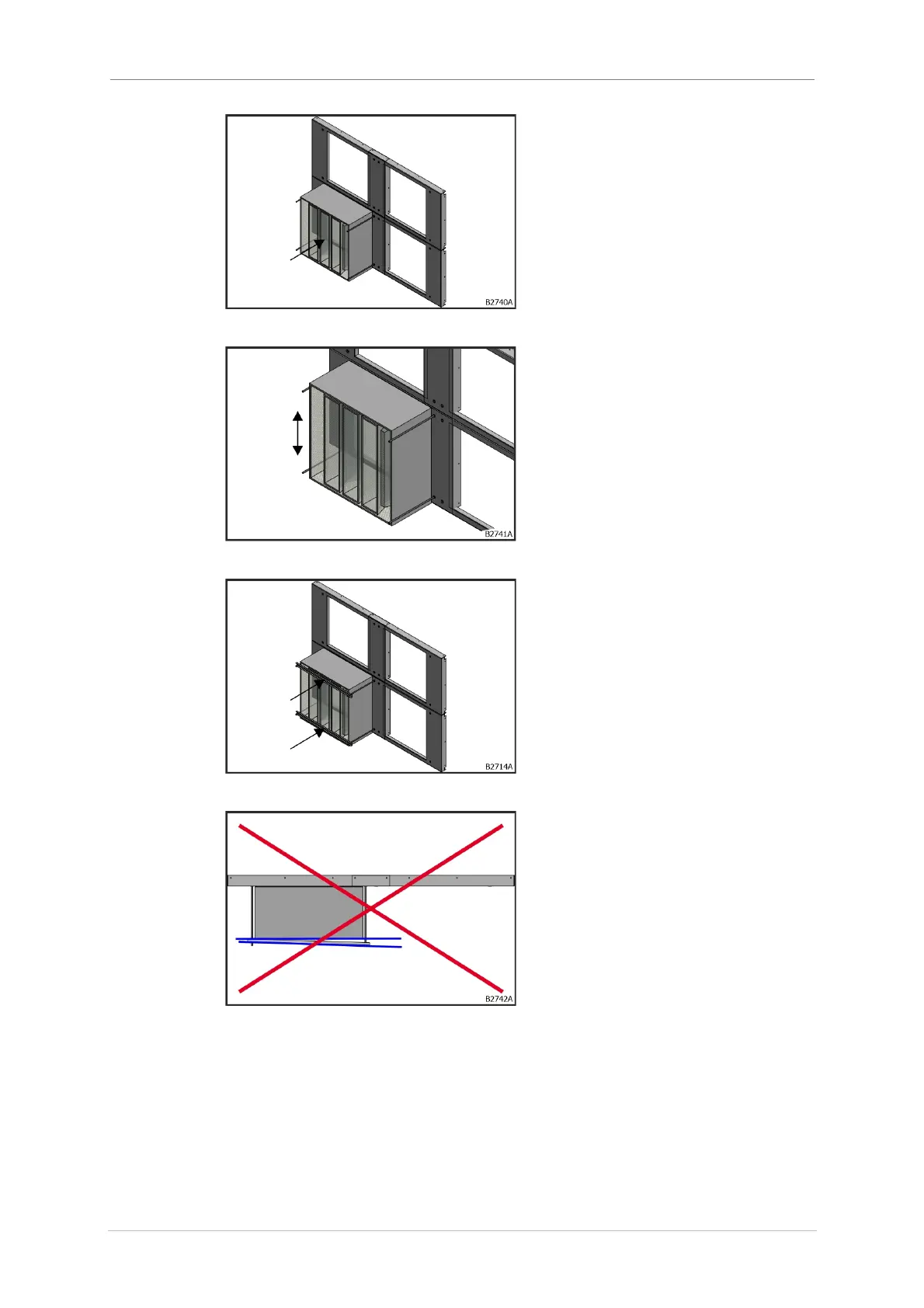

Fig. 107: Placing the filter
3. Align the filter (A) so that the
lower edge of the filter ends 1
mm above the lower edge of the
filter wall (G).
Fig. 108: Aligning the filter
4. Slide 2 x clamping profiles (B)
onto threaded rods (E).
Fig. 109: Sliding clamping profiles on
5. Align the clamping profiles (B)
parallel to the filter wall (G).
Fig. 110: Incorrect orientation of
clamping profiles
