Filter component
58 © robatherm
6. Screw 4 x washer (D) and 4 x
nut (C) evenly onto threaded
rods (E).

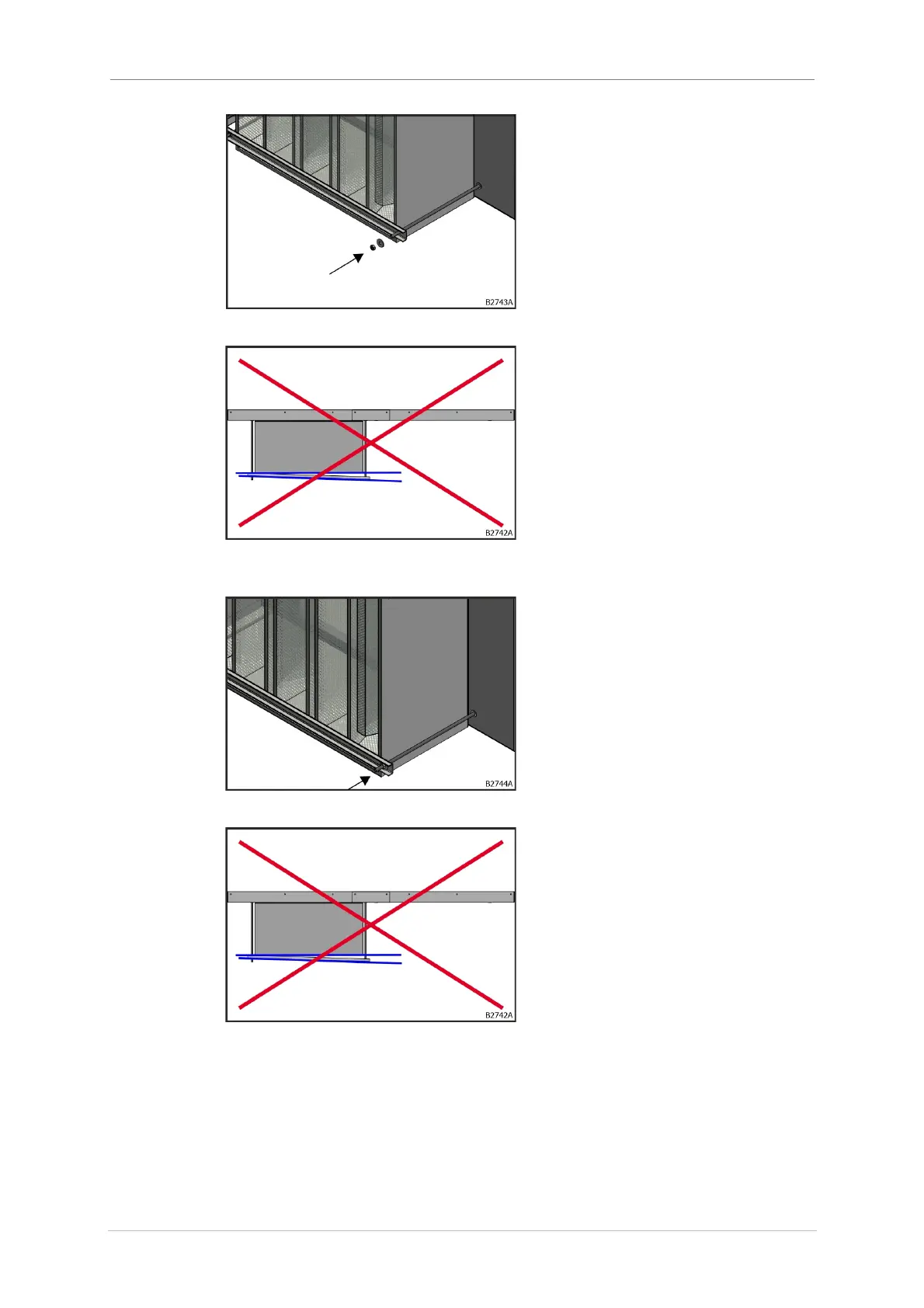

Fig. 111: Screw on washer and nut
7. Align the clamping profiles (B)
parallel to the filter wall (G).
Fig. 112: Incorrect orientation of
clamping profiles
8. Fasten nuts (C) with a tightening
torque of 2 Nm.
Fig. 113: Tightening torque 2 Nm
9. Align the clamping profiles (B)
parallel to the filter wall (G).
Fig. 114: Incorrect orientation of
clamping profiles
