13
Only e󰀨ects assigned to the jog-wheels will
appear on this screen.
E󰀨ects assigned to the faders will not be
shown.

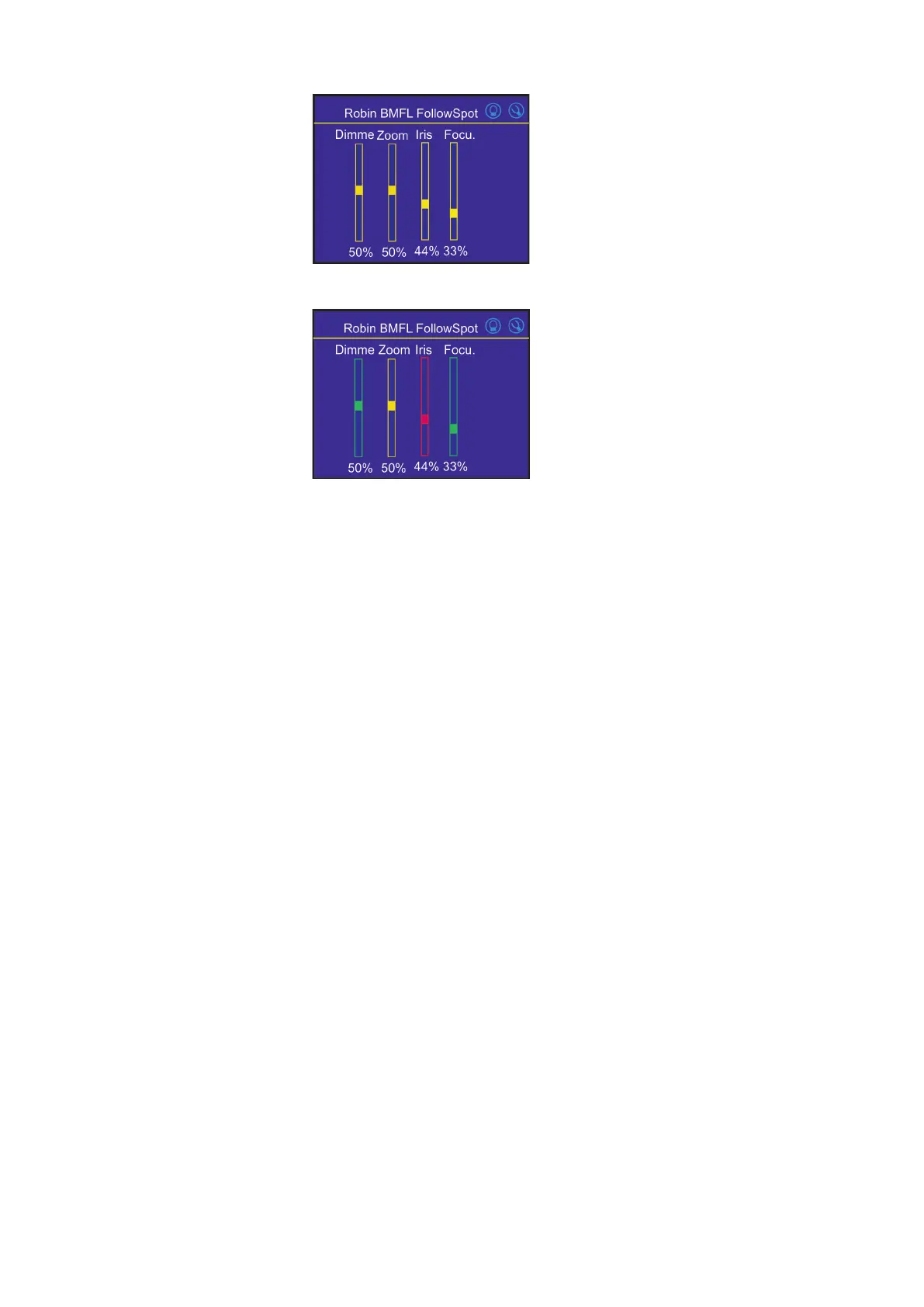

4.Touch the [cancel] icon and than [back arrow] icon. The screen with e󰀨ect faders will appear.
E.g.
Sensitivity of the jog-wheels assigned to the e󰀨ects can be set at three levels: low, medium and high.
The levels of the sensitivity are marked in colour on the screen:
low level - red slider
medium level - yellow slider
high level (most accurate)-
green slider
In order to switch an jog-wheel to desired level of sensitivity, press and hold its activating button (8/10/16/18)
until the colour of fader is changed.
E󰀨ects assigned to the four jog-wheels and two faders on the handlebars have a priority over DMX values
coming from a DMX controller.
Functionality of the RoboSpot can by restricted by means of commands on the channel Power/Special Functions
(240-255 DMX) of connected xture.
To control desired e󰀨ect
1.Use its slider on the screen or press the activating button for its jog-wheel and use this jog-wheel or use a
corresponding fader.
The FollowSpot Controller overwrites xture channels which are mapped to its jog-wheels or faders, excepting
a dimmer. The dimmer value is a combination of value coming from DMX console and a value on the Follow-
Spot Controller (e.g. DMX console sends 180 DMX, jog-wheels shows 50%, real DMX value coming to xture
is 90 DMX).
In case that the DMX console does not send DMX data, the FollowSpot Controller allows full range (0-255
DMX) of dimmer control.
To release an e󰀨ect from the jog-wheel (fader)
1.Touch desired e󰀨ect from the list of e󰀨ects in the menu "Functions Mapping".
2.Touch the option "Unlink".
3.The e󰀨ect will be displayed in a white colour.
The item "All" allows you to release all assigned e󰀨ects at one go.
