5.2 Inuence of the RoboSpot on the xture channels
The general rule (with a few exceptions described in the table below) is the RoboSpot controls mapped
channels (functions) on jog-wheels or faders in range which allows the FollowSpot Controller (see the chapter
6.1 Menu Functions Mapping).
Non-mapped channels (functions) are subject to full control of a desk except:
Colour channels (CMY+CTO and RGB(W)+CTO) if Colour Buttons are active.
Zoom/focus in Multi Device Control if the function Auto Zoom/Foc. is on.
Pan/tilt.
Pan/tilt speed (use the Track slider in the Slider menu on the screen to set desired pan/tilt speed).
Behaviour of the shutter channel:
Closed shutter on the desk closes light output on a xture connected to the RoboSpot.
Open shutter on the desk - light output of the connected xture can be closed by the BlackOut button
on the FollowSpot controller.
Table of behaviour of some mapped channels (functions) on the RoboSpot (if the RoboSpot control is fully
enabled-see the following page).
Mapped channel
(function)
Behaviour of channel Comment
Single Device Control Multi Device Control (MDC)

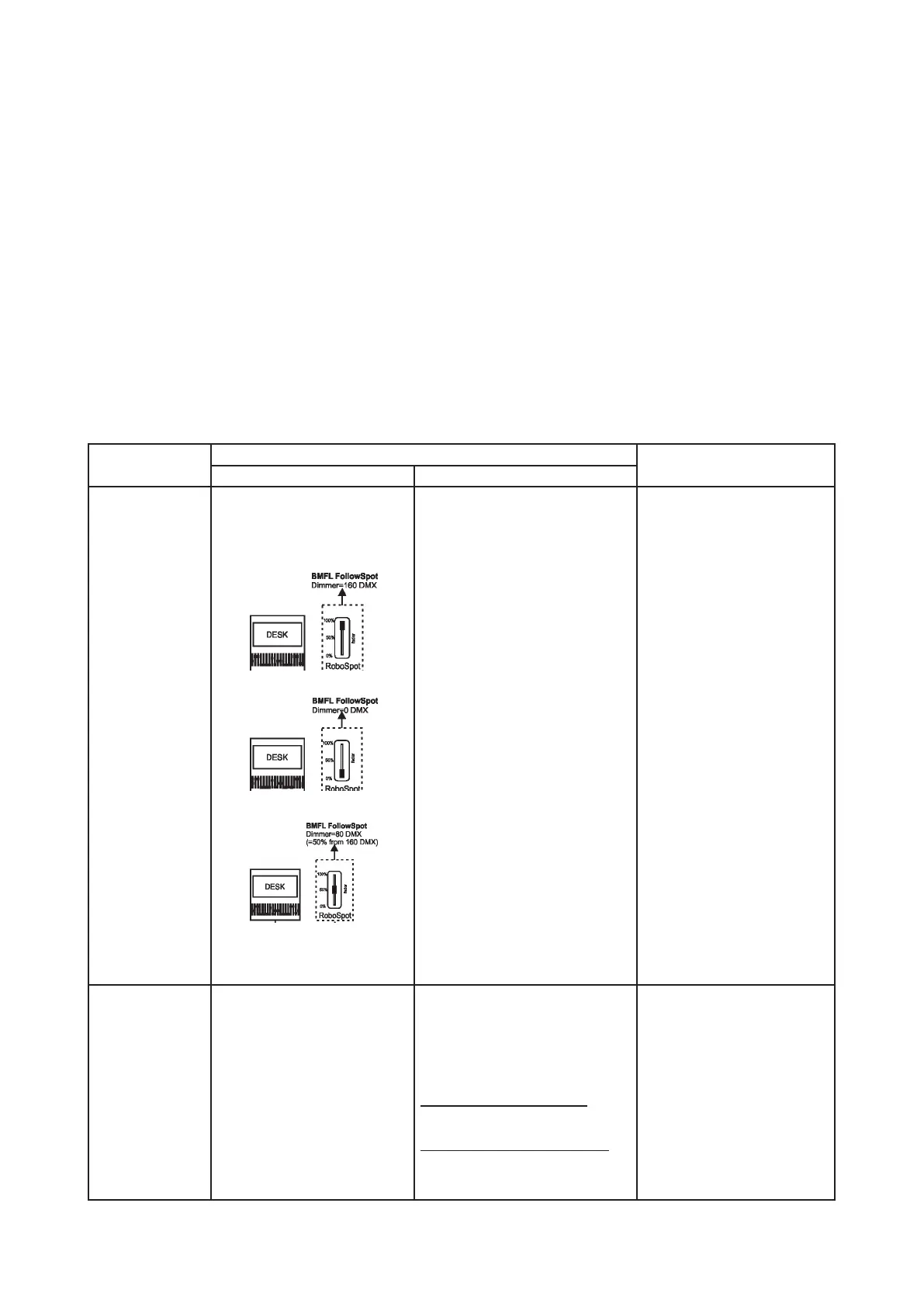

Dimmer Jog-wheel or fader* of the RoboSpot
controls a light intensity from 0% to
the value set at desk.
Examples:
To get max. light intensity, set desk
dimmer =100% and the RoboSpot
fader=100%.
The same as at Single Device Control Exception: the RoboSpot takes
full control over dimmer during
the process "Setup MDC" (menu
"Multi. Dev. Control").
Zoom, Focus Jog-wheels or faders* allow full
control in range of 0-100%.
1. Auto Zoom/Foc.= O󰀨
The same as at Single Device Control.
2. Auto Zoom/Foc.= On
MDC takes control over zoom and focus
regardless of it if they are mapped on
jog-wheels or faders or not.
If zoom and focus are mapped - o󰀨sets
set on jog-wheels or faders are added to
automatically calculated values.
If zoom and focus are not mapped -
automatically calculated values are
used (o󰀨sets on jog-wheels or faders
are set to 0).
Auto Zoom/Foc. is the function in
the menu "Multi. Dev. Control".
* depends on functions mapping to the control elements of the RoboSpot.
