Roberine F3 - Description; Equipment and Mowing Units

4 Description
Your machine is the mower F3 or R3. Both models can be provided with either an ROPS or a cabin.

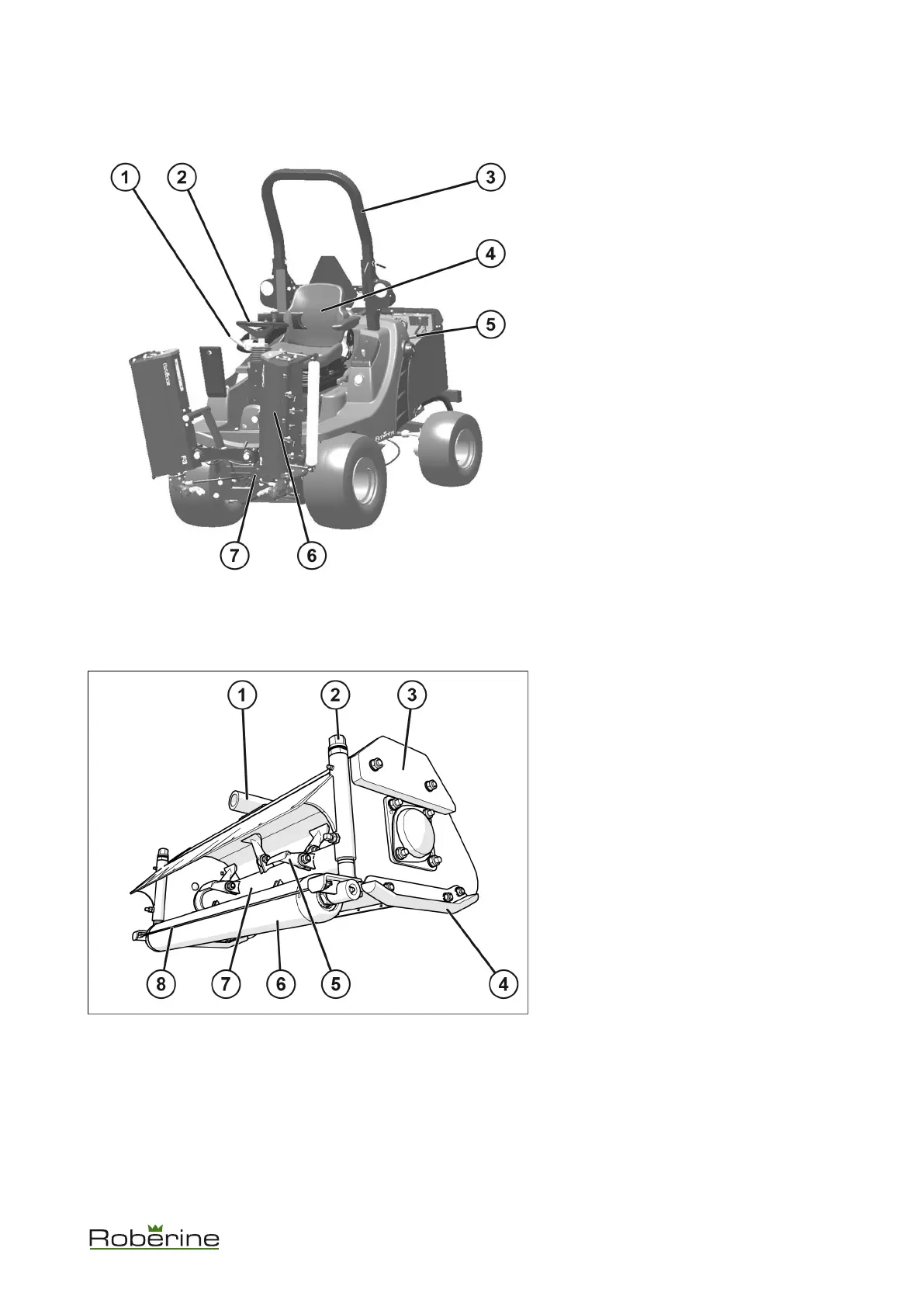

1. Command arm: This is where all the
operating buttons and the display are
located.
2. Steering wheel.
3. ROPS. The Roll Over Safety Structure
prevents entrapment should the machine
roll over.
4. Seat.
5. Engine. The engine powers the mower
6. Mowing units. These are either flail units
(F3) or reel units (R3)
7. Locking lever
4.1 Equipment
4.1.1 Description mower F3
1. Pivot
2. Cutting height adjuster
3. Counter weight
4. Slide shoe
5. Flail
6. Roller
7. Rotor shaft
8. Scraper
