1. Clean the mowing units. See Cleaning
the mowing units on page 49.
2. Place a flat plate under the mowing units
or make sure the units are located above
a flat surface.

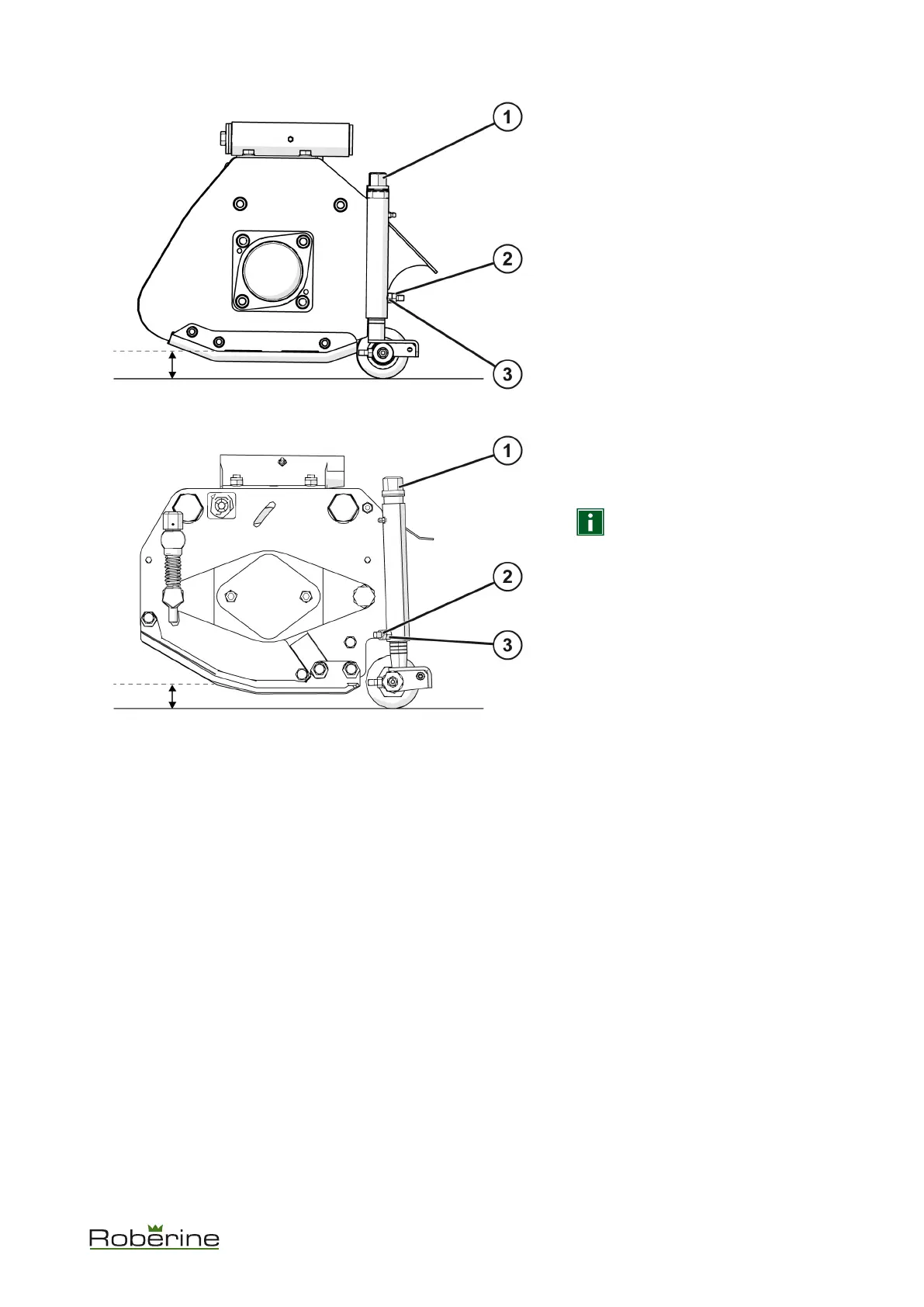

3. Loosen nut (3).
4. Loosen nut (2) a quarter of a revolution.
5. Set the required cutting height by turning
bolt (1):
• Clockwise to lower the cutting height.
• Anticlockwise for a higher cutting
height.
• Each full rotation equals 2 mm height
adjustment.
6. Measure the cutting height:
• F3: from the top of the drag rod
(minus 5 mm) to the ground.
• R3: from top of the bed knife to the
ground.
NOTICE Measure the cutting
height on both sides of each
unit for an equal cut.
7. Tighten bolt (2) with 25 Nm
8. Tighten bolt (3) with 25 Nm
7.4 Use of the weight transfer system
Use the weight transfer system to increase traction on the wheels or the mowing units.
Operating 33
