Turning on the free-wheeling mechanism
Before you begin:
1. Block the wheels.

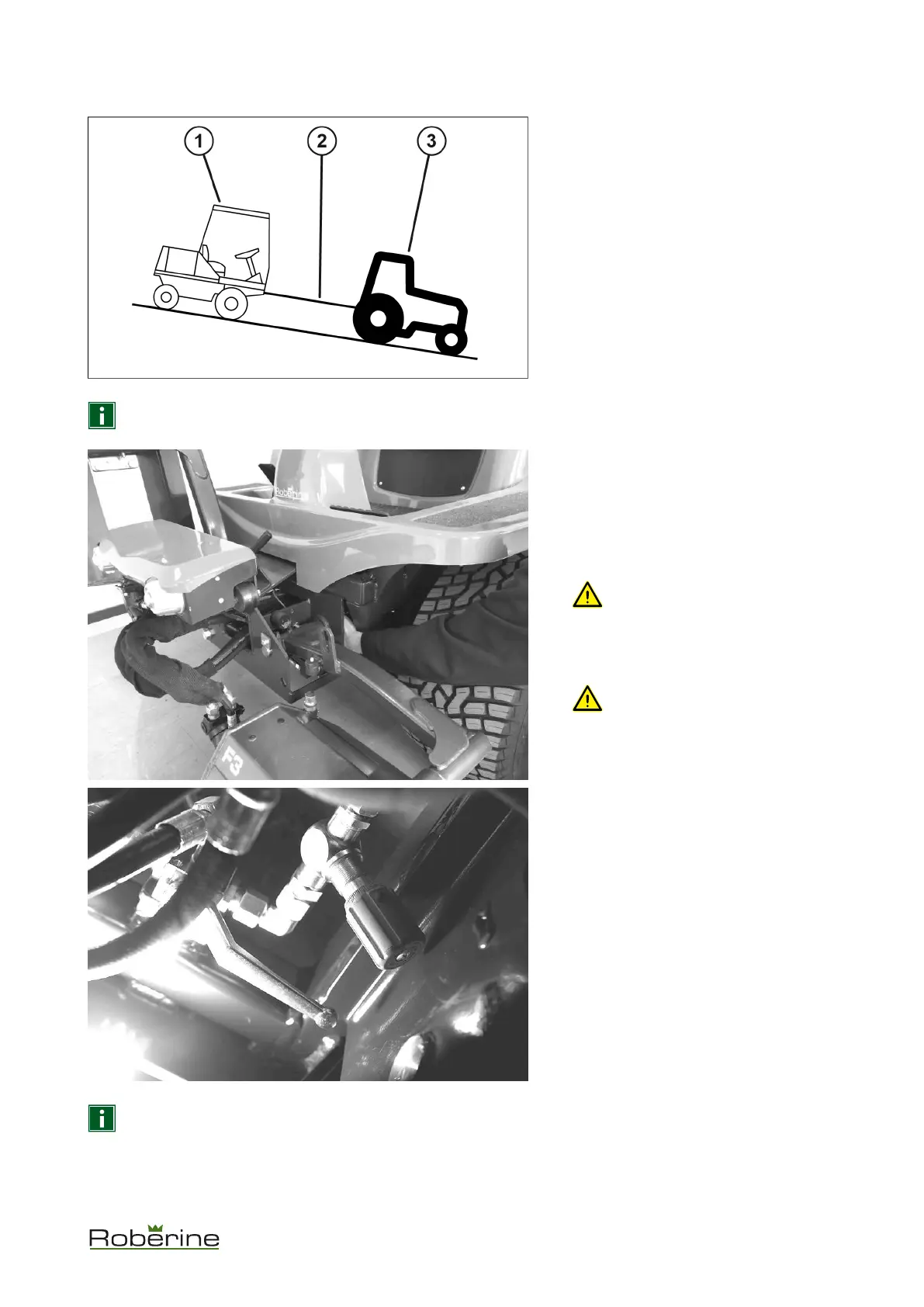

2. Attach the mower (1) onto another
machine (3) using a rigid tow bar (2) to
prevent unintentional free-wheeling of
the mower.
NOTICE The free-wheeling mechanism can be accessed at the front of the machine on the left-hand side
between the mower unit and the front wheel. Nothing has to be disassembled to access the mechanism.
1. Place the wheels in the straight-ahead
position by turning the steering wheel.
2. Rotate the tap clockwise until it is
tightened.
3. Place the lever at a 90° angle to the
driving direction.
CAUTION! The machine can
now move unrestrictedly.
4. Rotate the steering wheel 90° clockwise
until you feel a slight resistance.
CAUTION! Do not use strong
force to rotate the steering
wheel, this can damage the
front wheel motors.
5. Place the lever back in the driving
direction.
NOTICE The machine can now be towed. Remember that the machine now steers heavily, has a maximum
speed of 2 km/h and a maximum distance of 1,000 m.
Operating 35
