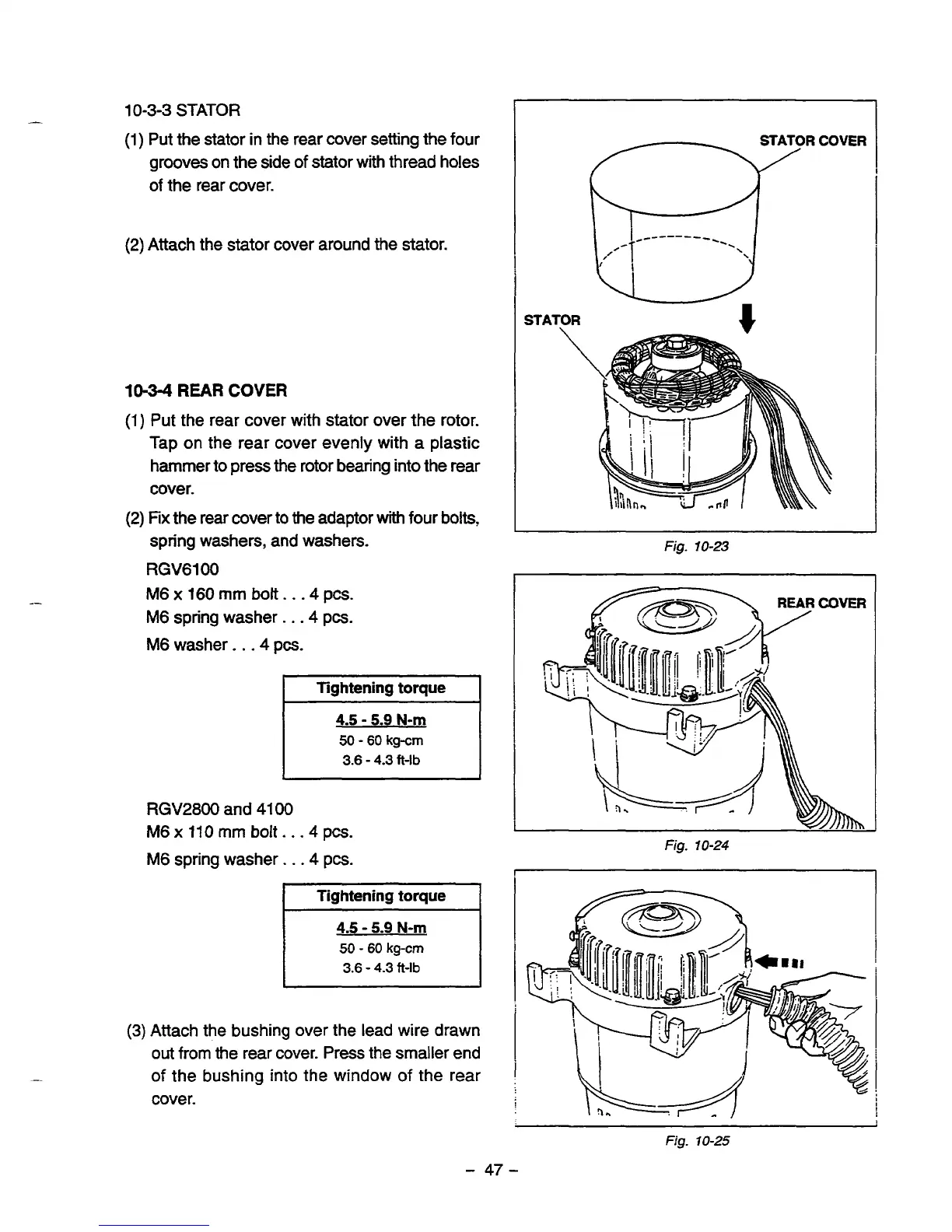

10-3-3
STATOR
(1)
Put the stator in the rear cover setting the four
grooves on the side of stator with thread holes
of the rear cover.
(2)
Attach the stator cover around the stator.
10-3-4
REAR
COVER
(1)
Put the rear cover with stator over the rotor.
Tap
on
the rear cover evenly with
a
plastic
hammer to press the rotor bearing into the rear
cover.
(2)
Fix
the rear cover to the adaptor
with
four bolts,
spring washers, and washers.
RGV6100
M6x160mmbo
It...
4pcs.
M6
spring washer.
.
.4
pcs.
M6
washer.
.
.4
pcs.
4.5
-
5.9
N-m
50
-
60
kgcm
3.6
-
4.3
ft-lb
RGV2800
and
41
00
M6 x
110
mm
bolt..
.4
pcs.
M6
spring washer.
.
.4
pcs.
I
Tightening
torque
1
4.5
-
5.9
N-rn
50
-
60
kg-cm
3.6
-
4.3
ft-lb
(3)
Attach the bushing over the lead wire drawn
out
from the rear cover. Press the smaller end
of
the bushing into the window
of
the rear
cover.
STATOR
COVER
Fig.
10-23
Fig.
10-24
t
~ ~~
Fig.
10-25
-
47-
