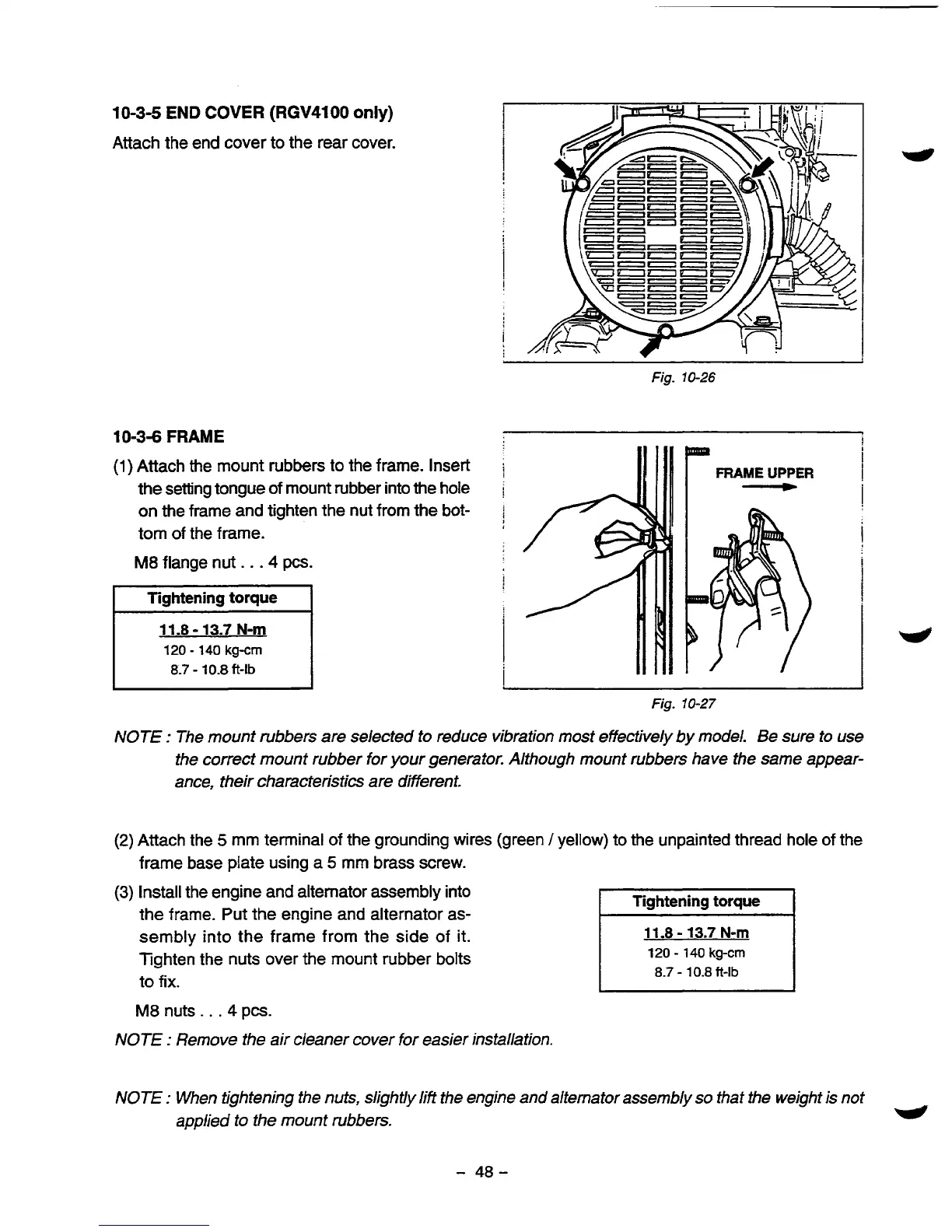

10-3-5
END
COVER
(RGV4100
only)
Attach the end cover to the rear cover.
10-3-6
FRAME
(1)
Attach the mount rubbers to the frame. Insert
the setting tongue of mount rubber into the hole
on
the frame and tighten the nut from the bot-
tom of the frame.
M8
flange nut.
.
.4
pcs.
120
-
140
kgcm
8.7
-
10.8
ft-lb
Fig.
70-26
Fig.
10-27
NOTE
:
The mount rubbers are selected to reduce vibration most effectively
by
model.
Be
sure to use
the correct mount rubber for your generator. Although mount rubbers have the same appear-
ance, their characteristics are different.
(2)
Attach the 5 mm terminal of the grounding wires (green /yellow) to the unpainted thread hole of the
frame base plate using a
5
mm brass screw.
(3)
Install the engine and alternator assembly into
the frame. Put the engine and alternator
as-
sembly into the frame from the side of
it.
Tighten the nuts over the mount rubber bolts
to
fix.
M8
nuts
.
.
.4
pcs.
NOTE
I
Remove the
air
cleaner cover for easier installation.
Tightening
torque
11.8
-
13.7
N-m
120
-
140
kgcm
8.7
-
10.8
ft-lb
NOTE
:
When tightening the nuts, slightly
lift
the engine and alternator assembly
so
that
the
weight is not
applied to the mount rubbers.
-
48-
