Robin RGV2800 Service Manual

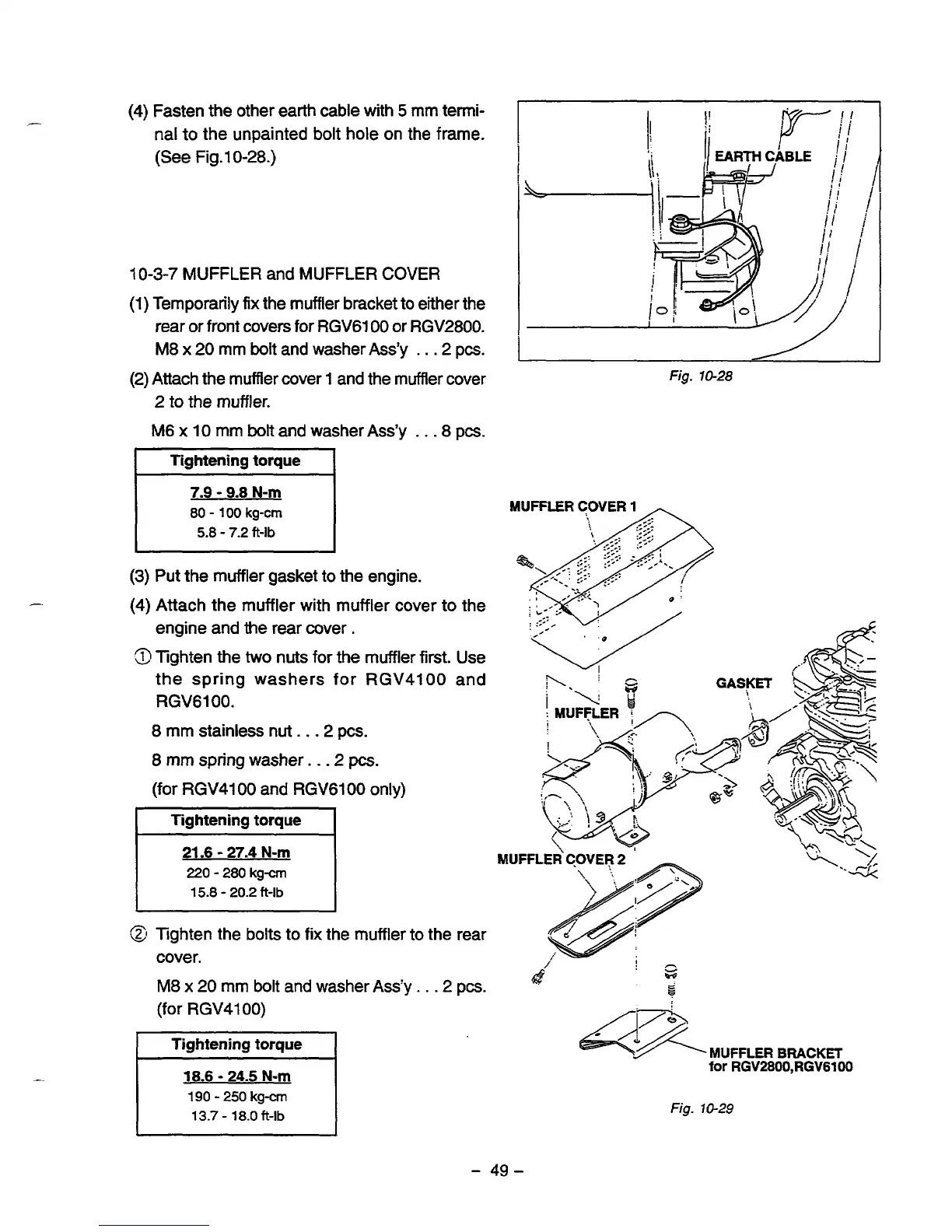

(4) Fasten the other earth cable with 5 mrn termi-
nal to the unpainted bolt hole on the frame.
(See Fig.10-28.)
10-3-7 MUFFLER and MUFFLER COVER
(1) Temporarily fix the muffler bracket to either the
rear or front covers for RGV6100 or RGV2800.
M8
x 20 mm bolt and washer Ass'y . . .2 pcs.
(2) Attach the muffler cover 1 and the muffler cover
2 to the muffler.
M6
x 10 mm bolt and washer Ass'y . . .8 pcs.
7.9 - 9.8 N-m
80
- 100 kg-crn
5.8 - 7.2 ft-lb
(3) Put the muffler gasket to the engine.
(4) Attach the muffler with muffler cover to the
3 Tighten the two nuts for the muffler first. Use
the spring washers for RGV4100 and
RGV6100.
8 mm stainless nut . . -2 pcs.
8
mm spring washer. - -2 pcs.
(for RGV4100 and RGV6100 only)
engine and the rear cover.
21.6 - 27.4 N-m
220 - 280 kg-
15.8 - 20.2 ft-lb
31 Tighten the bolts to fix the muffler to the rear
cover.
M8 x 20 mm bolt and washer Ass'y
. . .2 pcs.
(for RGV4100)
18.6 - 24.5 N-m
190 - 250 kg-crn
13.7 - 18.0 ft-lb
Fig. 70-28
MUFFLER COVER 1 A
MUFFLER BRACKET
for RGV2800,RGV6100
Fig. 10-29
- 49-
