INFORMATION ABOUT THE USE
102
6.9. PRESSER HEIGHT CHANGE
- Presser unit can be supplied with pneumatic (stroke 800) or mechanical cylinder version.
- The illustrations show the machine with the presser unit in the available versions.
- See tables to find the minimum height of the pallet to be wrapped in accordance with the version of the
presser installed on the machine.
Caution - warning
For “LP” versions, remove the load after the wrapping cycle

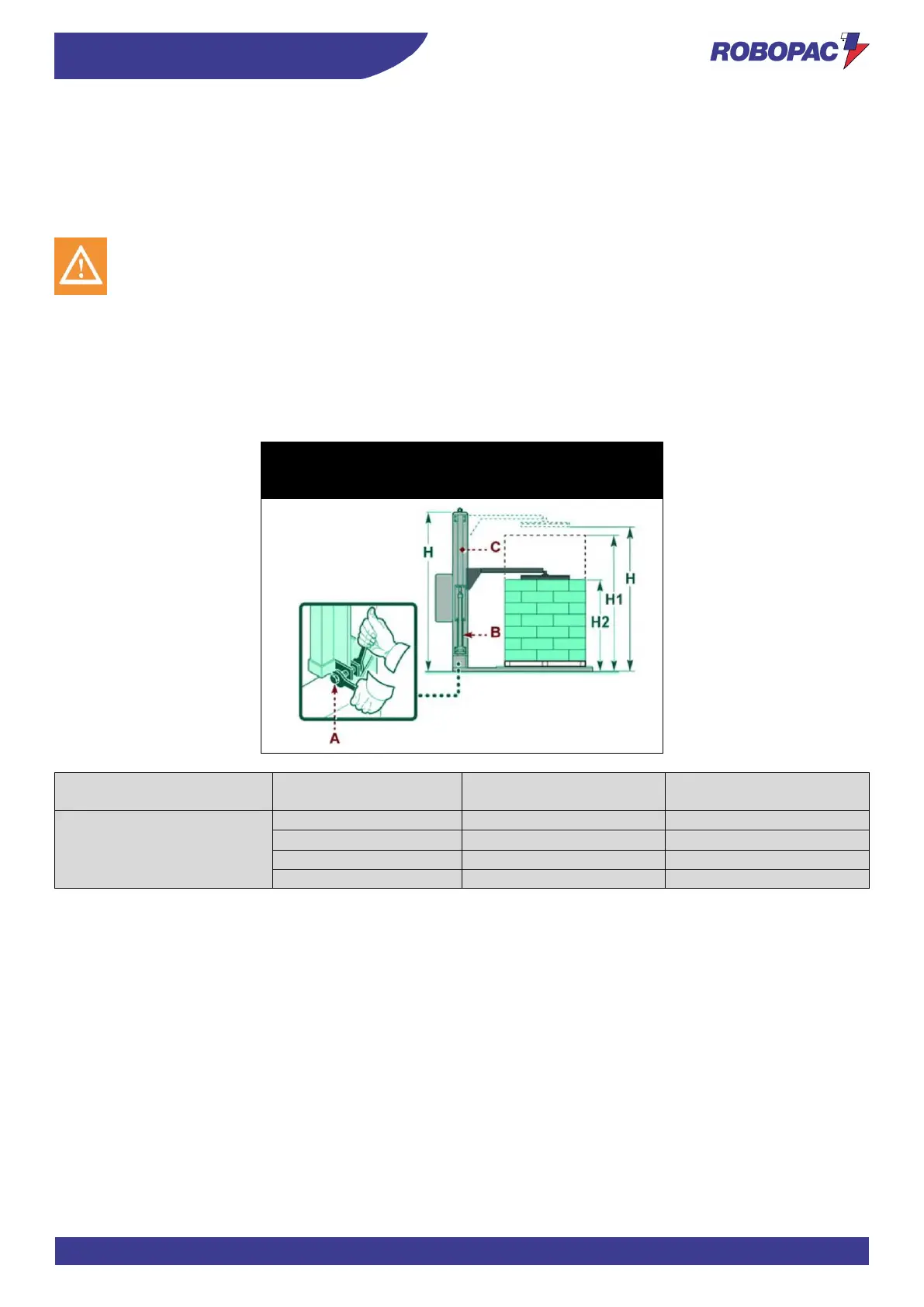

6.10. PNEUMATIC CYLINDER WITH ROD
1. Loosen the screw (A).
2. Adjust the height of the pneumatic cylinder (B) on the guide (C) according to the size of the product to be
wrapped.
3. Tighten the screw (A).
Masterplat PLUS
Masterplat PLUS LP
Masterplat PLUS TP3
Presser unit version
Slide shaft H (mm)
Arm in normal position H1
(mm)
Arm in normal position H2
(mm)
Pneumatic cylinder with rod
2350
2200
1400
2550
2400
1400
2950
2800
1400
3250
3100
1400
