ENG

INFORMATION ON HANDLING AND INSTALLATION

4.5.4.1. LOADING DIRECTION MODIFICATION

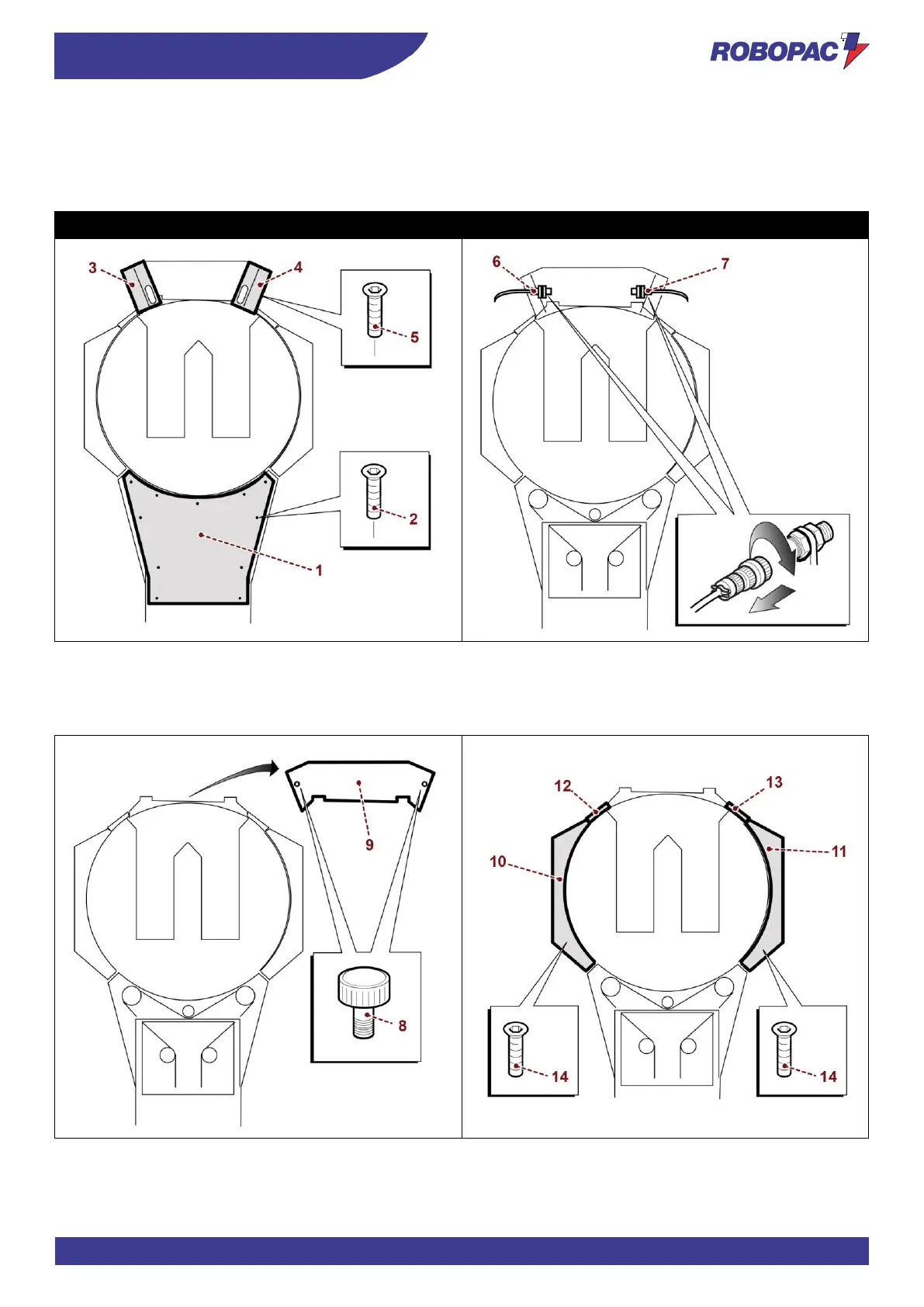

Remove the chain cover base (1) by loosening the fastening screws (2).

Remove the guards (3) and (4) that cover the loading ramp photocell, by loosening the fastening screws (5).

Disconnect the cable of photocell (6) and (7), for the emitter and the receiver.

Masterplat PLUS TP3 308-508-708

Insert the supporting knobs (8) and move the upstroke ramp (9).

Remove one of the two upper LH (10) or RH (11) guards and one of the two upper connection guards (12) or

(13), by loosening the fastening screws (14).
